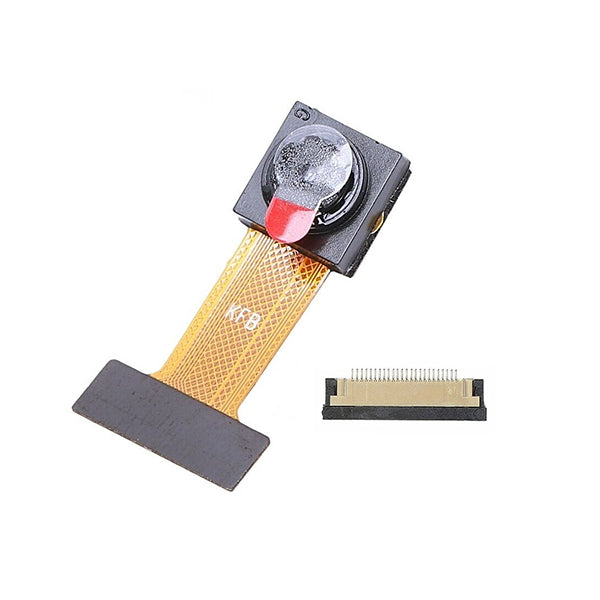

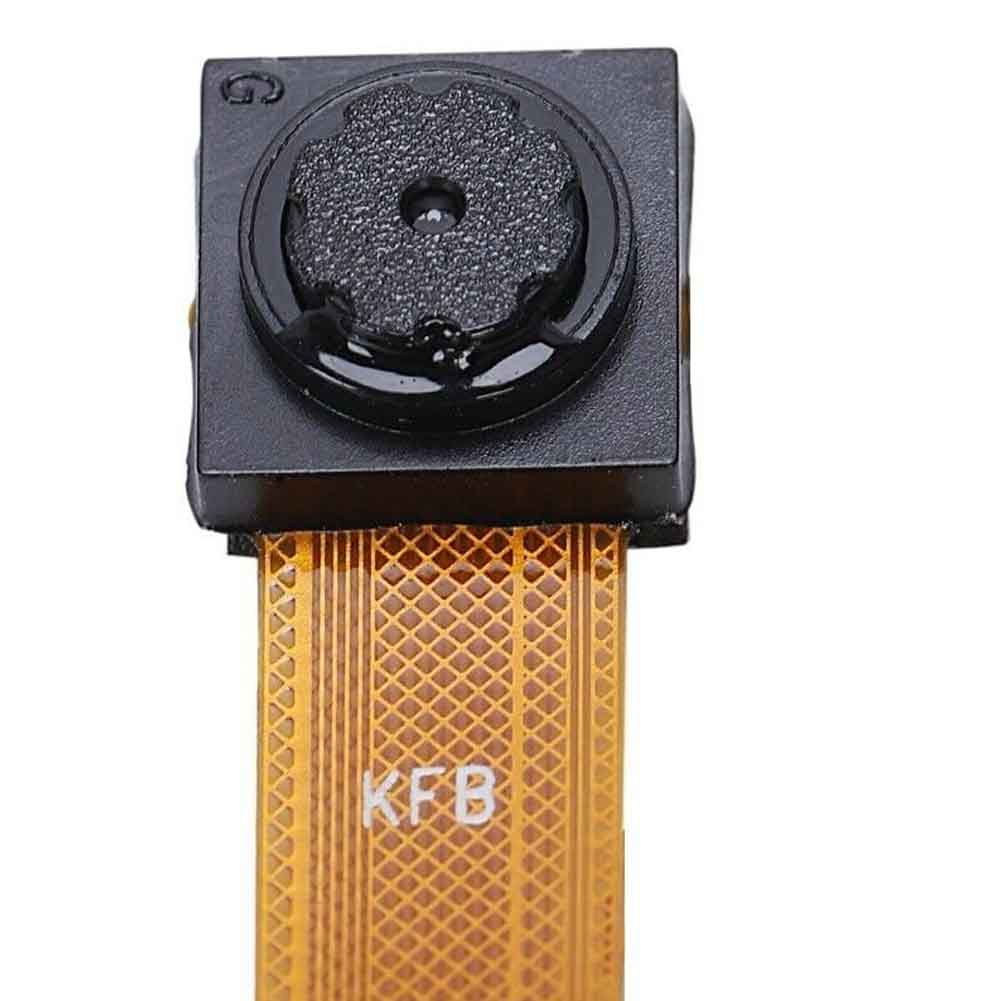

0.3MP OV7670 Camera Module with High Quality SCCB Connector

SKU: SUVD565Y9Q
The 0.3MP OV7670 Camera Module with High Quality SCCB Connector is a compact and affordable CMOS image sensor module designed for embedded vision and image-processing applications. Based on the popular OmniVision OV7670 sensor, this camera module provides VGA-resolution image capture and supports various image formats, making it an excellent choice for students, hobbyists, and developers working on microcontroller and FPGA-based...
Rs. 249.00
Rs. 299.00 Rs. 249.00
Save Rs. 50
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Sensor Type: CMOS Image Sensor
Sensor Model: OV7670
Resolution: 0.3 Megapixel (VGA)
Maximum Image Resolution: 640 × 480 pixels
Communication Interface: SCCB (Serial Camera Control Bus)
Data Output: Parallel 8-bit Image Data
Operating Voltage: 3.3V
Lens Type: Fixed Focus
Image Formats Supported:
RGB
YUV
Bayer RGB
Low Power Consumption
Compact PCB Design

Additional Resources

0.3MP OV7670 Camera Module with High Quality SCCB Connector.PDF

FAQ

1. What is the 0.3MP OV7670 Camera Module with High Quality SCCB Connector?

 The OV7670 Camera Module is a low-cost VGA camera module featuring a 0.3-megapixel CMOS image sensor. It uses the SCCB (Serial Camera Control Bus) interface for configuration and provides image data output for use with microcontrollers, FPGA boards, and embedded systems.

2. What image resolution does the OV7670 Camera Module support?

 The OV7670 supports a maximum VGA resolution of 640 × 480 pixels. It also supports lower resolutions such as QVGA (320 × 240) and QQVGA (160 × 120), making it suitable for applications where low bandwidth and processing requirements are important.

3. What is the purpose of the SCCB connector on the OV7670 module?

 The SCCB (Serial Camera Control Bus) connector is used to configure and control the camera's internal registers. Through SCCB communication, users can adjust settings such as brightness, contrast, color balance, image format, and resolution.

4. Which development platforms can interface with the OV7670 Camera Module?

 The OV7670 can be interfaced with various platforms, including:

  • Arduino (with external memory support)
  • STM32 microcontrollers
  • ESP32 development boards
  • FPGA development boards
  • ARM-based embedded systems

Its parallel data output makes it suitable for a wide range of image-processing projects.

5. What are the common applications of the OV7670 Camera Module?

 The OV7670 is commonly used in:

  • Image capture projects
  • Robot vision systems
  • Object detection experiments
  • Surveillance prototypes
  • Embedded vision applications
  • Educational and research projects involving digital image processing

Its compact size, low power consumption, and affordable price make it popular among students, hobbyists, and developers.

View full product details

The 0.3MP OV7670 Camera Module with High Quality SCCB Connector is a compact and affordable CMOS image sensor module designed for embedded vision and image-processing applications. Based on the popular OmniVision OV7670 sensor, this camera module provides VGA-resolution image capture and supports various image formats, making it an excellent choice for students, hobbyists, and developers working on microcontroller and FPGA-based projects.

The module features a high-quality SCCB (Serial Camera Control Bus) interface that allows users to configure camera parameters such as brightness, contrast, color balance, image size, and output format. Its low power consumption and compact design make it suitable for portable and battery-powered applications.
