SMD Components

The 3×4×2.5mm 4-Pin Folded SMD Tactile Switch is a compact surface-mount momentary switch designed for reliable user input in space-constrained electronic devices. Featuring a 4-pin folded terminal design, this switch provides enhanced mechanical stability and secure PCB attachment, making it ideal for high-density circuit boards and automated assembly processes. Operating...

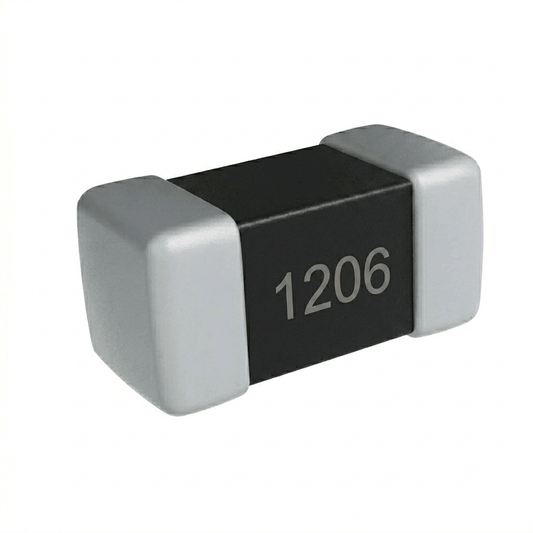

The 2.2K Ohm 1206 Package 1/4W SMD Resistor is a reliable surface-mount resistor designed for a wide variety of electronic applications requiring accurate current control and voltage regulation. With a resistance value of 2,200 Ohms (2.2kΩ), it is commonly used in LED current limiting, pull-up and pull-down resistor networks, voltage...

The 0 Ohm 5% SMD Resistor 0805 is a surface-mount component designed to function as a PCB jumper or electrical bridge rather than a conventional current-limiting resistor. Although referred to as a resistor, it has a nominal resistance of 0Ω and is primarily used to connect different sections of a...

The 47 Ohm (47R) 1% SMD Resistor 0805 is a precision surface-mount resistor designed to provide accurate current control and stable electrical performance in a wide range of electronic circuits. With a resistance value of 47Ω, a ±1% tolerance, and the industry-standard 0805 (2012 Metric) package, this resistor is ideal...

The 220 Ohm (220R) 1% SMD Resistor is a precision surface-mount resistor designed for reliable current control and voltage regulation in modern electronic circuits. With a resistance value of 220Ω and a ±1% tolerance, this resistor delivers accurate and stable performance, making it suitable for applications where precision is important....

The 22K Ohm (223) 1% SMD Resistor 0805 is a precision surface-mount resistor designed for use in a wide range of electronic circuits requiring accurate and stable resistance values. With a resistance of 22,000 Ohms (22kΩ), a ±1% tolerance, and the industry-standard 0805 (2012 Metric) package, this resistor is ideal...

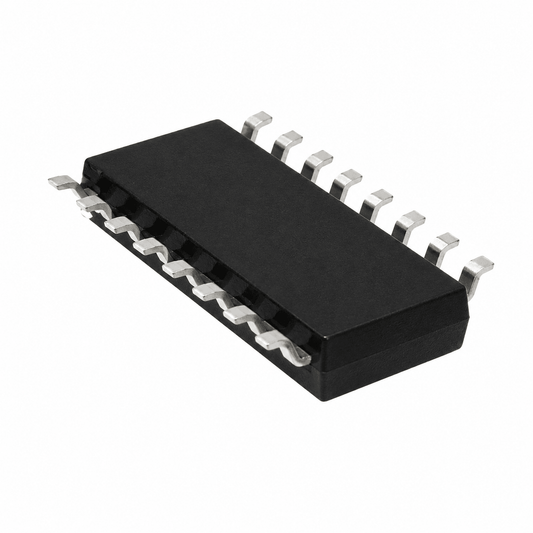

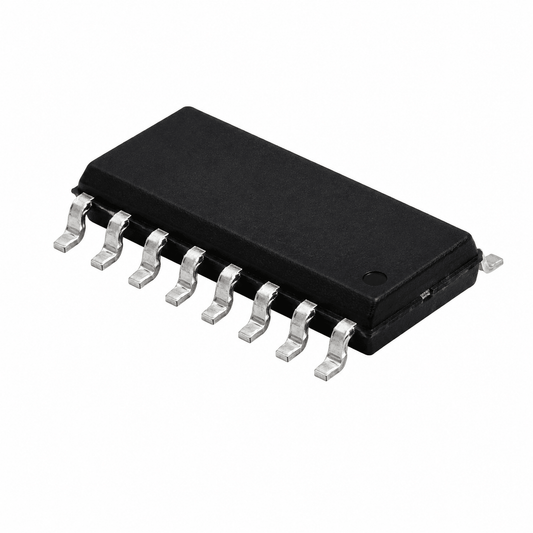

The 74HC595 from NXP is a high-speed CMOS 8-bit Serial-In/Parallel-Out (SIPO) Shift Register with an integrated storage register and tri-state outputs. It is widely used to expand the digital output capability of microcontrollers by converting serial data into eight parallel output lines. This allows designers to control multiple LEDs, displays,...

The TM1650 is a compact and efficient 4-digit LED display driver IC designed to control common cathode 7-segment LED displays using a simple two-wire serial communication interface. It integrates display scanning, segment driving, brightness control, and key scanning functions into a single chip, significantly reducing the number of components and...

The 74HC165 is a high-speed CMOS 8-bit Parallel-In/Serial-Out (PISO) Shift Register designed to efficiently convert parallel digital inputs into a serial data stream. It is widely used in embedded systems and digital electronics to increase the number of input channels while minimizing the number of microcontroller GPIO pins required. Featuring...

The 68 Ohm 1206 Package 1/4W SMD Resistor is a high-quality surface-mount resistor designed for reliable performance in a wide range of electronic circuits. With a resistance value of 68Ω, it is commonly used for current limiting, signal termination, impedance matching, RC filtering, and general-purpose circuit protection. Its low resistance...

The 47K Ohm 1206 Package 1/4W SMD Resistor is a reliable surface-mount resistor designed for a wide variety of electronic applications, including voltage division, pull-up and pull-down networks, transistor biasing, RC timing circuits, and signal conditioning. With a resistance value of 47,000 Ohms (47kΩ), it provides high resistance while allowing...

The 47 Ohm 1206 Package 1/4W SMD Resistor is a reliable surface-mount resistor designed for a wide variety of electronic applications, including current limiting, signal termination, impedance matching, filtering, and circuit protection. With a resistance value of 47Ω, it is commonly used in analog and digital circuits where controlled current...
