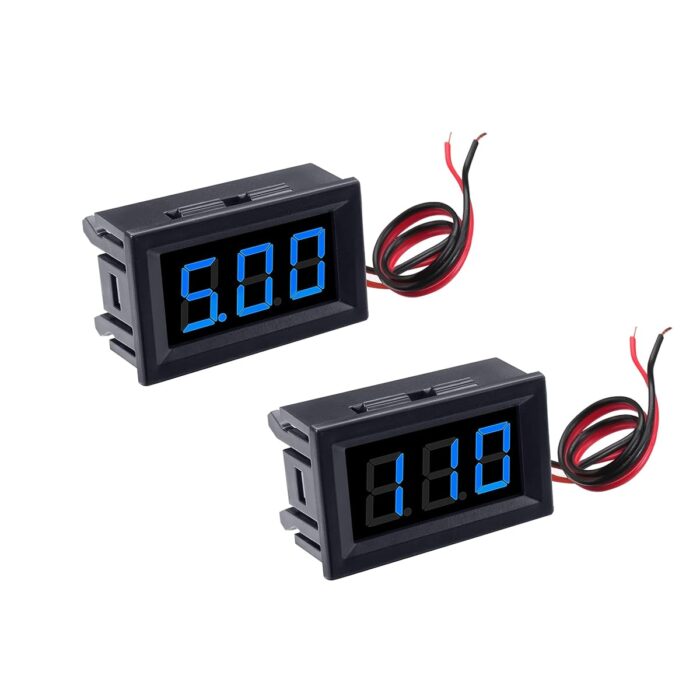

0.56inch Three-Wires Blue LED Voltmeter (0-100VDC)

SKU: WCJGESKQUN
The 0.56 Inch Three-Wire Blue LED Digital Voltmeter is a compact and highly accurate voltage monitoring module designed for measuring DC voltages from 0V to 100V. Featuring a bright blue 3-digit LED display, the module provides clear, real-time voltage readings for a wide range of electronic, automotive, industrial, and battery-powered applications. The three-wire design allows the voltmeter to be powered...
Rs. 239.00
Rs. 249.00 Rs. 239.00
Save Rs. 10
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Product Type: Digital DC Voltmeter Module
Display Type: 7-Segment LED Display
Display Color: Blue
Display Size: 0.56 Inch
Measurement Range: 0V – 100V DC
Operating Voltage: 4.5V – 30V DC
Measurement Accuracy: ±1% (Typical)
Resolution: 0.1V
Display Digits: 3 Digits
Refresh Rate: Approximately 200ms
Wiring Type: Three-Wire
Current Consumption: Less than 20mA
Input Impedance: High Input Impedance
Operating Temperature: -10°C to +65°C
Storage Temperature: -20°C to +85°C
Mounting Type: Panel Mount
Module Dimensions: Approximately 48mm × 29mm × 22mm
Display Window Size: Approximately 23mm × 14mm
Weight: Approximately 10g

Additional Resources

LED Voltmeter.PDF

FAQ

1. What is the 0.56 Inch Blue LED Digital Voltmeter used for?

It is used to measure and display DC voltage levels in batteries, power supplies, solar systems, automotive electronics, industrial equipment, and electronic projects.

2. What voltage range can this voltmeter measure?

The module can measure DC voltages from 0V to 100V.

3. Why does the voltmeter use a three-wire connection?

The three-wire design allows the display module to be powered separately from the measured voltage source, improving flexibility and measurement accuracy.

4. What color is the display on this voltmeter?

The module features a bright blue 0.56-inch LED display that provides clear and easy-to-read voltage readings.

5. Can this voltmeter be used for battery monitoring applications?

Yes, it is commonly used for monitoring battery voltages in solar systems, electric vehicles, UPS systems, power banks, and other DC-powered equipment.

View full product details

The 0.56 Inch Three-Wire Blue LED Digital Voltmeter is a compact and highly accurate voltage monitoring module designed for measuring DC voltages from 0V to 100V. Featuring a bright blue 3-digit LED display, the module provides clear, real-time voltage readings for a wide range of electronic, automotive, industrial, and battery-powered applications.

The three-wire design allows the voltmeter to be powered independently from the measured voltage source, enabling accurate voltage measurement even when monitoring voltages different from the module's operating voltage. Its compact panel-mount design, low power consumption, and easy wiring make it an ideal choice for power supplies, battery monitoring systems, solar energy setups, electric vehicles, and DIY electronics projects.

Key Features

  • Bright 0.56-inch blue LED digital display
  • Measures DC voltages from 0V to 100V
  • Three-wire independent power and measurement design
  • High measurement accuracy and stability
  • Low power consumption
  • Easy installation and wiring
  • Compact panel-mount module
  • Fast voltage display refresh rate
  • Clear visibility in various lighting conditions
  • Suitable for battery and power supply monitoring
  • Durable and reliable construction
  • Ideal for automotive, industrial, and DIY applications
  • Wide operating voltage compatibility
