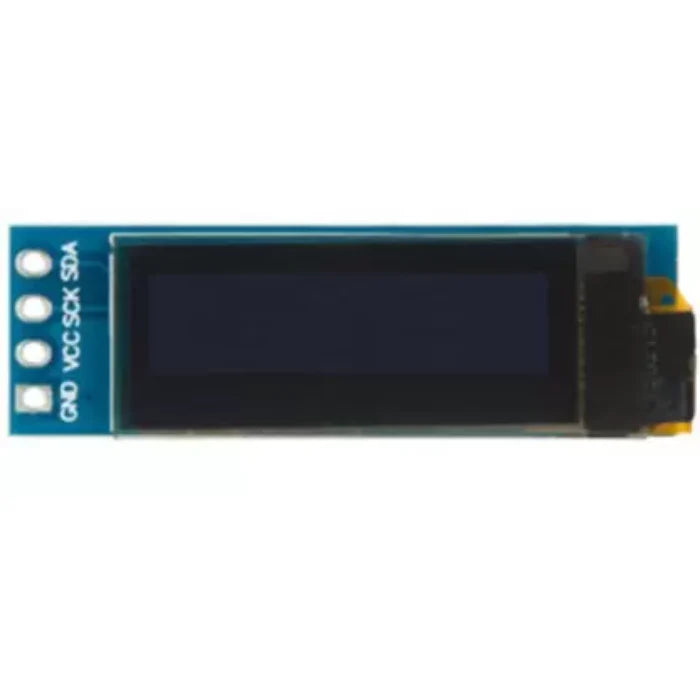

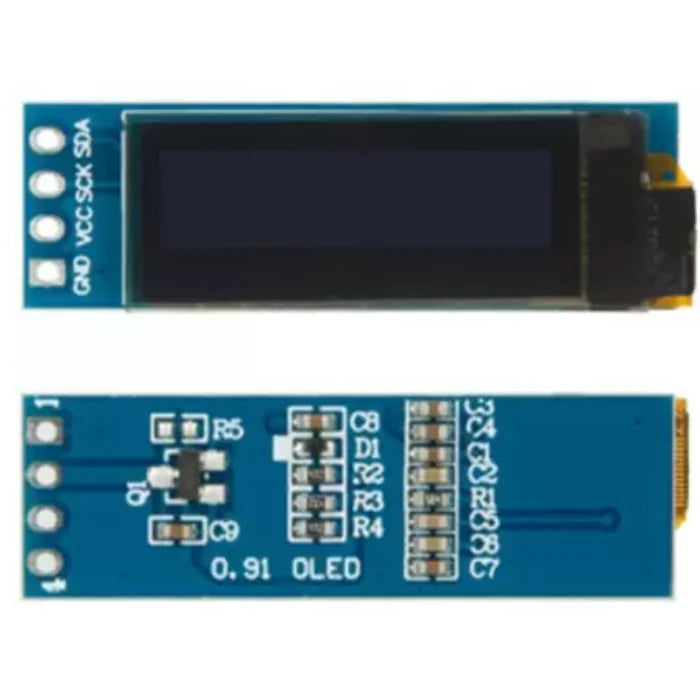

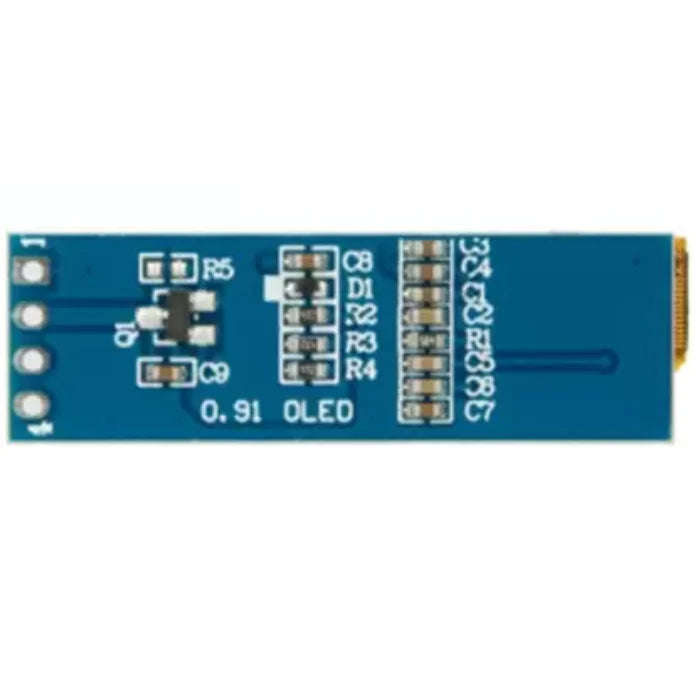

Blue OLED Display Module 0.91 inch

SKU: Z3FTPNII61
★★★★ ★ ★
4.9 (80 reviews)
This 0.91 inch Blue OLED Display Module has a resolution of 128x32 pixels. They are much thinner than LCD displays with good brightness and produce more accurate and true colors. This OLED Display Module is very compact and will enhance your Arduino project's user interface experience. This is an I2C OLED display, The I2C (also known as IIC) serial interface is used to...
Rs. 189.00
Rs. 199.00 Rs. 189.00
Save Rs. 10 Incl. GST (No Hidden Charges)
Sold out
Tax included. Shipping calculated at checkout.
COD Available
Easy Return
Quality Assured
12 people are viewing this right now
Secure Checkout With
Bulk Orders Available
Special Pricing for Schools, Colleges & Businesses
Contact Us
Free Delivery For All Prepaid Orders Above ₹999
Shop for ₹999 or more and get FREE delivery
across India.
FREE
View full product details
Same Day Dispatch Order before 2PM
Pan India Delivery Shipping in 24-48H
Secure Packaging Safe & Damage Free
Dedicated Support Expert Assistance

This 0.91 inch Blue OLED Display Module has a resolution of 128x32 pixels. They are much thinner than LCD displays with good brightness and produce more accurate and true colors. This OLED Display Module is very compact and will enhance your Arduino project's user interface experience. This is an I2C OLED display, The I2C (also known as IIC) serial interface is used to connect this display to Arduino.

OLEDs are the future of displays because they have some of the most significant advantages over both conventional display technologies, LCDs and LEDs. The most appealing aspect of using OLED displays is that they do not require a backlight like conventional LCD/LED screens. Electroluminescence (EL) is a property of organic materials that causes them to "glow" when stimulated by a current or an electric field. The most energy-efficient displays ever!!!

When powered by a DC 2.8V supply, the 0.91 inch 128x32 Blue OLED Display Module produces White text on a Blue background with excellent contrast. The OLED Display Modules have a very wide viewing angle as well.

Key Features

  • 0.91-inch monochrome OLED display
  • Blue display color
  • 128 × 32 pixel resolution
  • SSD1306 display controller
  • I2C (IIC) serial communication interface
  • High contrast and wide viewing angle (>160°)
  • Self-emissive OLED technology (no backlight required)
  • Low power consumption
  • Operates on both 3.3V and 5V systems
  • Compact and lightweight design
  • Fast display refresh
  • Easy interfacing with Arduino, ESP32, STM32, Raspberry Pi, AVR, and PIC
  • Compatible with Adafruit GFX and SSD1306 libraries
  • Ideal for battery-powered applications

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Display Type: Monochrome OLED Display Module
Display Size: 0.91 Inch
Display Color: Blue
Controller IC: SSD1306
Resolution: 128 × 32 Pixels
Interface: I2C (IIC)
Operating Voltage: 3.3V to 5V DC
Logic Level: 3.3V / 5V Compatible
Viewing Angle: Greater than 160°
Display Technology: OLED (Organic Light Emitting Diode)
Backlight: Not Required (Self-Emissive Display)
Communication Speed: Standard I2C
Power Consumption: Approximately 0.06W (Typical)
Operating Temperature: -20°C to +60°C
Storage Temperature: -30°C to +70°C
PCB Dimensions: Approximately 38mm × 12mm
Active Display Area: Approximately 22.38mm × 5.58mm
Weight: Approximately 5g
Mounting Type: Through-Hole Pin Header
Compatibility: Arduino UNO, Nano, Mega, ESP32, STM32, Raspberry Pi, PIC, AVR, 8051 and other I2C-compatible microcontrollers

Additional Resources

0.91 inch Blue OLED Display Module.PDF

FAQ

1. What is the 0.91 Inch Blue OLED Display Module used for?

The module is used to display text, graphics, icons, sensor readings, menus, and status information in embedded systems, IoT devices, robotics, wearable electronics, and portable instruments.

2. Can the 0.91 Inch OLED Display be used with Arduino and ESP32?

Yes. The display is fully compatible with Arduino, ESP32, STM32, Raspberry Pi, AVR, PIC, and other microcontrollers that support the I2C communication protocol.

3. Does the OLED display require a backlight?

No. OLED technology is self-emissive, meaning each pixel generates its own light. This provides excellent contrast, deeper blacks, and lower power consumption compared to traditional LCD displays.

4. What is the default I2C address of the OLED module?

Most SSD1306-based 0.91-inch OLED modules use the default I2C address 0x3C. Some variants support 0x3D through hardware configuration.

5. Which Arduino libraries support this OLED display?

The display is commonly supported by the Adafruit SSD1306 and Adafruit GFX libraries, as well as other SSD1306-compatible libraries, making it easy to develop graphical applications using the Arduino IDE.
