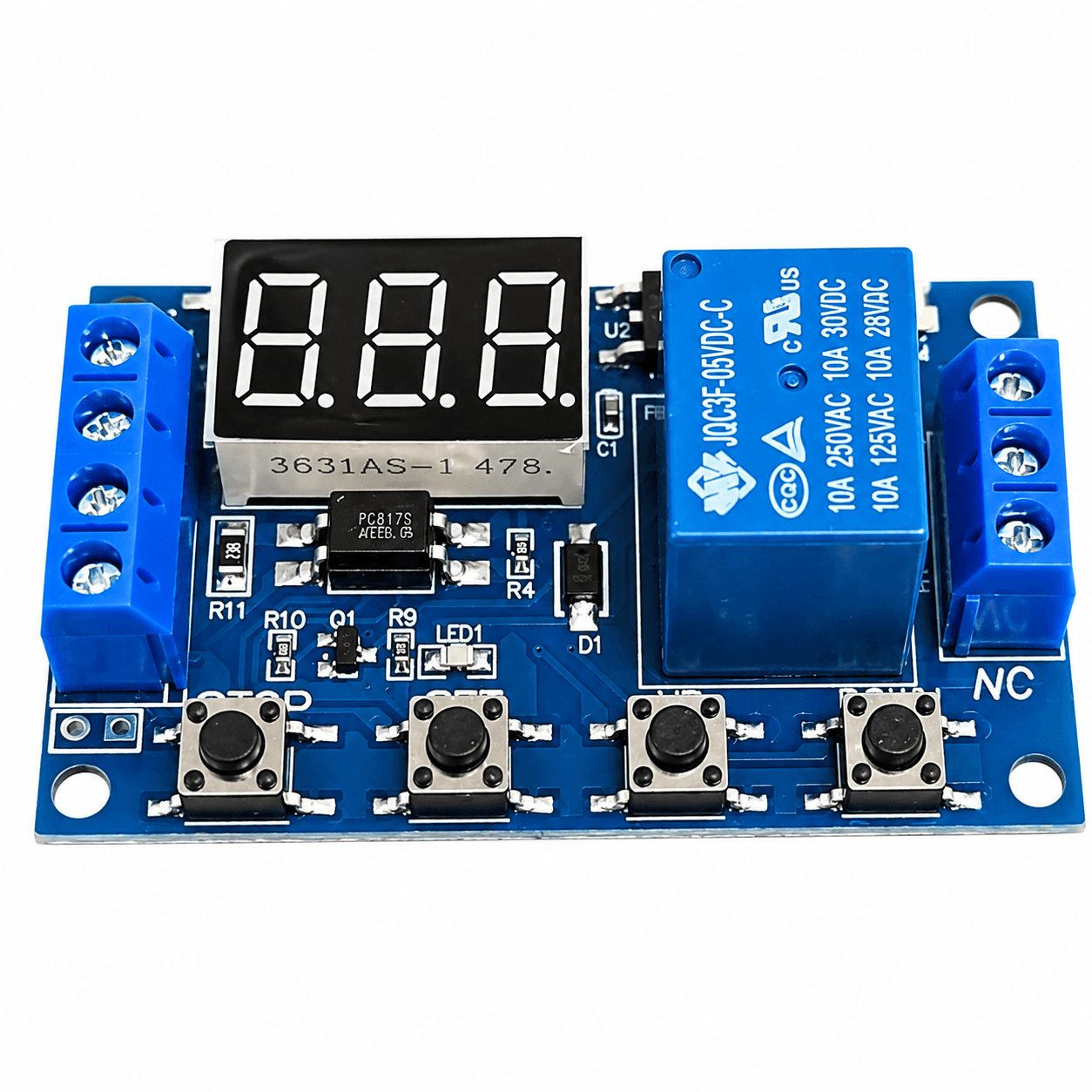

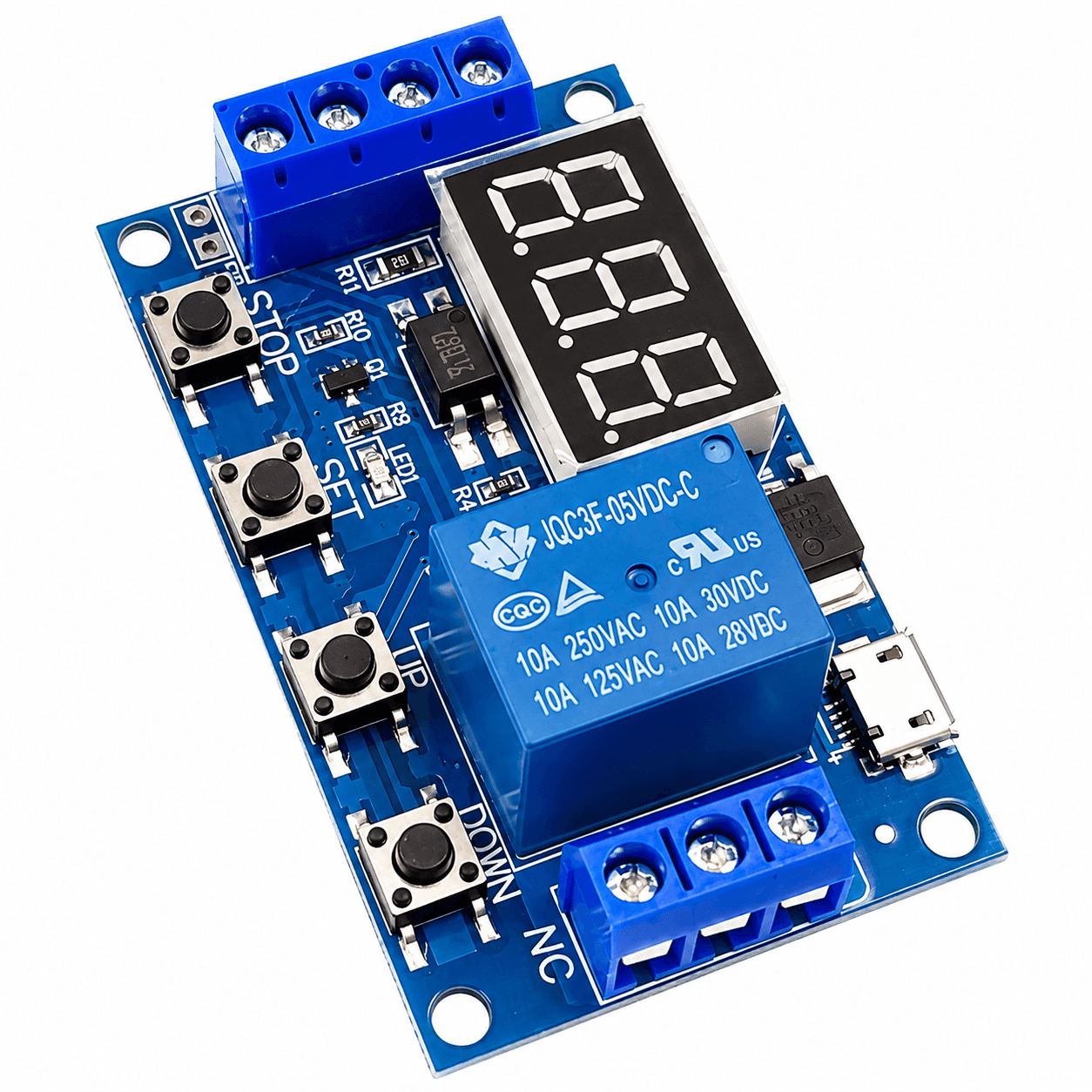

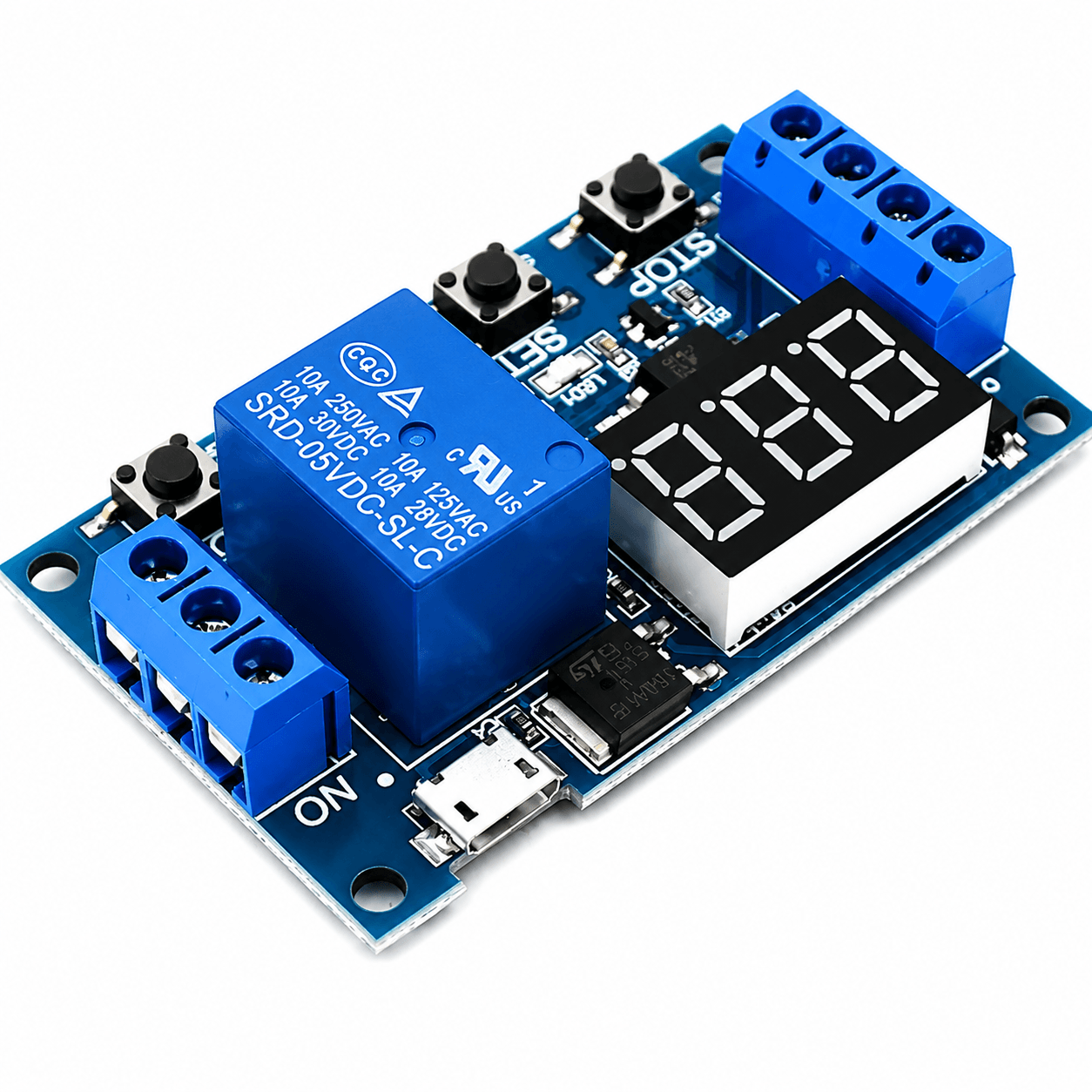

1-Channel Relay Module with Adjustable Timing Cycle and LED Display

SKU: D4LE4RR6GA
★★★★ ★ ★
4.5 (84 reviews)
The 6-30V 1-Channel Relay Module with Adjustable Timing Cycle and LED Display is a multifunction programmable timer relay module designed for delayed switching, automatic ON/OFF cycling, pulse control, and timed equipment operation. The module combines a programmable timing controller, single relay output, push-button controls, and an LED display in one compact board. The module accepts a wide 6V to 30V...
Rs. 139.00
Rs. 149.00 Rs. 139.00
Save Rs. 10
Sold out
Tax included. Shipping calculated at checkout.
COD Available
Easy Return
Quality Assured
12 people are viewing this right now
Secure Checkout With
For Bulk Order Contact Us View full product details
Same Day Dispatch Order before 2PM
Pan India Delivery Shipping in 24-48H
Secure Packaging Safe & Damage Free
Dedicated Support Expert Assistance

The 6-30V 1-Channel Relay Module with Adjustable Timing Cycle and LED Display is a multifunction programmable timer relay module designed for delayed switching, automatic ON/OFF cycling, pulse control, and timed equipment operation. The module combines a programmable timing controller, single relay output, push-button controls, and an LED display in one compact board.

The module accepts a wide 6V to 30V DC power input and can also be powered through the onboard Micro USB 5V input on common versions. Its onboard LED display provides clear timing and mode information, while the push buttons allow users to configure delay time, relay ON duration, relay OFF duration, and cycle count without requiring external programming equipment.

The module commonly supports multiple operating modes such as delayed ON, delayed OFF, timed pulse output, infinite cyclic operation, and limited-cycle operation. Depending on the selected mode, the relay can be triggered manually or through an external signal input and then operate according to the programmed timing sequence.

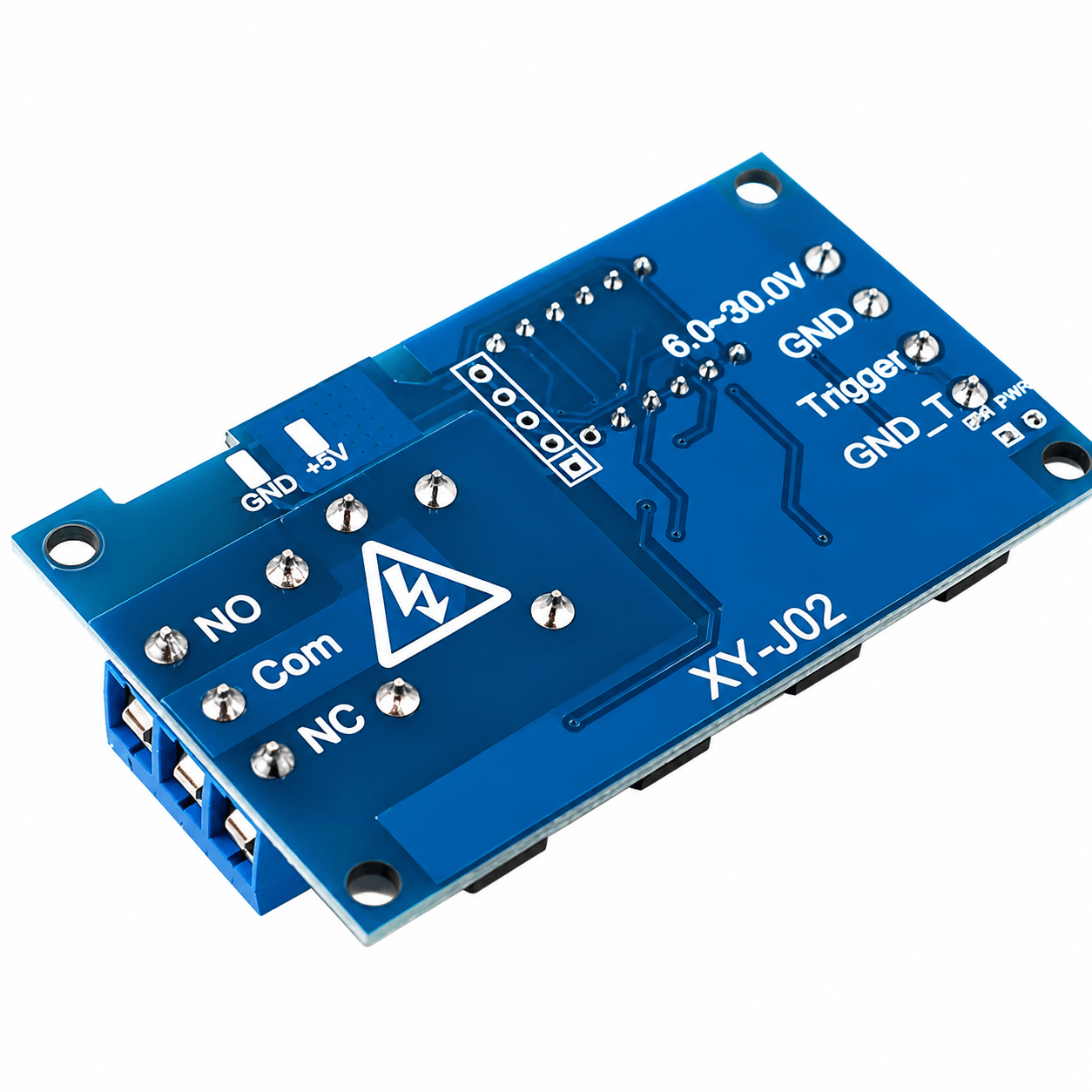

The onboard relay provides COM, NO, and NC contacts, allowing the module to switch suitable AC or DC loads within the relay's contact ratings. It is widely used for motor control, pump timing, lighting automation, battery charging control, solenoid operation, ventilation systems, irrigation equipment, industrial automation prototypes, and DIY timer projects.

Key Features

  • Wide 6V to 30V DC operating input range
  • 5V Micro USB power input on common versions
  • Single-channel relay output
  • Programmable timing control
  • Adjustable relay ON time
  • Adjustable relay OFF time
  • Supports delayed switching operation
  • Supports cyclic ON/OFF operation
  • Supports finite and infinite cycle modes
  • Multiple programmable operating modes
  • LED digital display for timing and settings
  • Push-button parameter configuration
  • External trigger input support
  • Relay status indication
  • Parameter memory retention after power loss
  • NO, NC, and COM relay contacts
  • Suitable for AC and DC load switching
  • Compact PCB module design
  • Suitable for automation and timer-control applications

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Module Type: Programmable Timer Relay Module
Number of Relay Channels: 1
Operating Voltage: 6V to 30V DC
Alternative Power Input: 5V Micro USB on Common Versions
Control Type: Digital Programmable Timing Controller
Display Type: LED Digital Display
Relay Type: SPDT Electromechanical Relay
Relay Output Contacts: NO, NC and COM
Trigger Input: External Signal Trigger Input
Trigger Voltage Range: Module Version Dependent
Timing Range: Typically 0.1 Seconds to 999 Minutes, Depending on Decimal Point Configuration and Operating Mode
Timing Resolution: 0.1 Second, 1 Second, or 1 Minute, Depending on Selected Range
Cycle Operation: Supported
Cycle Count Setting: Typically 1 to 999 Cycles on Common Versions
Infinite Cycle Operation: Supported
Parameter Storage: Non-Volatile Memory
Relay Contact Rating: Typically Up to 10A at 250VAC for Resistive Loads
DC Contact Rating: Typically Up to 10A at 30VDC for Resistive Loads
Control Buttons: SET, UP and DOWN on Common Versions
Relay Status Indicator: LED
Display Function: Mode and Timing Parameter Display
Output Isolation: Relay Contact Isolation from Control Circuit
Mounting Type: PCB Module with Mounting Holes
Typical Module Dimensions: Approximately 63mm × 38mm × 17mm, Depending on Version
Operating Temperature: Approximately -20°C to +60°C, Module Dependent
Compatibility: DC Power Systems, Sensors, Switches, Microcontrollers, PLC Outputs and Automation Control Circuits

Additional Resources

Relay Module.PDF

FAQ

1. What is the 6-30V Programmable Timer Relay Module used for?

The module is used for delayed switching, automatic ON/OFF timing, cyclic operation, pulse control, and scheduled equipment operation. It is suitable for controlling pumps, motors, lights, fans, solenoid valves, chargers, and other electrical loads.

2. What is the operating voltage range of this timer relay module?

The module typically operates from a 6V to 30V DC power supply. Common versions also include a Micro USB connector that allows the control circuit to be powered from a regulated 5V source.

3. Can the relay module repeatedly switch a device ON and OFF automatically?

Yes. The module supports cyclic operation, allowing separate relay ON and OFF times to be configured. Common versions support both a selected number of cycles and continuous infinite cycling.

4. Does the module save the programmed timing settings after power is removed?

Yes. Common versions use non-volatile memory to retain programmed timing parameters and operating modes after the power supply is disconnected.

5. Can this module directly control high-power motors and pumps?

The onboard relay can switch loads within its specified contact ratings, but motors and pumps can have high starting currents and inductive switching stress. For high-power loads, the module should be used to control a properly rated contactor, motor starter, or external power relay.
