10 Ohm 1% SMD Resistor 0805

SKU: E1YIONX8U5

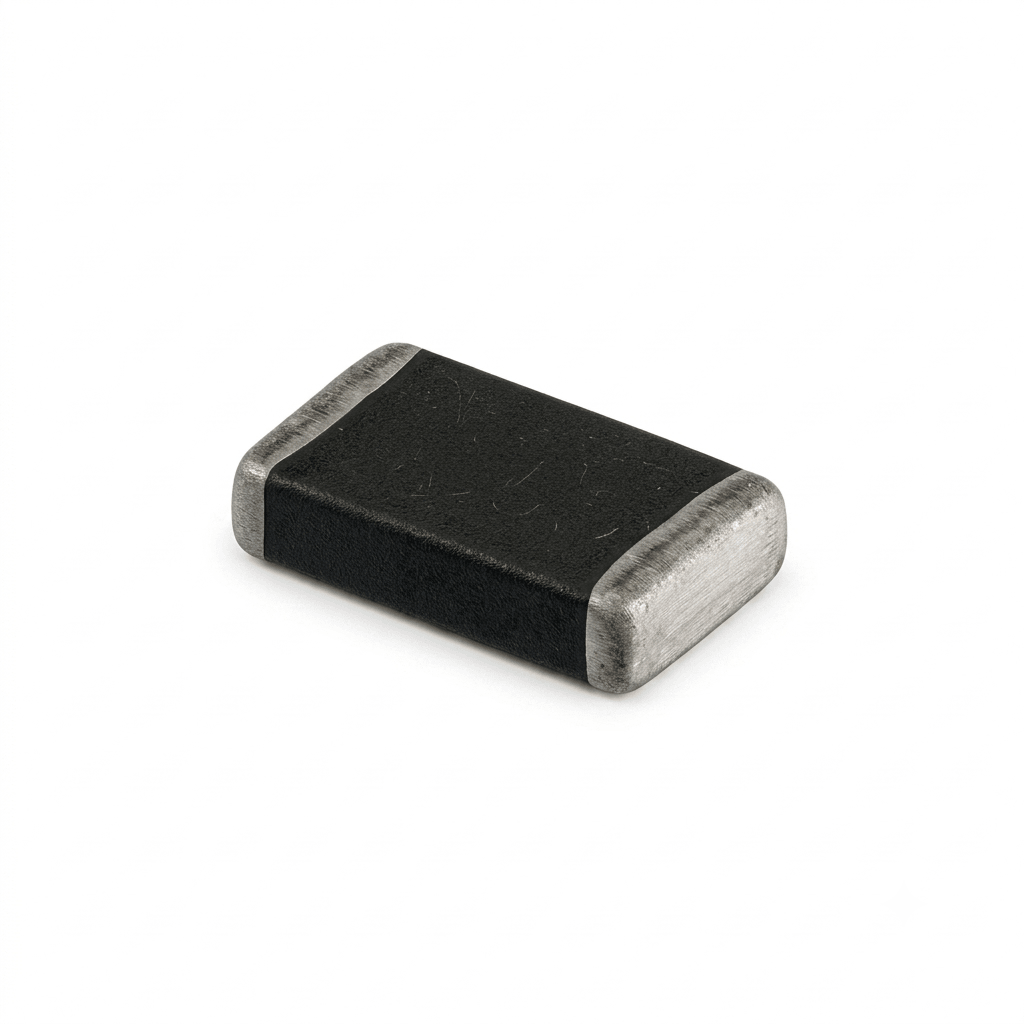

The 10 Ohm 1% SMD Resistor 0805 is a compact surface-mount resistor designed for applications requiring precise current control and reliable circuit protection. With a resistance value of 10Ω and a tight tolerance of ±1%, this resistor delivers accurate and stable performance in a wide variety of electronic circuits. Its industry-standard 0805 package makes it suitable for modern PCB designs...
Rs. 5.00
Rs. 7.00 Rs. 5.00
Save Rs. 2
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Resistance: 10Ω
Tolerance: ±1%
Power Rating: 1/8W (0.125W) Typical
Package Size: 0805
Dimensions: Approximately 2.0 mm × 1.25 mm
Mounting Type: Surface Mount Device (SMD)
Technology: Thick Film
Operating Temperature Range: Typically -55°C to +155°C
Temperature Coefficient: Manufacturer Dependent

Additional Resources

10 Ohm 1% SMD Resistor 0805.PDF

FAQ

1. What is a 10 Ohm 1% SMD 0805 resistor?

A 10 Ohm 1% SMD 0805 resistor is a surface-mount resistor with a resistance value of 10Ω and a tolerance of ±1%. It is commonly used for current limiting, current sensing, filtering, and circuit protection applications in electronic devices.

2. What does the 1% tolerance mean for a 10 Ohm resistor?

A 1% tolerance indicates that the actual resistance value can vary by ±1% from its nominal value. For a 10Ω resistor, the resistance will typically fall between:

  • Minimum: 9.9Ω
  • Maximum: 10.1Ω

This ensures accurate and predictable circuit performance.

3. What are the dimensions of an 0805 SMD resistor?

The 0805 package size measures approximately:

  • Length: 2.0 mm
  • Width: 1.25 mm

This package provides a good balance between compact size and ease of assembly for PCB applications.

4. What are the common applications of a 10 Ohm SMD resistor?

A 10Ω resistor is commonly used in:

  • Current limiting circuits
  • LED driver circuits
  • Current sensing applications
  • Power supply filtering
  • Motor control circuits
  • Signal conditioning circuits
  • Embedded and microcontroller-based systems

5. What is the typical power rating of a 10 Ohm 0805 resistor?

Most 0805 SMD resistors have a typical power rating of 1/8W (0.125W). Designers should ensure that the resistor operates within this power limit to avoid overheating and maintain long-term reliability.

View full product details

The 10 Ohm 1% SMD Resistor 0805 is a compact surface-mount resistor designed for applications requiring precise current control and reliable circuit protection. With a resistance value of 10Ω and a tight tolerance of ±1%, this resistor delivers accurate and stable performance in a wide variety of electronic circuits. Its industry-standard 0805 package makes it suitable for modern PCB designs where space efficiency and ease of assembly are important.

Manufactured using thick-film technology, the resistor offers excellent reliability, consistent electrical characteristics, and compatibility with both automated production and manual soldering processes.

Features

  • Resistance Value: 10Ω
  • Tolerance: ±1%
  • Package Type: 0805 SMD
  • Compact Surface-Mount Design
  • High Accuracy and Stability
  • Excellent Long-Term Reliability
  • Suitable for Automated PCB Assembly
  • RoHS Compliant
  • Low Cost and Widely Available
  • Ideal for Consumer, Industrial, and Educational Electronics
