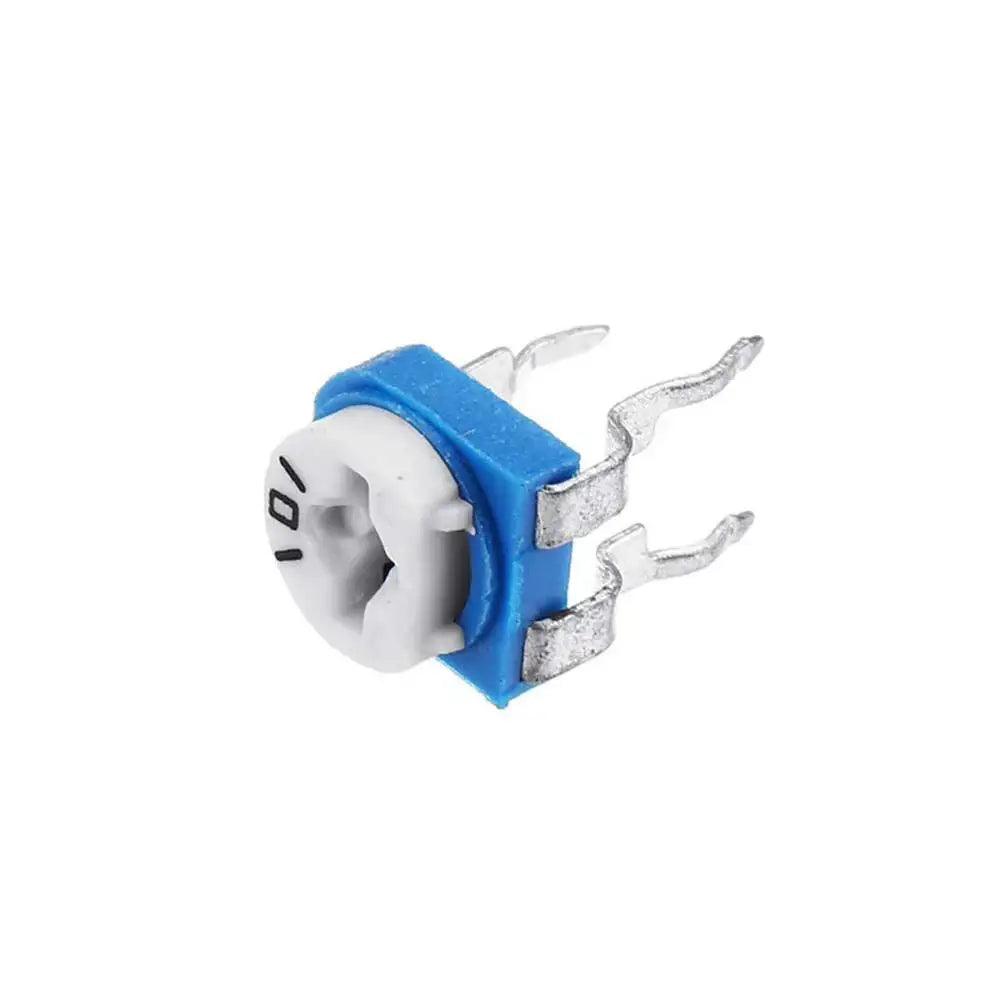

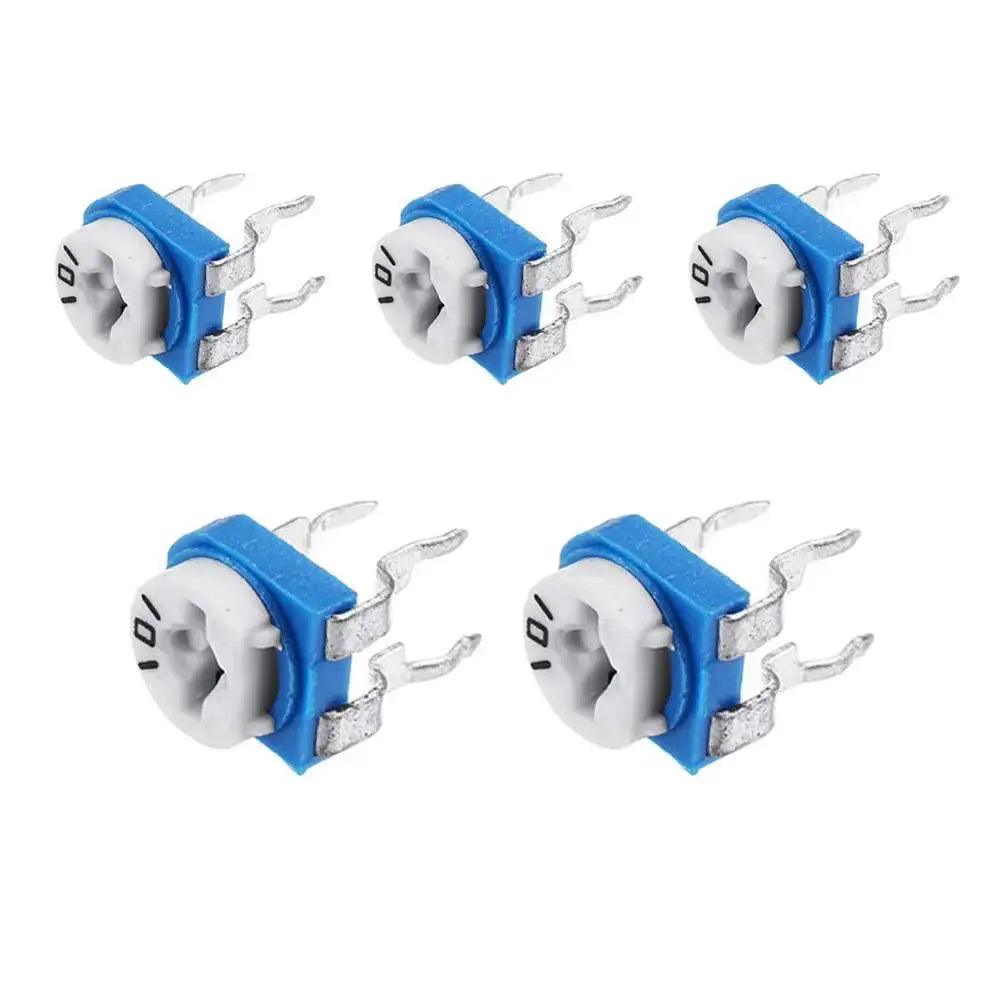

100 Ohm Preset Potentiometer - (Pack of 5)

SKU: PFAM7SQS1J
★★★★ ★ ★
4.5 (22 reviews)
The 100 Ohm preset potentiometer is a compact, PCB-mountable variable resistor with three terminal pins. The voltage across its terminals changes as the adjustment screw is rotated. It is designed for easy installation on a PCB and can be conveniently adjusted using a screwdriver for precise control. Applications of Preset Potentiometer:100 Ohm preset potentiometers are widely used in electronic circuits...
Rs. 29.00
Rs. 49.00 Rs. 29.00
Save Rs. 20 Incl. GST (No Hidden Charges)
Sold out
Tax included. Shipping calculated at checkout.
COD Available
Easy Return
Quality Assured
12 people are viewing this right now
Secure Checkout With
Bulk Orders Available
Special Pricing for Schools, Colleges & Businesses
Contact Us
Free Delivery For All Prepaid Orders Above ₹999
Shop for ₹999 or more and get FREE delivery
across India.
FREE
View full product details
Same Day Dispatch Order before 2PM
Pan India Delivery Shipping in 24-48H
Secure Packaging Safe & Damage Free
Dedicated Support Expert Assistance

The 100 Ohm preset potentiometer is a compact, PCB-mountable variable resistor with three terminal pins. The voltage across its terminals changes as the adjustment screw is rotated. It is designed for easy installation on a PCB and can be conveniently adjusted using a screwdriver for precise control.

Applications of Preset Potentiometer:

100 Ohm preset potentiometers are widely used in electronic circuits where fine adjustments are required during manufacturing, calibration, or servicing. These variable resistors help regulate and adjust voltage levels according to circuit requirements.

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Model Type: Preset Potentiometer
Resistance Value: 100 Ω
Resistance Tolerance: ±5%
Mounting Type: Through-Hole
Dimensions: 1 × 1 × 1 cm
Weight: 5 grams

Additional Resources

100 Ohm Preset Potentiometer.PDF

FAQ

1. What is a 100 Ohm preset potentiometer used for?

 A 100 Ohm preset potentiometer is used for fine adjustment of low resistance values in circuits, such as current control, voltage tuning, and calibration tasks.

2. How do you adjust a preset potentiometer?

 It is adjusted by turning the small screw on top using a screwdriver, which changes the resistance and the output voltage between the terminals.

3. Can this potentiometer be mounted on a PCB?

 Yes, it is designed for through-hole mounting, making it easy to solder and securely install on a PCB.

4. Where is a 100 Ohm preset potentiometer commonly used?

 It is commonly used in current limiting circuits, LED brightness adjustment, power supply tuning, and sensor calibration.

5. Why choose a 100 Ohm value potentiometer?

 A 100 Ohm potentiometer is ideal for applications that require precise control over low resistance ranges and fine current adjustments.
