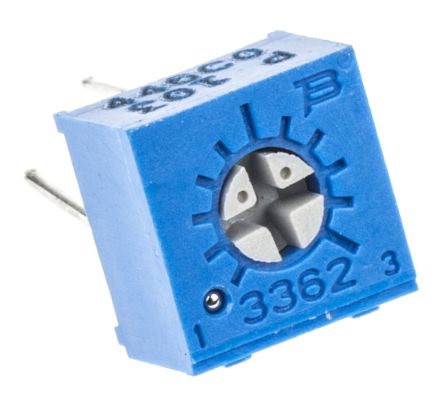

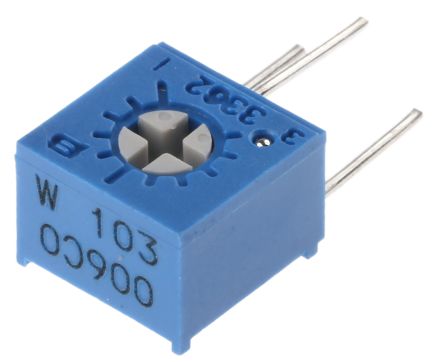

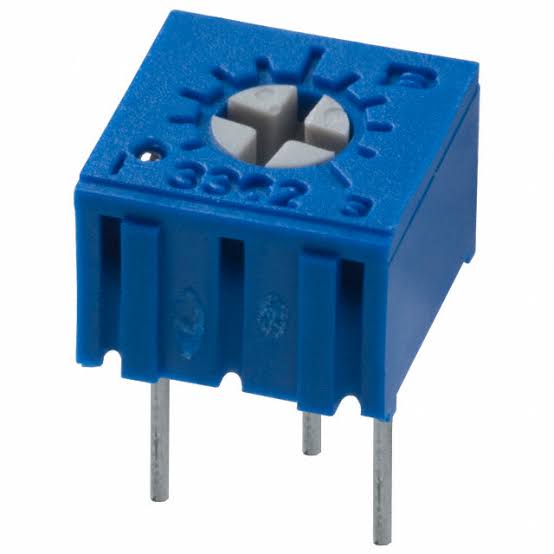

100K Ohms Square Potentiometer- 0.25W – 10% – 3362P-1-104LF – Square Trimpot

SKU: BUJD5Z9PH8
The 3362P-1-104LF Square Trimpot is a high-quality single-turn trimmer potentiometer designed for precise resistance adjustment and circuit calibration. Featuring a resistance value of 100K Ohms, a 0.25W power rating, and ±10% resistance tolerance, this compact trimpot is ideal for applications requiring fine tuning of voltage, current, gain, frequency, and sensor calibration. Its square package design and screw-adjustable mechanism make it...
Rs. 10.00
Rs. 13.00 Rs. 10.00
Save Rs. 3
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Model Number: 3362P-1-104LF
Resistance Value: 100KΩ (100,000 Ohms)
Resistance Tolerance: ±10%
Power Rating: 0.25W (1/4 Watt)
Adjustment Type: Single-Turn
Package Style: Square Trimmer Potentiometer
Mounting Type: Through-Hole PCB Mount
Adjustment Method: Top Screw Adjustment
Resistive Element: Cermet
Operating Temperature Range: Typically -55°C to +125°C

Additional Resources

100K Ohms Square Potentiometer Square Trimpot.PDF

FAQ

  1. What is the resistance value of the 3362P-1-104LF trimpot?

    The 3362P-1-104LF is a 100K Ohms (100,000Ω) square trimmer potentiometer, suitable for fine adjustment of resistance in electronic circuits.
  2. What does the 10% tolerance specification mean?

    The ±10% tolerance indicates that the actual resistance value may vary within 10% of the nominal 100KΩ value, which is typical for trimmer potentiometers used in calibration and adjustment applications.
  3. What is the power rating of this trimpot?

    This trimmer potentiometer has a 0.25W (1/4 Watt) power rating, allowing it to safely dissipate up to 0.25 watts under recommended operating conditions.
  4. How is the 3362P-1-104LF adjusted?

    The trimpot features a screw-adjustable mechanism that allows precise resistance adjustment using a small screwdriver, making it ideal for calibration and tuning applications.
  5. What are the common applications of a 100KΩ square trimpot?

    It is commonly used for voltage adjustment, gain control, sensor calibration, timing circuit tuning, reference voltage setting, and precision circuit trimming in industrial, consumer, and embedded electronic systems.
View full product details

The 3362P-1-104LF Square Trimpot is a high-quality single-turn trimmer potentiometer designed for precise resistance adjustment and circuit calibration. Featuring a resistance value of 100K Ohms, a 0.25W power rating, and ±10% resistance tolerance, this compact trimpot is ideal for applications requiring fine tuning of voltage, current, gain, frequency, and sensor calibration.

Its square package design and screw-adjustable mechanism make it easy to install and adjust on printed circuit boards. The 3362P series is widely used in industrial electronics, instrumentation, communication equipment, power supplies, and embedded systems where reliable and repeatable adjustments are required.
