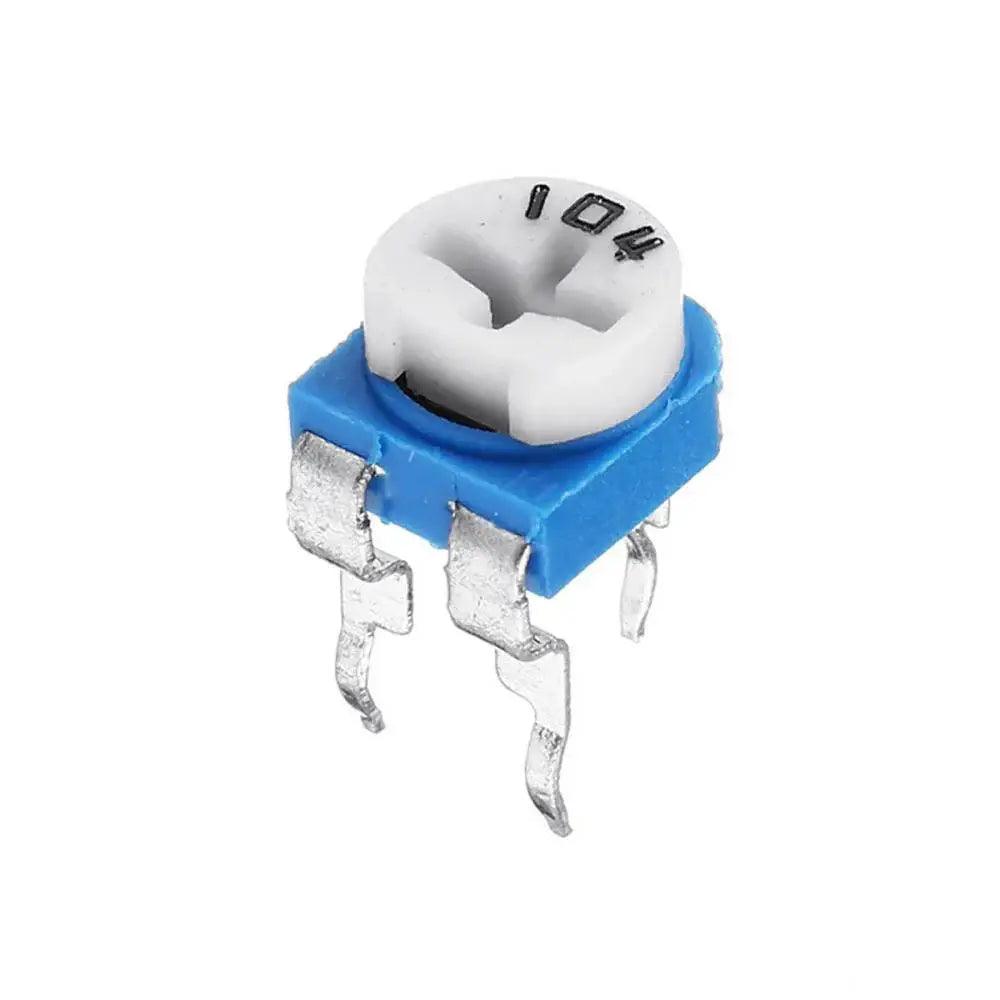

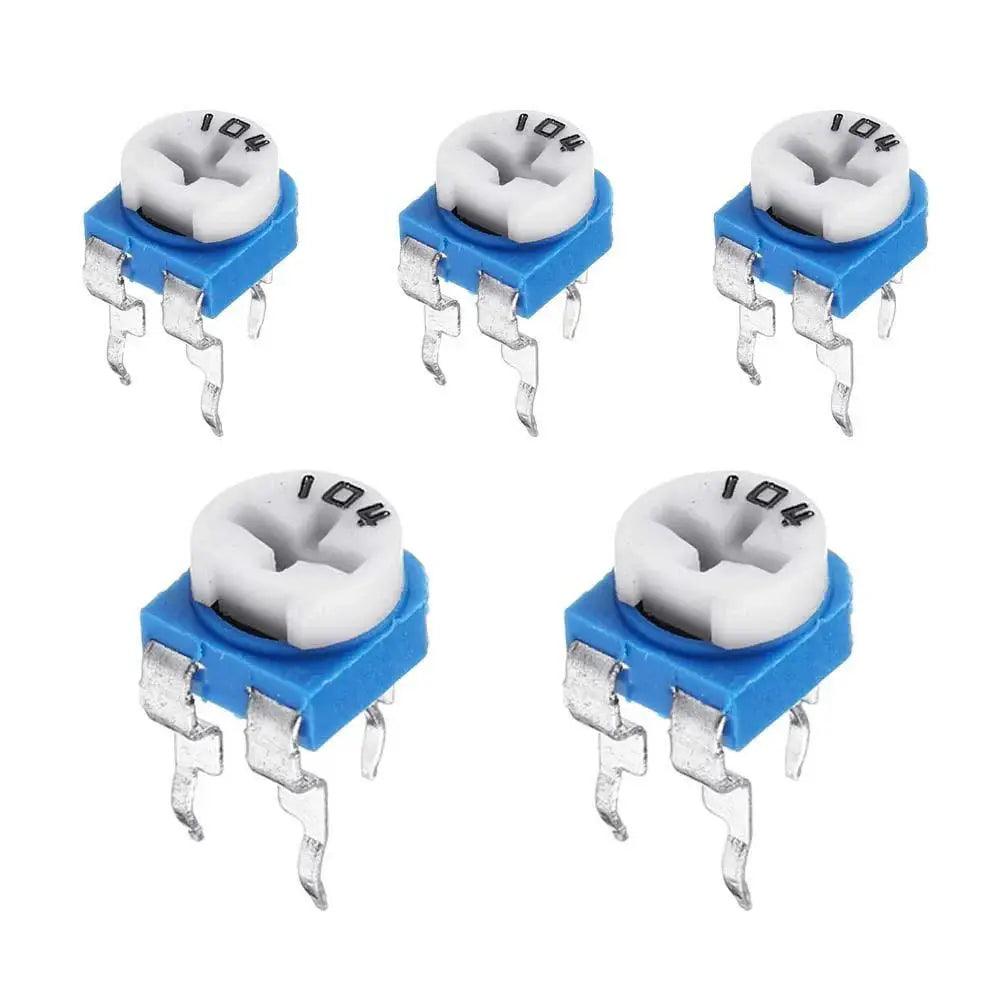

100K Preset Potentiometer - (Pack of 5)

SKU: HSBY6TT6FL
The 100K Preset Potentiometer is a compact, PCB-mountable variable resistor with three terminal pins. The voltage across its terminals changes as the adjustment screw is rotated. It is easy to install on a PCB and can be conveniently adjusted using a screwdriver for precise control. Applications of Preset Potentiometer:100K preset potentiometers are widely used in electronic circuits where fine adjustments...
Rs. 29.00
Rs. 39.00 Rs. 29.00
Save Rs. 10
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Model Type: Preset Potentiometer
Resistance Value: 100 kΩ
Resistance Tolerance: ±5%
Mounting Type: Through-Hole
Dimensions: 1 × 1 × 1 cm
Weight: 5 grams

Additional Resources

100K Preset Potentiometer.PDF

FAQ

1. What is a 100K preset potentiometer used for?

 A 100K preset potentiometer is used for fine adjustment of voltage and signal levels in circuits that require higher resistance tuning, such as sensor calibration and reference voltage setting.

2. How do you adjust a 100K preset potentiometer?

 It is adjusted using a small screwdriver to rotate the screw, which changes the resistance and varies the output voltage between the terminals.

3. Can this potentiometer be mounted on a PCB?

 Yes, it is designed for through-hole mounting, allowing easy and secure installation on a PCB.

4. Where is a 100K preset potentiometer commonly used?

 It is commonly used in voltage divider circuits, audio tuning, power supply adjustments, and microcontroller-based projects.

5. Why choose a 100K value potentiometer?

A 100K potentiometer is ideal for applications requiring higher resistance and finer control over voltage levels with minimal current flow.

View full product details

The 100K Preset Potentiometer is a compact, PCB-mountable variable resistor with three terminal pins. The voltage across its terminals changes as the adjustment screw is rotated. It is easy to install on a PCB and can be conveniently adjusted using a screwdriver for precise control.

Applications of Preset Potentiometer:

100K preset potentiometers are widely used in electronic circuits where fine adjustments are required during manufacturing, calibration, or servicing. These variable resistors help regulate and adjust voltage levels according to circuit requirements.
