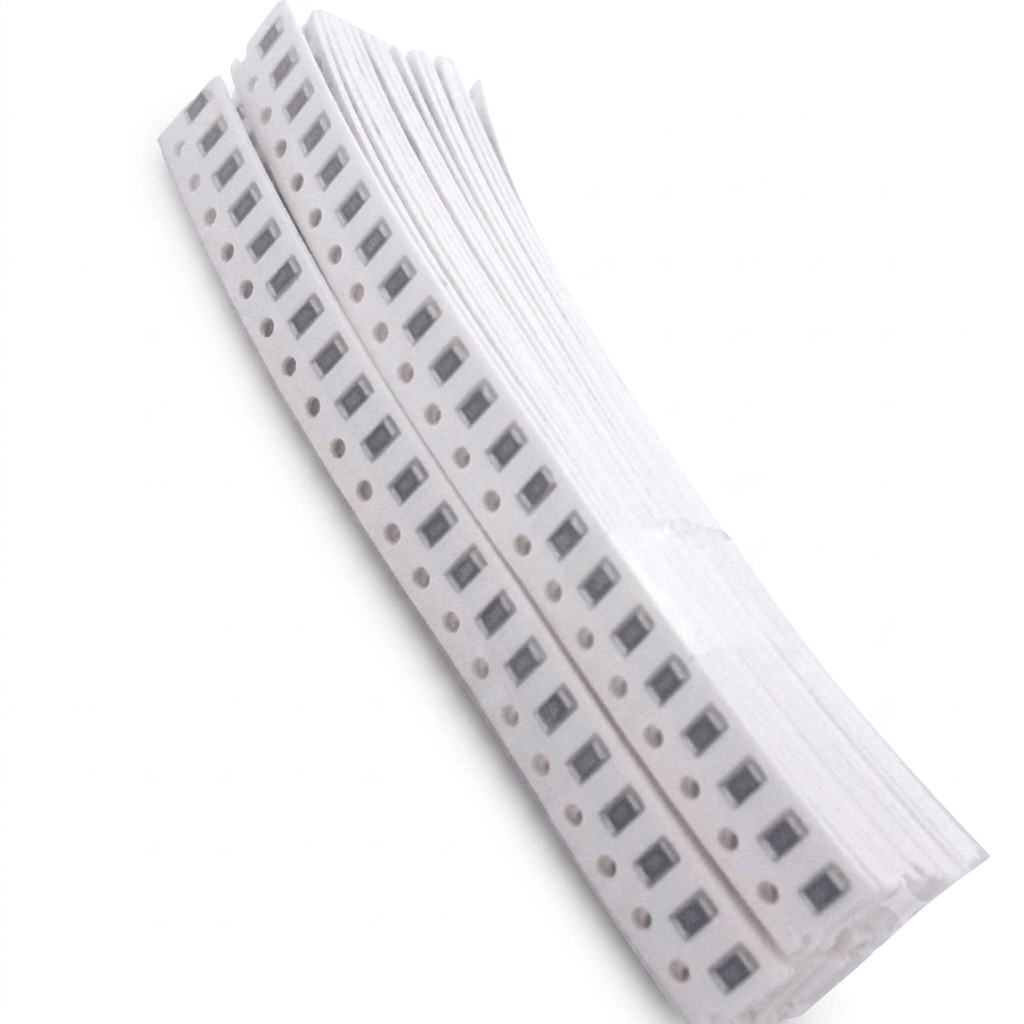

10K Ohm 1206 Package 1/4W SMD Resistor

SKU: B8WT4J4YV9
The 10K Ohm 1206 Package 1/4W SMD Resistor is a widely used surface-mount resistor designed for modern electronic circuits requiring reliable resistance, compact size, and efficient power handling. With a resistance value of 10,000 Ohms (10KΩ), a power rating of 0.25W (1/4W), and a tolerance of ±5%, this resistor is suitable for a broad range of applications including voltage division,...
Rs. 15.00
Rs. 19.00 Rs. 15.00
Save Rs. 4
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Resistance Value: 10KΩ (10,000Ω)
Tolerance: ±5%
Power Rating: 0.25W (1/4W)
Maximum Working Voltage: 200V (Typical)
Maximum Overload Voltage: 400V (Typical)
Temperature Coefficient: ±100ppm/°C to ±300ppm/°C
Operating Temperature Range: -55°C to +155°C
Technology: Thick Film
ckage Type: 1206 (3216 Metric)
Length: 3.2mm
Width: 1.6mm
Height: Approximately 0.55mm
Mounting Type: Surface Mount Device (SMD/SMT)
Terminal Material: Solderable Metal Contacts

Additional Resources

10K Ohm 1206 Package 1/4W SMD Resistor.PDF

FAQ

1. What is a 10K Ohm 1206 Package 1/4W SMD Resistor?

The 10K Ohm 1206 SMD Resistor is a surface-mount resistor with a resistance value of 10,000 ohms (10KΩ). It is packaged in the standard 1206 SMD size and has a power rating of 1/4W (0.25W), making it suitable for a wide range of electronic applications.

2. What does the 1206 package size mean?

The 1206 package refers to the physical dimensions of the resistor, measuring approximately 3.2mm × 1.6mm. This larger SMD package can dissipate more power than smaller packages such as 0603 or 0805.

3. What are the common applications of a 10KΩ SMD resistor?

A 10KΩ resistor is commonly used in pull-up and pull-down circuits, voltage dividers, current limiting, transistor biasing, sensor interfaces, timing circuits, and microcontroller applications.

4. Why is a 1/4W power rating important?

The 1/4W (0.25W) rating indicates the maximum power the resistor can safely dissipate without damage. This allows it to handle higher current and voltage levels than lower-power SMD resistors.

5. What are the advantages of using a 10KΩ 1206 SMD resistor?

The resistor offers compact size, reliable performance, efficient heat dissipation, compatibility with automated PCB assembly, stable resistance characteristics, and suitability for both consumer and industrial electronic circuits.

View full product details

The 10K Ohm 1206 Package 1/4W SMD Resistor is a widely used surface-mount resistor designed for modern electronic circuits requiring reliable resistance, compact size, and efficient power handling. With a resistance value of 10,000 Ohms (10KΩ), a power rating of 0.25W (1/4W), and a tolerance of ±5%, this resistor is suitable for a broad range of applications including voltage division, pull-up and pull-down networks, signal conditioning, and current limiting.

Manufactured using thick-film technology, the resistor is housed in a standard 1206 (3216 Metric) surface-mount package, making it easy to integrate into automated PCB assembly processes. Its larger package size compared to smaller SMD resistors allows for improved power dissipation and enhanced mechanical strength.

The 10KΩ resistor is one of the most commonly used resistor values in electronics and is found in microcontroller circuits, sensor interfaces, communication modules, consumer electronics, industrial control systems, and educational projects.

Features

  • Resistance value of 10KΩ (10,000 Ohms)
  • Standard 1206 SMD package
  • Power rating of 1/4W (0.25W)
  • ±5% tolerance
  • Thick-film resistor technology
  • Suitable for automated PCB assembly
  • Stable electrical performance
  • Compact and lightweight design
  • RoHS-compliant versions available
  • Long operational lifespan
