Specifications:

Capacitance: 10µF
Capacitance Code: 106
Rated Voltage: 50V DC
Dielectric Material: X7R
Capacitor Type: Multilayer Ceramic Capacitor (MLCC)
Package Size: 1206 (3216 Metric)
Package Dimensions: 3.2mm × 1.6mm
Mounting Type: Surface Mount Device (SMD/SMT)
Capacitance Tolerance: ±10% (typical)
Operating Temperature Range: -55°C to +125°C
Length (L): 3.20 ± 0.20 mm
Width (W): 1.60 ± 0.20 mm
Height (T): Approximately 1.6 mm
Terminal Width: Approximately 0.4 to 0.6 mm

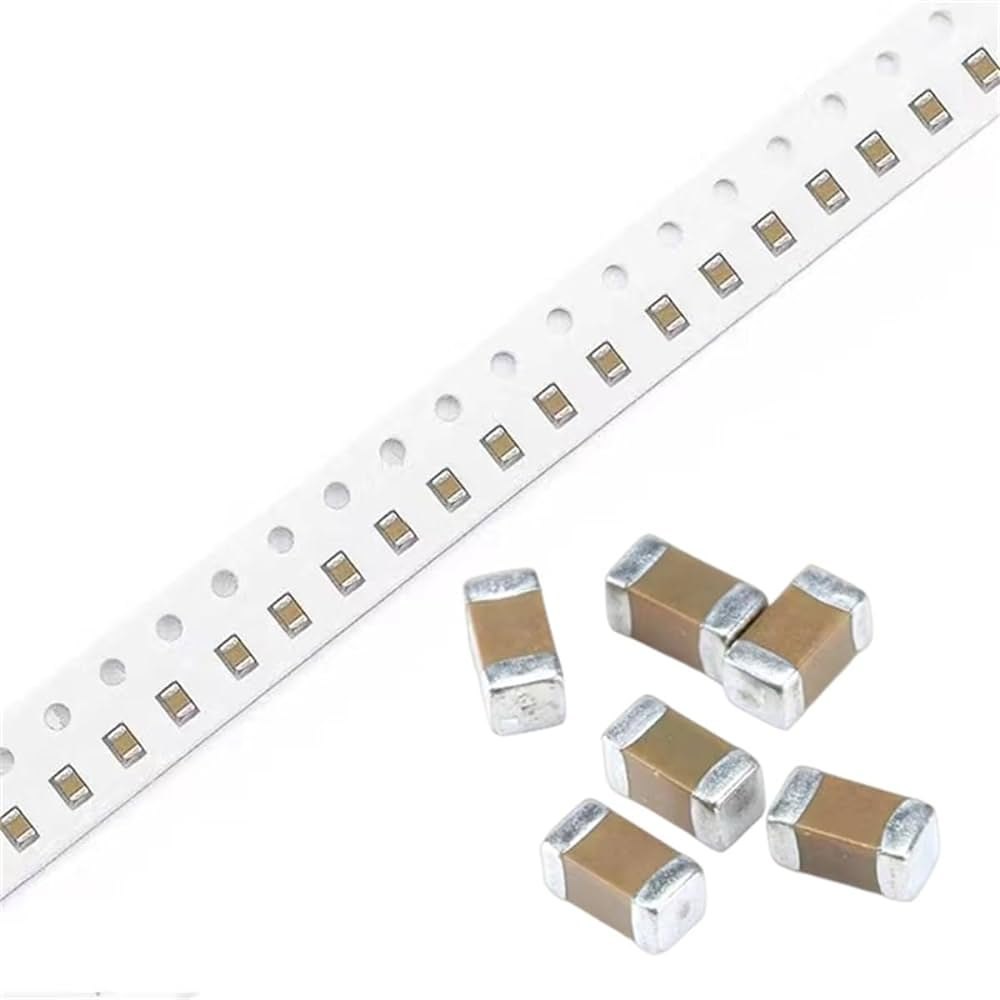

1. What is a 10uF 106 SMD 50V X7R 1206 capacitor?

A 10uF 106 SMD 50V X7R 1206 capacitor is a surface-mount multilayer ceramic capacitor (MLCC) with a capacitance of 10 microfarads, a maximum voltage rating of 50V, and an X7R dielectric material. The 1206 package size measures approximately 3.2mm × 1.6mm.

2. What does the code "106" mean on this capacitor?

The code "106" represents the capacitance value:

• First two digits: 10
• Third digit: 6 zeros

So, 10,000,000 pF = 10µF (microfarads).

3. What are the advantages of using an X7R dielectric capacitor?

X7R capacitors offer good capacitance stability over a wide temperature range (-55°C to +125°C). They provide high capacitance in a compact package and are commonly used for power supply filtering, decoupling, and general-purpose electronic circuits.

4. Where is a 10uF 50V X7R 1206 capacitor commonly used?

This capacitor is commonly used in:

• Power supply filtering
• Voltage regulation circuits
• Microcontroller projects
• DC-DC converters
• Audio equipment
• Industrial and consumer electronics for noise suppression and energy storage.

5. Why choose a 50V-rated capacitor when the circuit voltage is lower?

Using a capacitor with a higher voltage rating provides additional reliability and safety margin. It helps the capacitor withstand voltage spikes, reduces stress on the component, and can improve long-term performance and lifespan in demanding applications.
