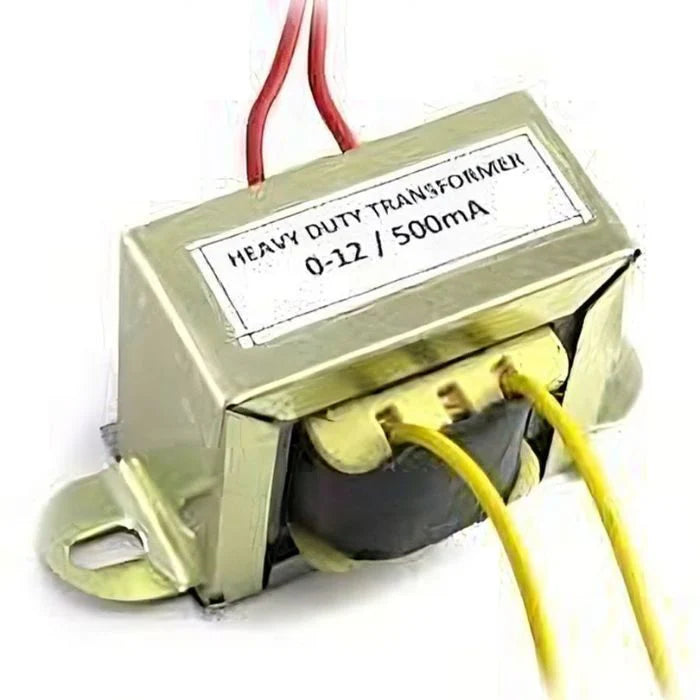

Specifications:

Transformer Type: Step-down Transformer
Secondary Output Voltage: 12V-0V-12V AC
Output Voltage Across Outer Terminals: 24V AC
Current Rating: 1A
Power Rating: 24VA (Approx.)
Frequency: 50Hz / 60Hz
Primary Voltage: 220V–240V AC (Typical)
Isolation: Galvanic Isolation Between Primary and Secondary
Winding Type: Copper Windings
Core Type: Laminated EI Core
Mounting Type: Chassis Mount
Terminal Type: Wire Leads or Solder Lugs (Model Dependent)

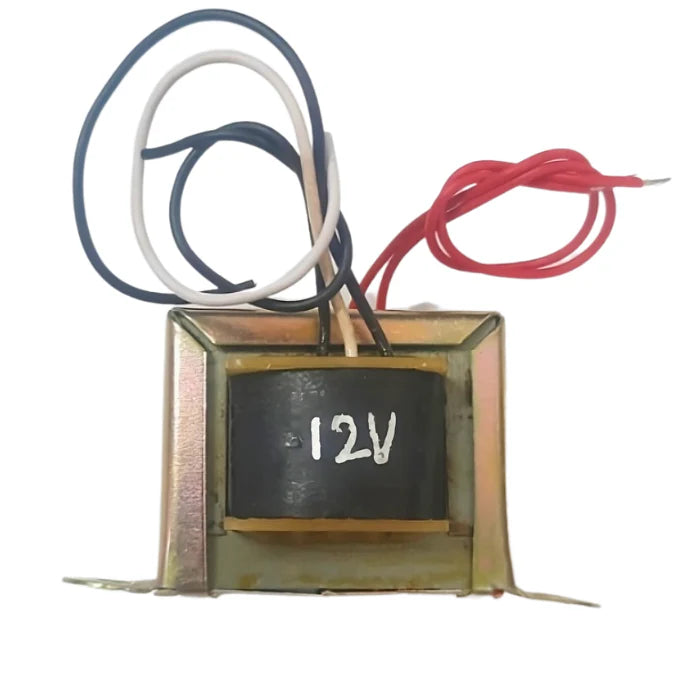

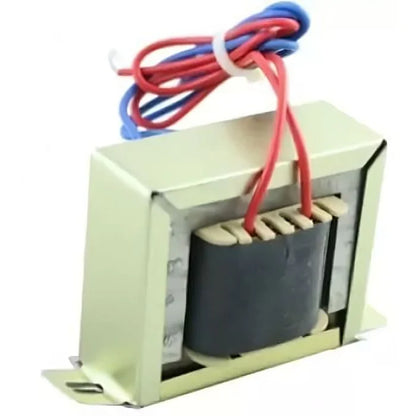

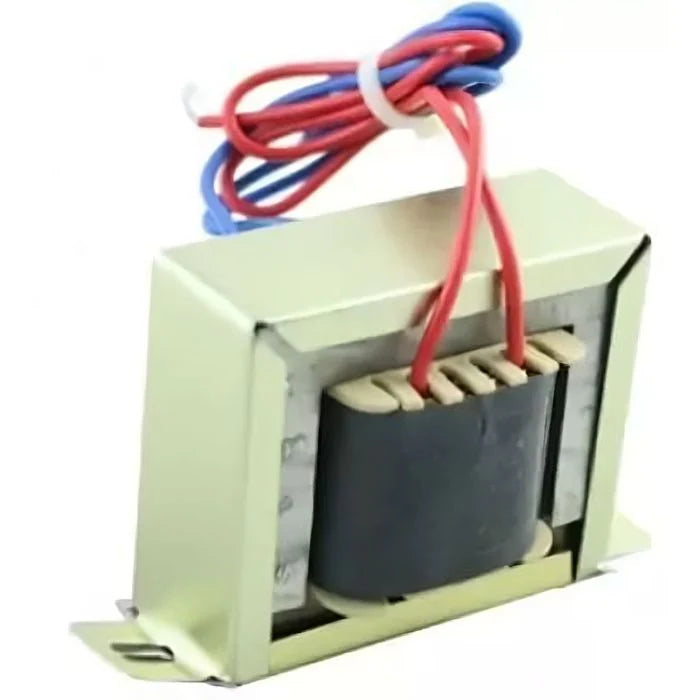

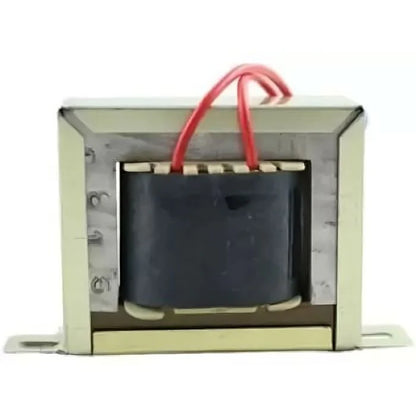

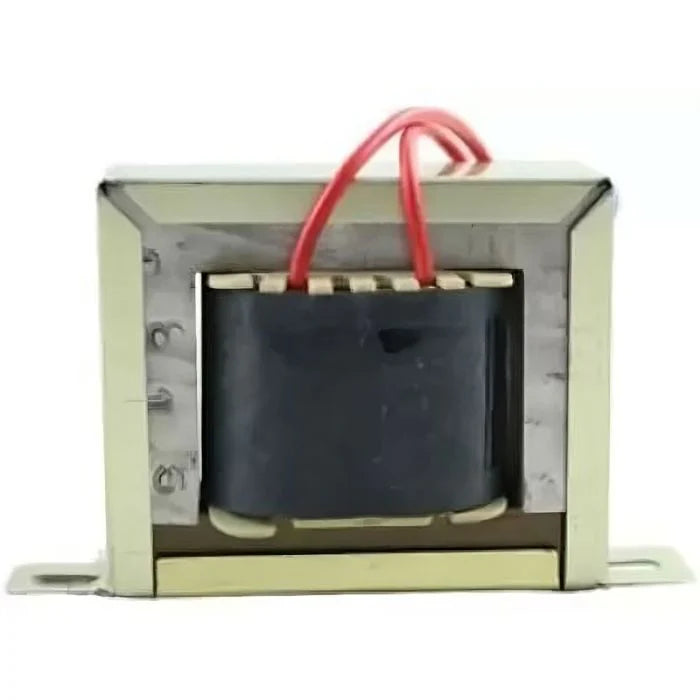

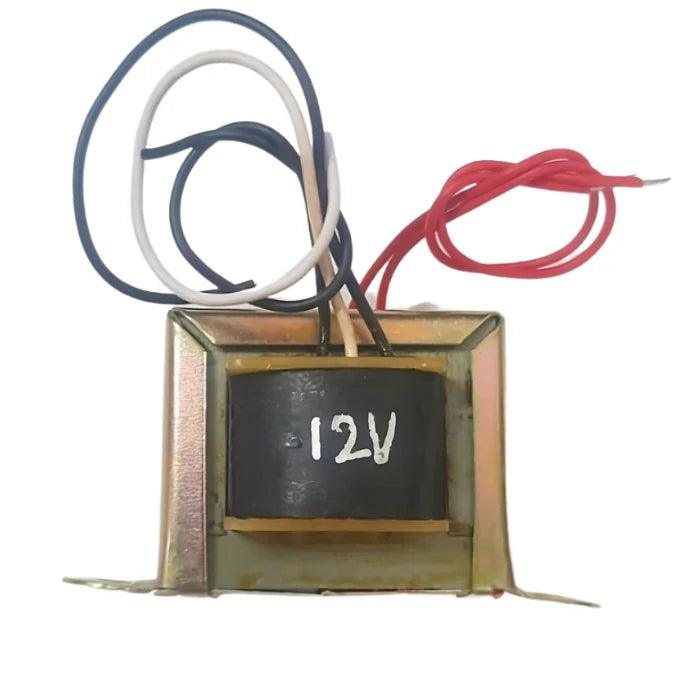

1. What is a 12-0-12 1A Center Tapped Step-down Transformer?

The 12-0-12 1A Center Tapped Transformer is a power transformer that converts high-voltage AC mains input into a lower-voltage AC output. It provides 12V-0V-12V AC across its secondary winding with a maximum current rating of 1A, making it suitable for power supply and electronics projects.

2. What does the “12-0-12” specification mean?

The “12-0-12” designation indicates that the secondary winding has a center tap. The voltage between either outer terminal and the center tap is 12V AC, while the voltage across the two outer terminals is 24V AC.

3. What are the common applications of a 12-0-12 1A transformer?

This transformer is commonly used in dual-polarity power supplies, audio amplifiers, rectifier circuits, battery chargers, voltage regulator circuits, DIY electronics projects, and educational laboratory experiments.

4. Can the transformer be used to obtain both 12V and 24V outputs?

Yes. By using one outer terminal and the center tap, you can obtain 12V AC. By using both outer terminals, you can obtain 24V AC across the full secondary winding.

5. What are the advantages of a center-tapped transformer?

A center-tapped transformer simplifies the design of dual-voltage power supplies, supports full-wave rectification with fewer components, provides multiple output voltage options, and offers reliable electrical isolation between the mains supply and the low-voltage circuit.
