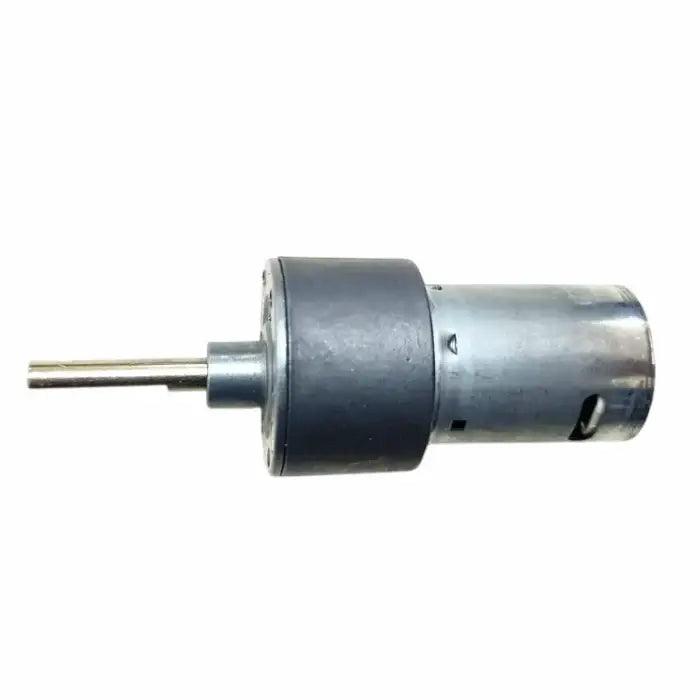

12V 1000 RPM Johnson Geared DC Motor - Grade B Quality

SKU: K16SOY3XN5
The 12V 1000 RPM Johnson Geared DC Motor - Grade B Quality is a great combination of power and affordability. It has a metal gearbox and side shaft that provide good torque, making it more efficient than other motors. It works with 6V to 18V DC and gives 1000 RPM at 12V, with 0.8 kg-cm torque. This motor is compact...
Rs. 399.00
Rs. 499.00 Rs. 399.00
Save Rs. 100
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Rated Torque: 0.8 kg-cm
Operating Voltage: 6V – 18V DC
Rated Speed: 1000 RPM
Material: Metal construction
Nominal Voltage: 12V
Base Motor Speed: 18,000 RPM
Stall Torque: 3.5 kg-cm
No-Load Current: 300 mA
Maximum Load Current: 900 mA
Shaft Diameter: 6 mm
Shaft Length: 30 mm
Gearbox Diameter: 37 mm
Motor Diameter: 27 mm
Motor Length: 64 mm
Overall Dimensions (L × H × W): 10.5 cm × 3.5 cm × 3.5 cm
Weight: 260 grams

Additional Resources

12V 1000 RPM Johnson Geared DC Motor.PDF

FAQ

1. What is the 12V 1000 RPM Johnson Geared DC Motor used for?

This motor is commonly used in robotics, automation projects, conveyor systems, and DIY machines where a balance of speed and torque is required.

2. What does “Grade B Quality” mean in this motor?

Grade B Quality typically indicates that the motor is functional and reliable but may have minor cosmetic imperfections or slight performance variations compared to premium-grade motors.

3. Why is this motor rated at 1000 RPM?

The 1000 RPM rating represents the motor’s output speed under no-load conditions, making it suitable for applications that require relatively high speed with moderate torque.

4. Can this motor be used with standard motor drivers?

Yes, this motor can be used with common motor drivers like L298N, BTS7960, or similar modules that support 12V DC motors and the required current range.

5. What are the main advantages of using this motor?

It offers a good balance of speed and torque, durable metal gearbox construction, compatibility with various drivers, and is cost-effective for medium-duty applications.

View full product details

The 12V 1000 RPM Johnson Geared DC Motor - Grade B Quality is a great combination of power and affordability. It has a metal gearbox and side shaft that provide good torque, making it more efficient than other motors. It works with 6V to 18V DC and gives 1000 RPM at 12V, with 0.8 kg-cm torque.

This motor is compact and durable and features metal bushes to prevent wear. It is perfect for many uses, including robotics, automation, cameras, household items, and more. If you need a reliable motor this is the one to choose.

Please Note: This motor may have an RPM variation of +/- 20%.

Key Features

  • Sturdy construction for durability.
  • Metal bushes on the shaft for extended lifespan.
  • High-quality gears for reliable performance.
  • Shaft with a hole for improved coupling.
