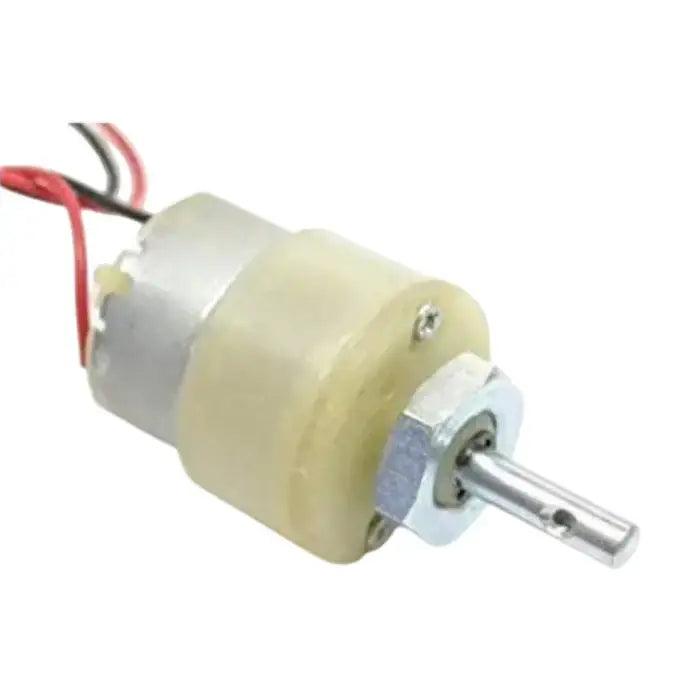

12V 6 RPM Center Shaft DC Gear Motor

SKU: VNEMI8DJ6S
The 12V 6 RPM Center Shaft DC Gear Motor is a cost-effective and reliable solution designed for robotics enthusiasts, students, and DIY makers. This low-RPM motor delivers high torque at very low speed, making it ideal for applications that require precise and controlled motion in robotic systems. It features a center shaft with a nut and threaded design, which allows...
Rs. 229.00
Rs. 249.00 Rs. 229.00
Save Rs. 20
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Gear Material: Metal
Rated Speed (RPM): 6 RPM
Operating Voltage: 12V DC
Rated Torque: 12 kg-cm
Stall Torque: 20 kg-cm
Load Current: 0.3 A
No-Load Current: 60 mA

Additional Resources

12V 6 RPM Center Shaft DC Gear Motor.PDF

FAQ

1. What is the 12V 6 RPM Center Shaft DC Gear Motor used for?

The 12V 6 RPM Center Shaft DC Gear Motor is used in applications that require very slow speed with high torque. It is commonly used in robotics, automation systems, rotating platforms, and heavy load positioning mechanisms.

2. What is the operating voltage of this gear motor?

This motor operates at 12V DC, making it suitable for stable power systems, battery packs, and regulated DC supplies used in automation and industrial-style projects.

3. Why is the 6 RPM speed important?

A speed of 6 RPM is extremely low, which allows precise and controlled movement. This makes the motor ideal for applications like slow rotating displays, conveyor systems, and precision mechanical positioning.

4. What is the advantage of a center shaft design?

The center shaft design provides balanced rotation and easier mechanical alignment. It helps in stable load distribution, making it suitable for turntables, robotic arms, and symmetrical mechanical setups.

5. In which projects can this motor be used?

It is widely used in:

  • Rotating display stands
  • Automatic conveyor systems
  • Robotics and automation projects
  • Solar tracking systems
  • Mechanical DIY and engineering prototypes
View full product details

The 12V 6 RPM Center Shaft DC Gear Motor is a cost-effective and reliable solution designed for robotics enthusiasts, students, and DIY makers. This low-RPM motor delivers high torque at very low speed, making it ideal for applications that require precise and controlled motion in robotic systems.

It features a center shaft with a nut and threaded design, which allows easy mounting onto chassis, frames, or mechanical structures. The internal threaded shaft also enables direct wheel attachment, simplifying assembly and improving stability in robotic builds.

This 12V DC gear motor is compatible with widely used motor driver modules such as the L298N H-bridge driver, which supports a broad operating voltage range of 5V to 35V, making integration simple in most robotics projects.

Whether used in line-following robots, automation systems, or mechanical prototypes, this motor offers a dependable and budget-friendly option for smooth, low-speed operation.

Features:

  • Easy to install and operate in various robotic setups
  • Uniform motor size across different RPM variants for easy replacement
  • Available in multiple RPM options for different applications
  • High durability for long-term usage in DIY and robotics projects
  • Cost-effective solution with excellent performance characteristics
  • Wide compatibility with different wheels, chassis, and robotic structures
