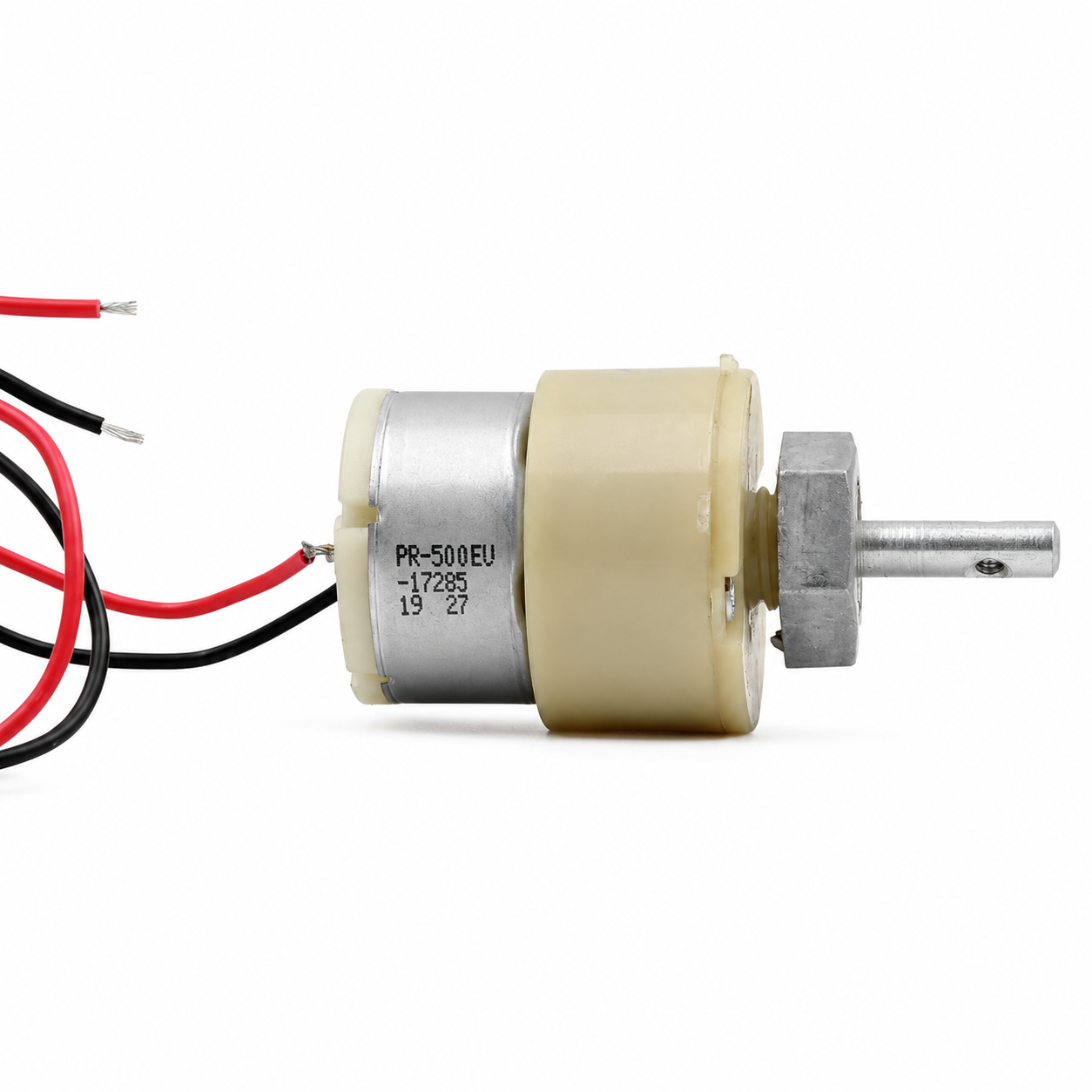

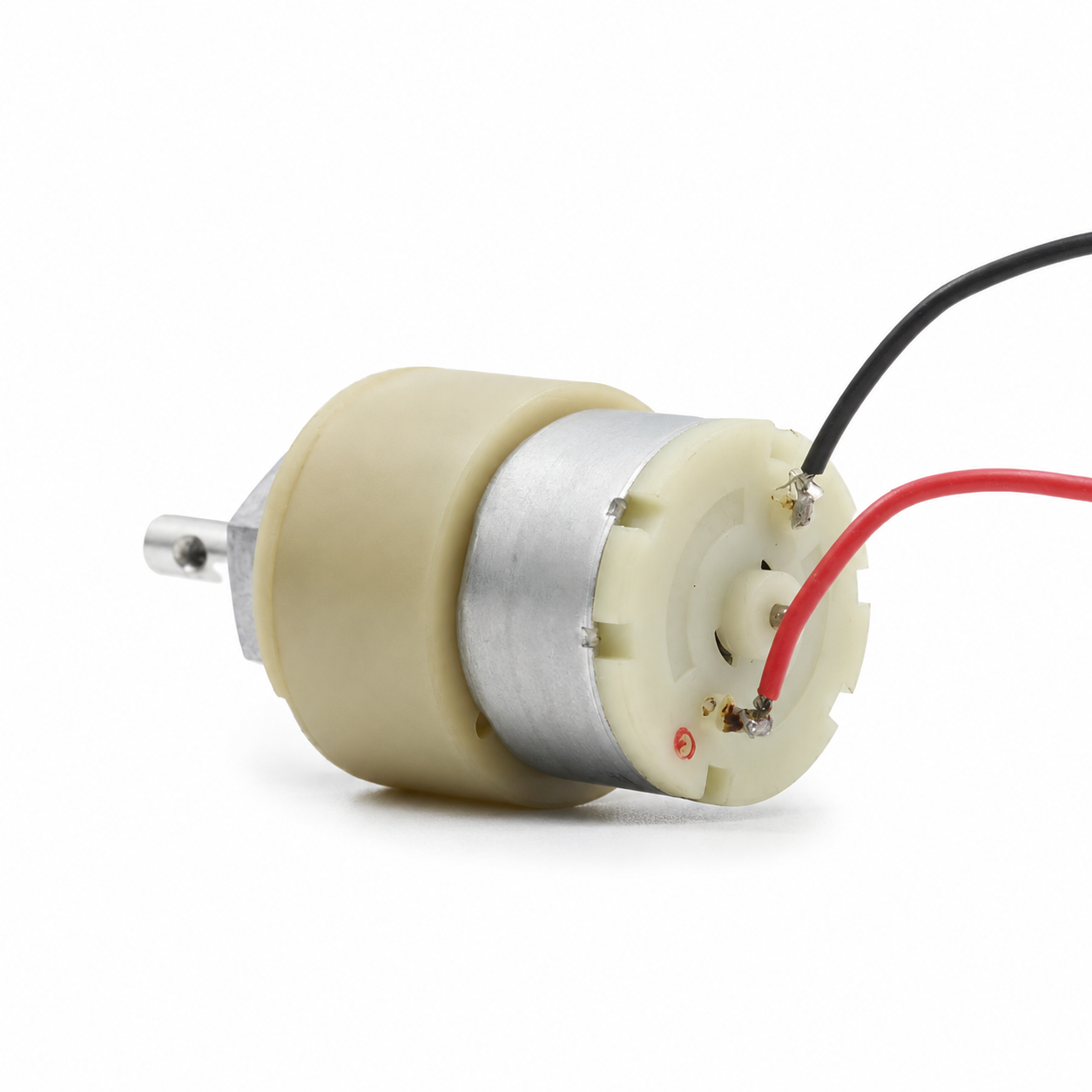

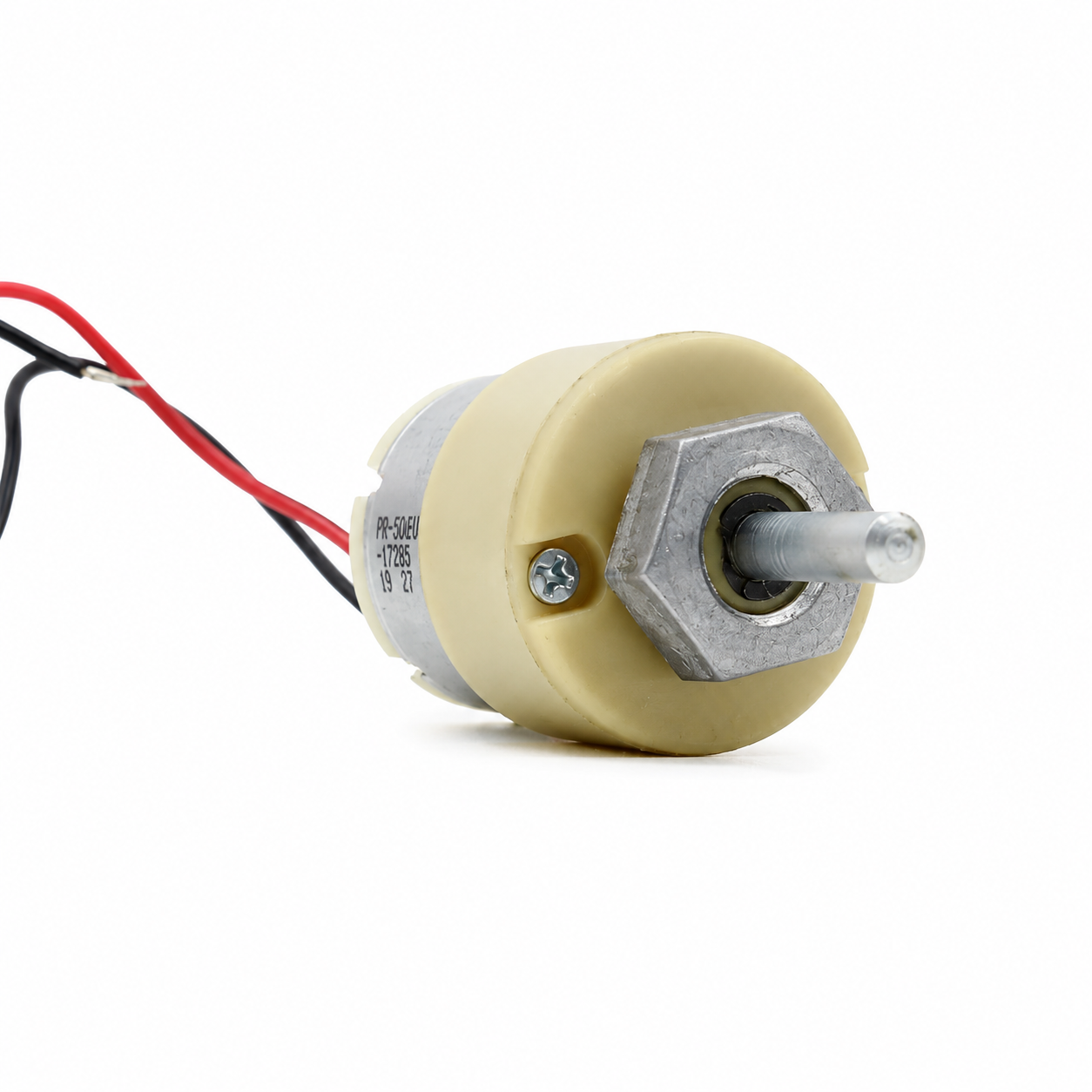

12V Centre Shaft DC Geared Motor 100 RPM (High Quality)

SKU: A3Y8JIUPGC
The 12V Centre Shaft DC Geared Motor (100 RPM) is a high-quality, compact geared motor designed for applications requiring moderate speed and high torque output. Equipped with a durable metal gearbox and a centrally positioned output shaft, the motor provides smooth operation, reliable performance, and long service life in robotics, automation, and DIY projects. Operating from a standard 12V DC...
Rs. 209.00
Rs. 239.00 Rs. 209.00
Save Rs. 30
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Product Type: DC Geared Motor
Operating Voltage: 12V DC
Rated Speed: 100 RPM
Motor Type: Brushed DC Motor
Gearbox Type: Spur Gear Reduction
Output Shaft Type: Centre Shaft
Rotation Direction: Clockwise / Counterclockwise (Reversible)
No-Load Current: Approximately 100mA – 300mA
Load Current: Depends on Load Conditions
Stall Current: Varies by Model
Torque: High Torque Output
Gear Material: Metal Gearbox
Shaft Diameter: Approximately 6mm
Shaft Length: Approximately 15–20mm
Mounting Type: Bracket Mount Compatible
Operating Temperature: -10°C to +60°C
Body Material: Metal and Engineering Plastic
Weight: Approximately 150g – 300g

Additional Resources

Geared Motor.PDF

FAQ

1. What is the 12V 100 RPM Centre Shaft DC Geared Motor used for?

It is commonly used in robotics, automation systems, robot cars, conveyor mechanisms, and motion-control applications that require high torque and controlled speed.

2. What is the operating voltage of this geared motor?

The motor is designed to operate on a 12V DC power supply.

3. What output speed does the motor provide?

The motor provides a nominal output speed of approximately 100 RPM under rated operating conditions.

4. Can the motor rotate in both directions?

Yes, the motor's rotation direction can be reversed by changing the polarity of the power supply connections.

5. Why is a geared motor preferred over a standard DC motor?

The integrated gearbox reduces speed while significantly increasing torque, making geared motors more suitable for driving loads and mechanical systems that require greater force and controlled movement.

View full product details

The 12V Centre Shaft DC Geared Motor (100 RPM) is a high-quality, compact geared motor designed for applications requiring moderate speed and high torque output. Equipped with a durable metal gearbox and a centrally positioned output shaft, the motor provides smooth operation, reliable performance, and long service life in robotics, automation, and DIY projects.

Operating from a standard 12V DC power supply, the motor delivers a nominal speed of 100 RPM while generating sufficient torque for driving wheels, mechanisms, conveyor systems, robotic platforms, and other motion-control applications. The integrated reduction gearbox significantly increases torque while reducing output speed, making it ideal for applications where controlled movement and power are important.

Its rugged construction, efficient operation, and easy mounting make it a popular choice among students, hobbyists, and engineers.

Key Features

  • High-quality DC geared motor
  • Rated operating voltage of 12V DC
  • 100 RPM output speed
  • Centre shaft output design
  • High torque gearbox mechanism
  • Durable metal gear construction
  • Smooth and stable operation
  • Low noise performance
  • Compact and lightweight design
  • Easy mounting and integration
  • Reversible rotation (CW/CCW)
  • Suitable for robotics and automation projects
  • Long operational life
