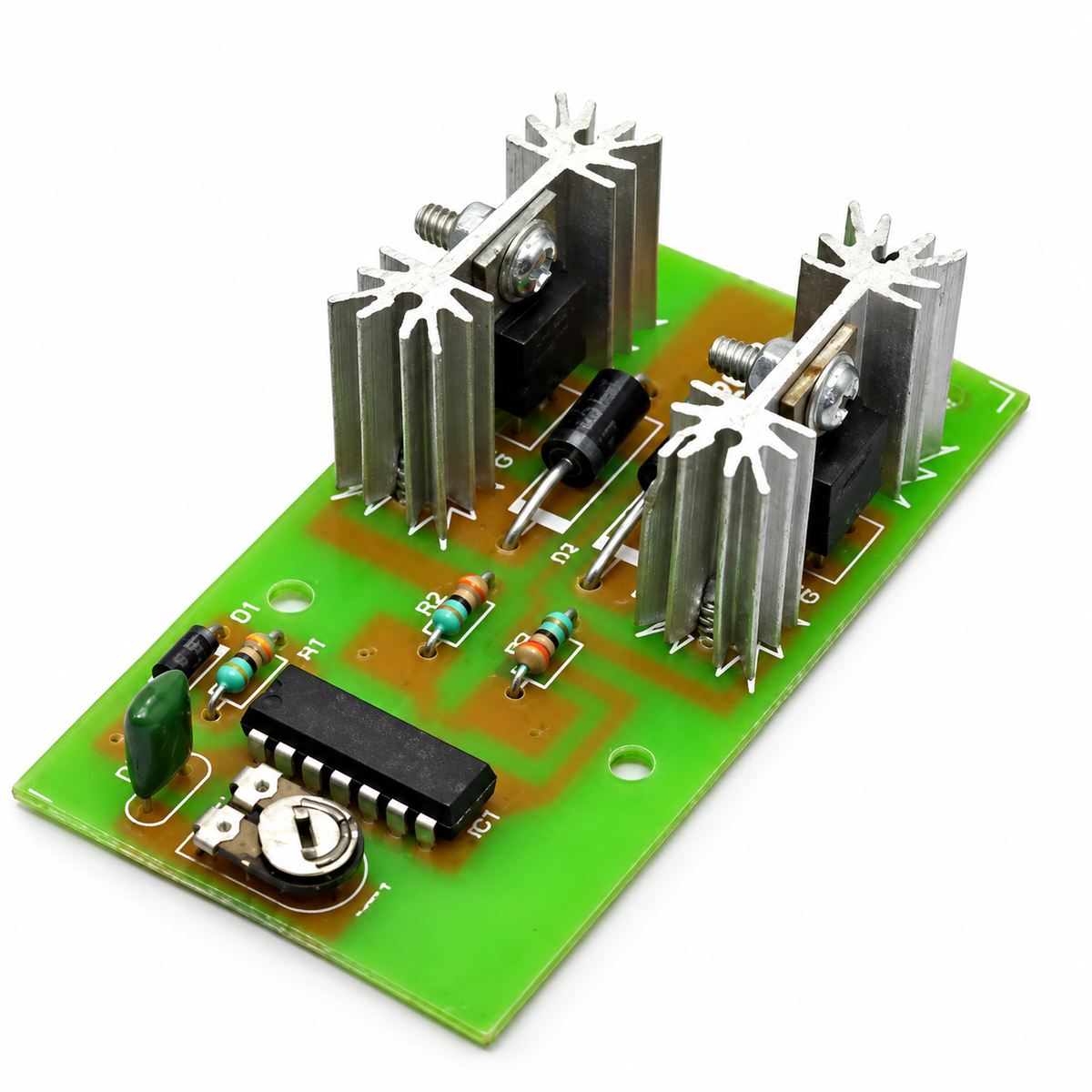

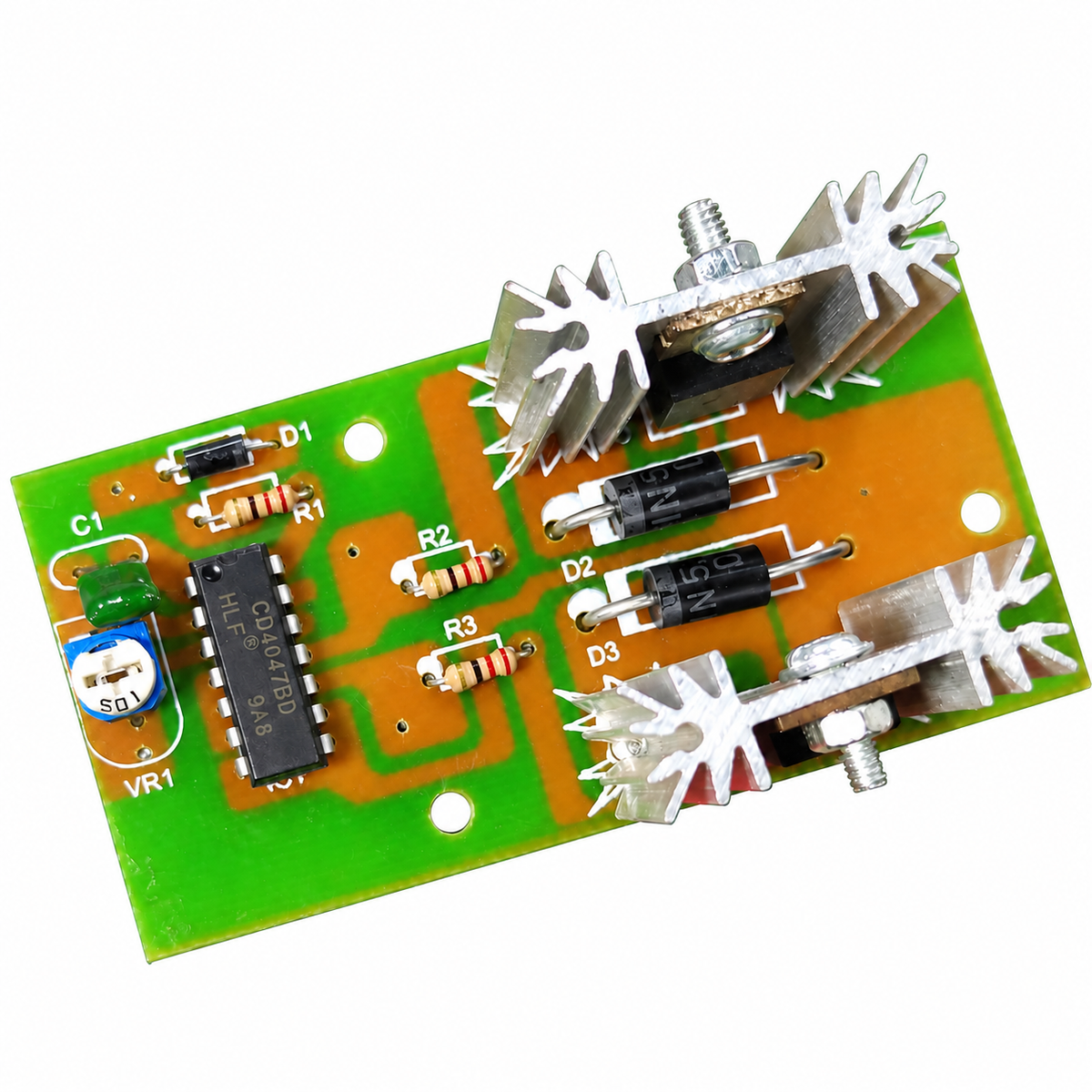

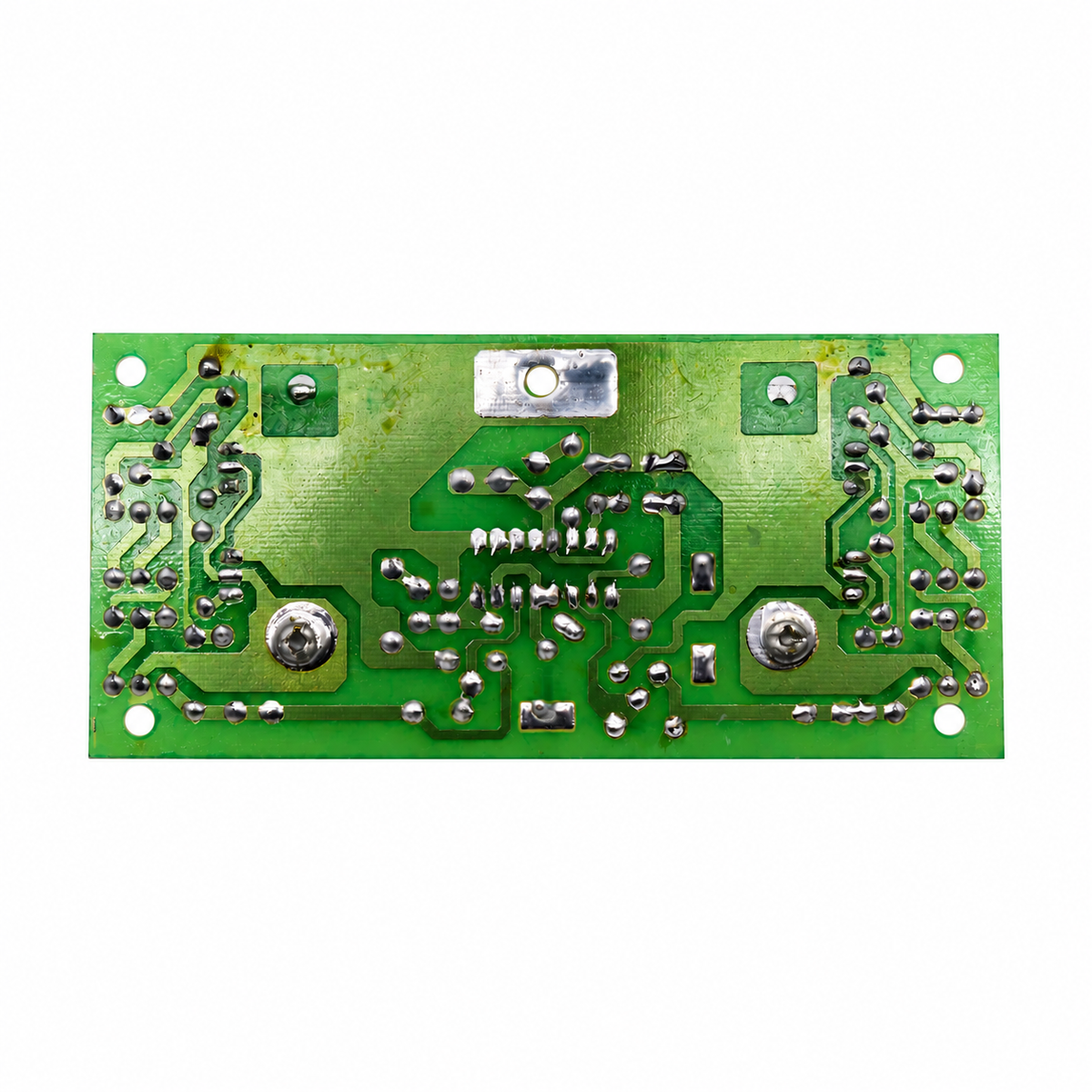

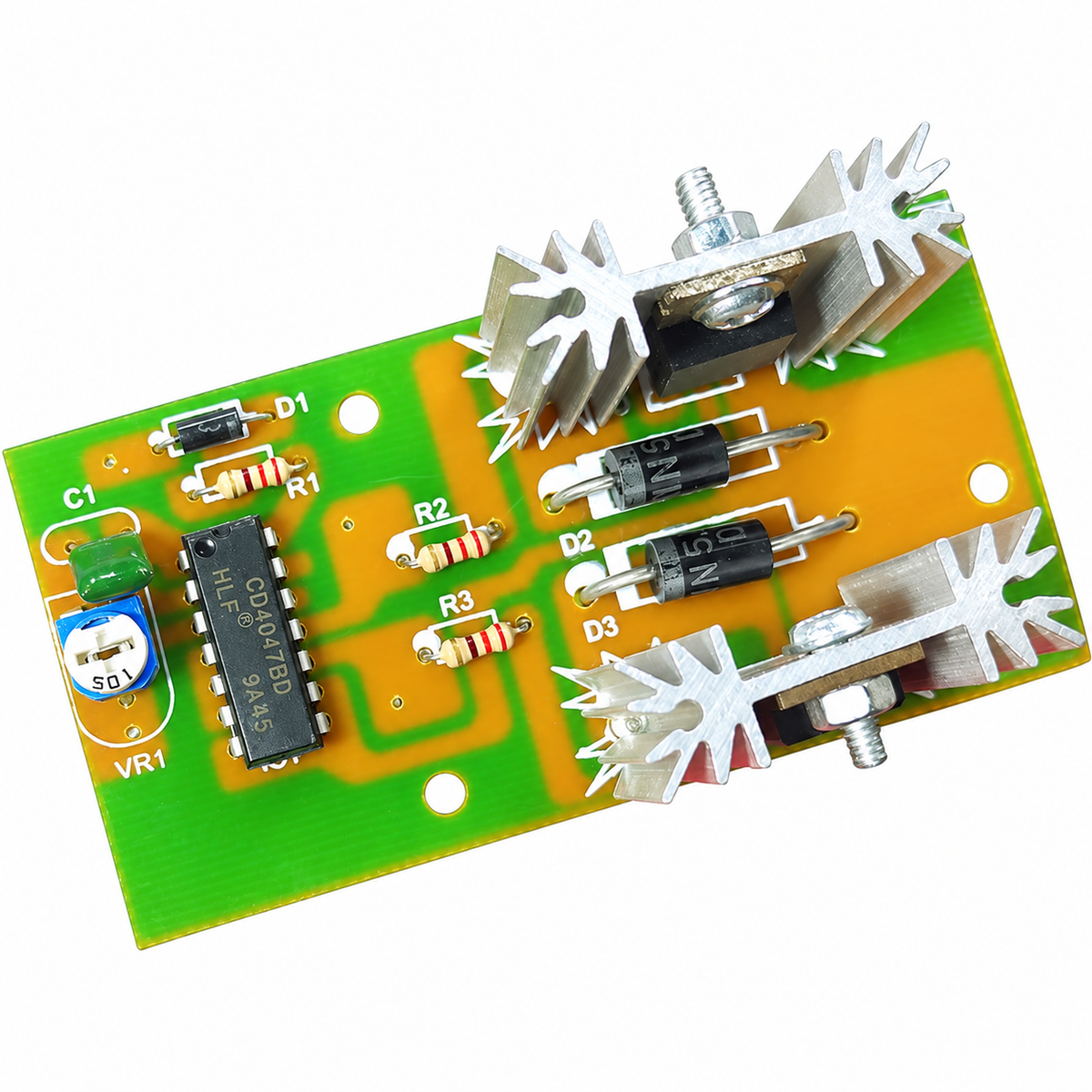

The 12VDC to 220VAC Inverter Circuit Motherboard (100W) is an electronic inverter board designed to convert a 12V DC supply into approximately 220V AC output, with a rated power capacity of up to 100W. It is suitable for compatible DIY inverter assemblies, battery-powered power conversion projects, and electronic repair applications.
The motherboard contains the switching and control circuitry required for DC-to-AC conversion. Depending on the board design, it may work with a compatible transformer to increase the voltage from 12V DC to approximately 220V AC. The output waveform, operating frequency, and transformer requirements depend on the specific circuit design.
With a nominal 100W power rating, this inverter board can be used in small power conversion projects involving compatible low-power AC loads. It is also useful for electronics education, power electronics experiments, and custom inverter development where the input supply, transformer, and output requirements match the board specifications.
The board is intended for users assembling or repairing inverter systems. A suitable 12V battery or DC power source must be capable of supplying the required input current. Proper wiring, cooling, fusing, insulation, and an enclosure are essential for safe operation because the output voltage can cause serious electric shock.

Key Features

12V DC to 220V AC Inverter Motherboard
100W Rated Power Capacity
12V DC Input
Approximately 220V AC Output
DC-to-AC Voltage Conversion
Electronic Switching Circuit
Designed for Compatible Transformer-Based Systems
Suitable for Small Inverter Projects
Useful for Battery-Powered Applications
Suitable for DIY Power Electronics
Useful for Electronics Experiments
Suitable for Inverter Repair and Replacement
Compact Circuit Board Design
Suitable for Low-Power AC Applications
Requires Compatible Input Power Source
Requires Appropriate Cooling and Ventilation
Requires Proper Electrical Insulation
High-Voltage Safety Precautions Required
