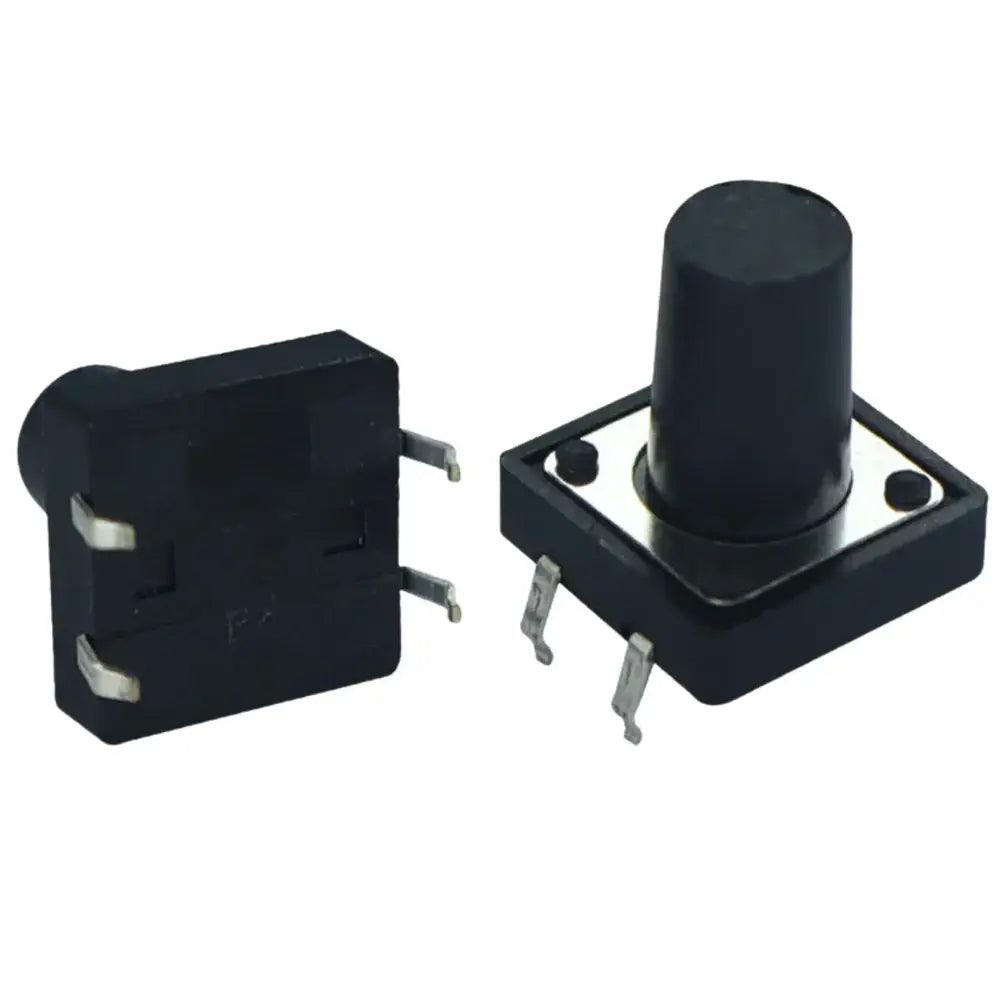

• 12X12X17mm_4_Pin_Tactile_Push_Button_Switch_Pack_of_5_1000x_9287441a-e62d-4d40-a254-93e32c9ee770 - Roboracter

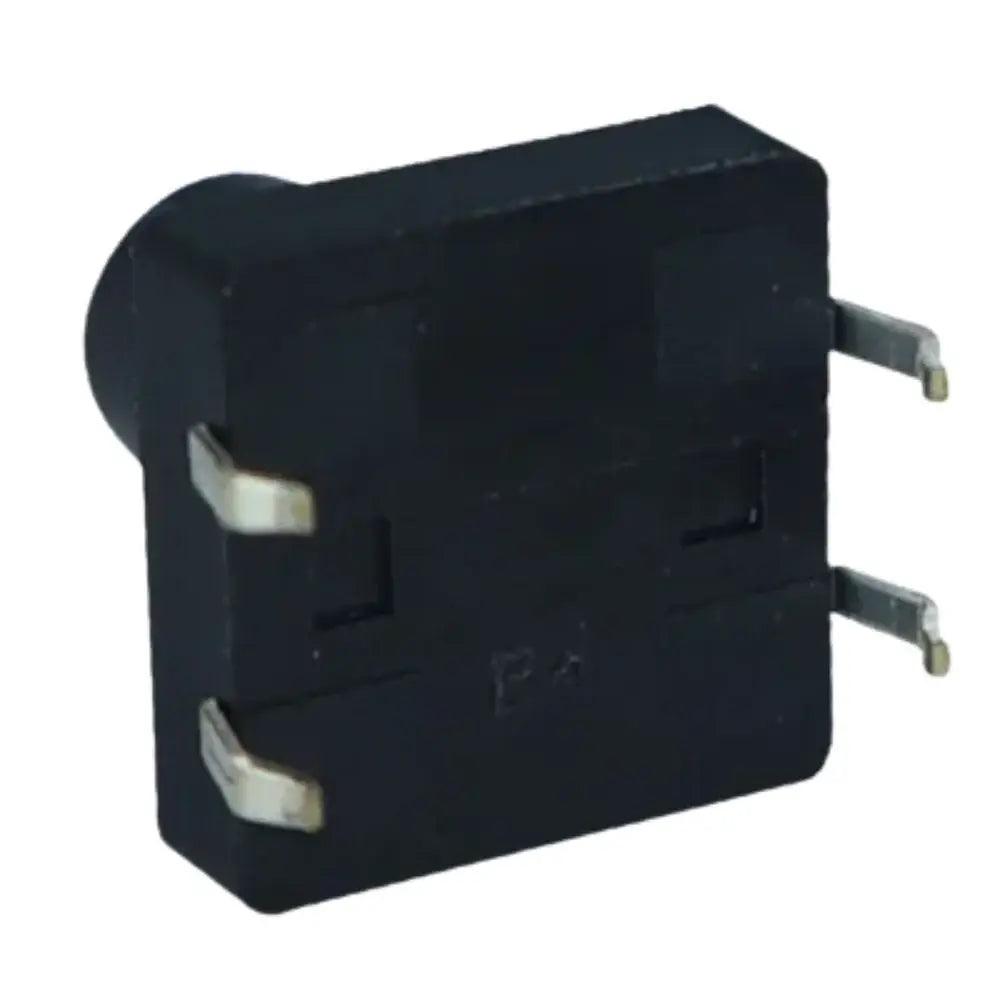

  • 2_12X12X17mm_4_Pin_Tactile_Push_Button_Switch_Pack_of_5_1000x_19a6b613-ed31-45ca-ac31-d3d1b59e12b0 - Roboracter

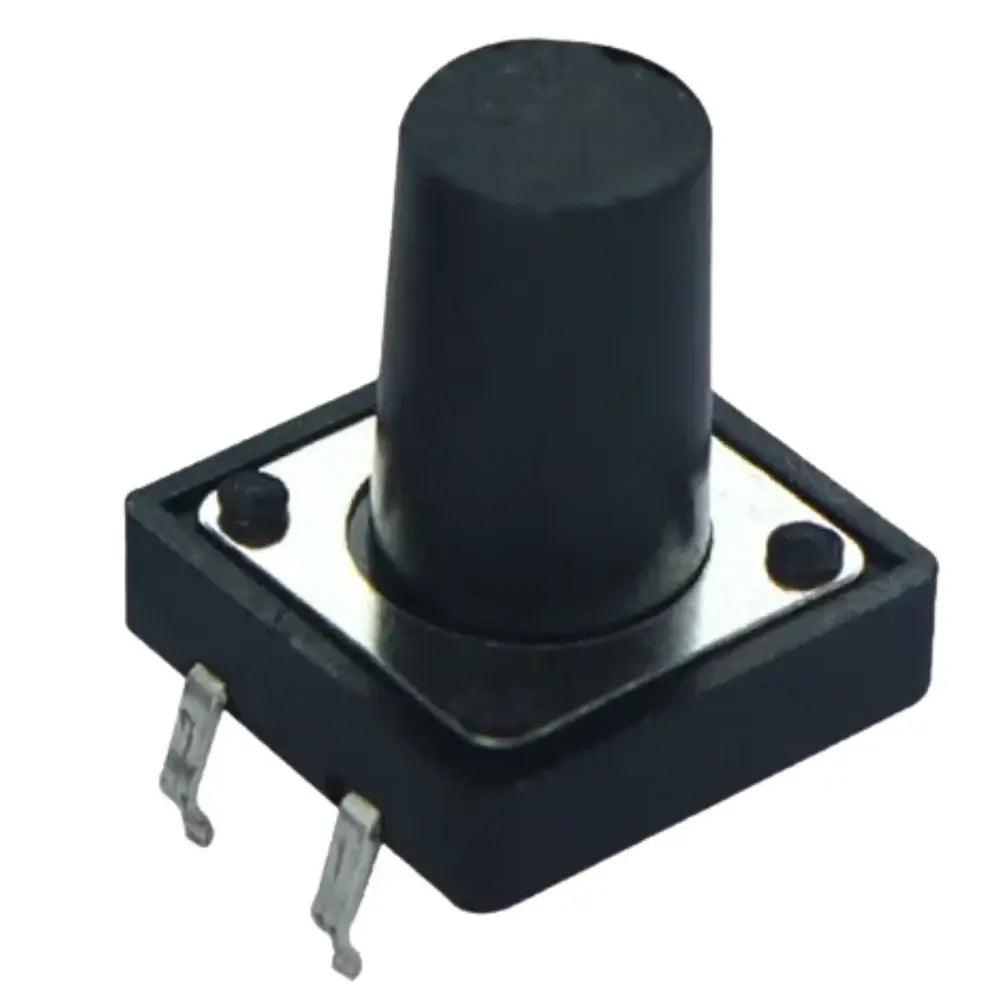

  • 1_12X12X17mm_4_Pin_Tactile_Push_Button_Switch_Pack_of_5_1000x_b8d83512-deea-4005-853f-83e8e5eadd93 - Roboracter
1 3
Genuine Products 100% Authentic
Easy Integration Plug & Play
Reliable Performance Consistent & Stable
Reliable Quality Tested & Verified

Tactile Push Button Switch 6X6X10mm

SKU: JWD3CGLXU3
★★★★ ★ ★
4.9 (116 reviews)
The 6×6×10mm Tactile Push Button Switch is a compact momentary contact switch designed for reliable and precise user input in electronic circuits. It operates on a normally open (NO) configuration, meaning the circuit remains open until the button is pressed and closes only during actuation. With a standard 6mm × 6mm footprint and 10mm actuator height, this switch is widely...
Rs. 5.00
Rs. 11.00 Rs. 5.00
Save Rs. 6 Incl. GST (No Hidden Charges)
Sold out
Tax included. Shipping calculated at checkout.
COD Available
Easy Return
Quality Assured
12 people are viewing this right now
Secure Checkout With
Bulk Orders Available
Special Pricing for Schools, Colleges & Businesses
Contact Us
Free Delivery for all orders above ₹999
Shop for ₹999 or more and get FREE delivery
across India.
FREE
View full product details
Same Day Dispatch Order before 2PM
Pan India Delivery Shipping in 24-48H
Secure Packaging Safe & Damage Free
Dedicated Support Expert Assistance

The 6×6×10mm Tactile Push Button Switch is a compact momentary contact switch designed for reliable and precise user input in electronic circuits. It operates on a normally open (NO) configuration, meaning the circuit remains open until the button is pressed and closes only during actuation.

With a standard 6mm × 6mm footprint and 10mm actuator height, this switch is widely used in PCB-based designs where moderate height is required for better accessibility through panels or enclosures. It delivers a sharp tactile response, ensuring accurate triggering in consumer electronics, embedded systems, Arduino projects, and industrial control applications.

Key Features

  • Standard 6×6mm PCB footprint with 10mm height actuator
  • Momentary ON (Normally Open) operation
  • Clear and responsive tactile feedback
  • Through-hole PCB mounting design
  • High durability with long operational life
  • Suitable for panel-mounted and enclosure-based applications
  • Low contact resistance for stable signal performance
  • Compatible with Arduino, IoT, and embedded electronics

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Switch Type: Tactile Push Button (Momentary)
Operation Mode: Normally Open (NO)
Dimensions: 6mm × 6mm × 10mm
Mounting Type: Through-hole PCB mount
Number of Pins: 4 (internally paired contacts)
Operating Voltage: 12V DC (typical)
Operating Current: 50mA max
Contact Resistance: ≤ 50 mΩ
Insulation Resistance: ≥ 100 MΩ
Actuation Force: 1.6N – 3.5N (approx.)
Travel Distance: ~0.25mm – 1.0mm
Mechanical Life: 100,000 – 300,000 cycles
Body Material: Thermoplastic (PA/Nylon)
Contact Material: Metal alloy

Additional Resources

Tactile Push Button.PDF

FAQ

1: What is the size and pin configuration of this tactile push button switch?

The switch measures 6x6x10mm (LxWxH) and has a standard 4-pin configuration for stable electrical and mechanical connections.

2: What type of action does this switch provide?

It has a momentary action, meaning it turns ON only while being pressed and returns to OFF when released, providing clear tactile feedback.

3: What is the voltage and current rating of this switch?

This tactile push button switch is rated for 12V DC and can handle currents between 50mA and 100mA, suitable for low-power electronic circuits.

4: How is this switch mounted on a PCB?

The switch uses a through-hole (THT) mounting design, which ensures secure and durable attachment to printed circuit boards.

5: What are the typical applications of this 4-pin tactile switch?

It is commonly used in industrial control systems, embedded product design, OEM electronics, diagnostic equipment, and audio/video communication devices.
