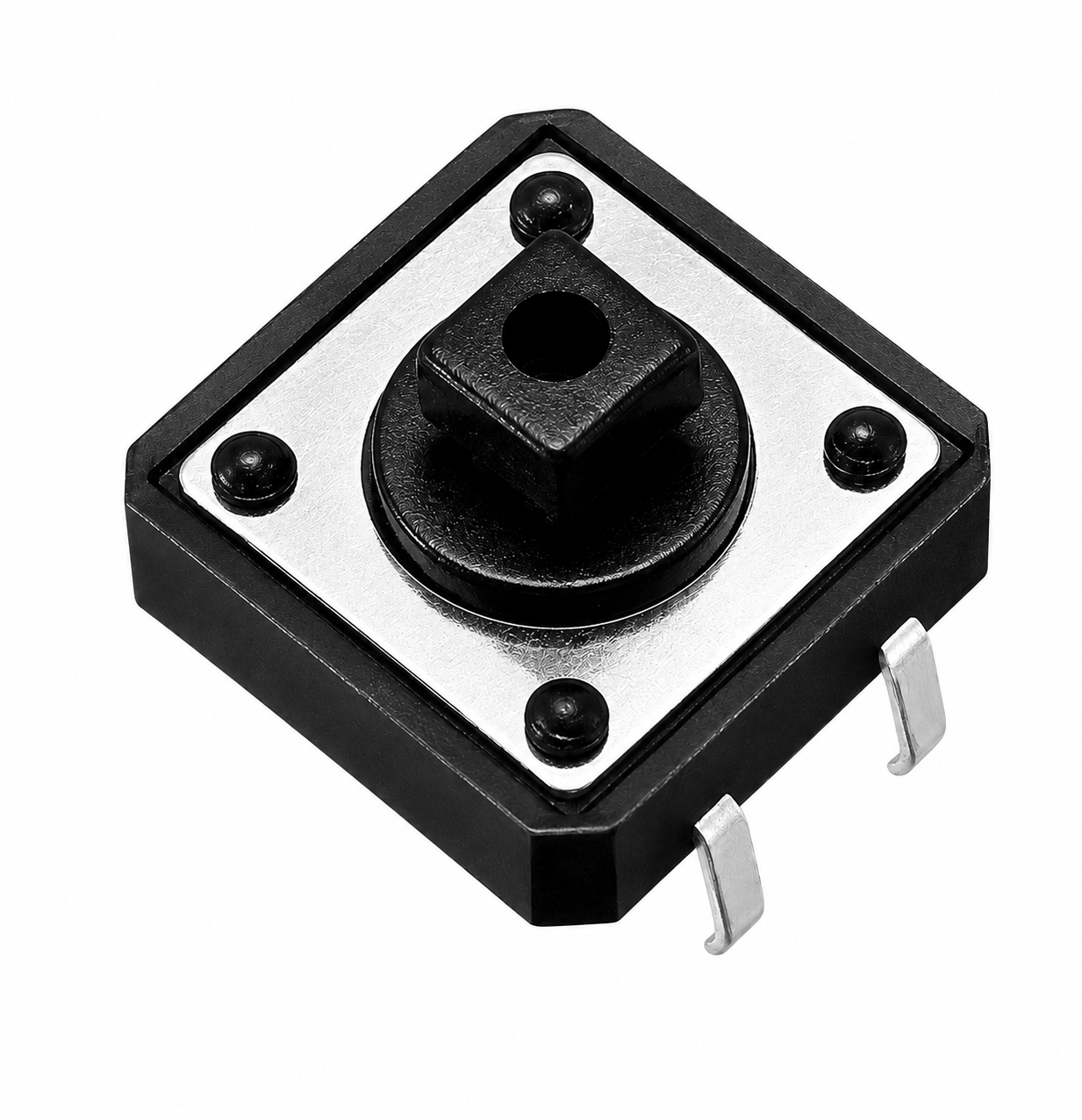

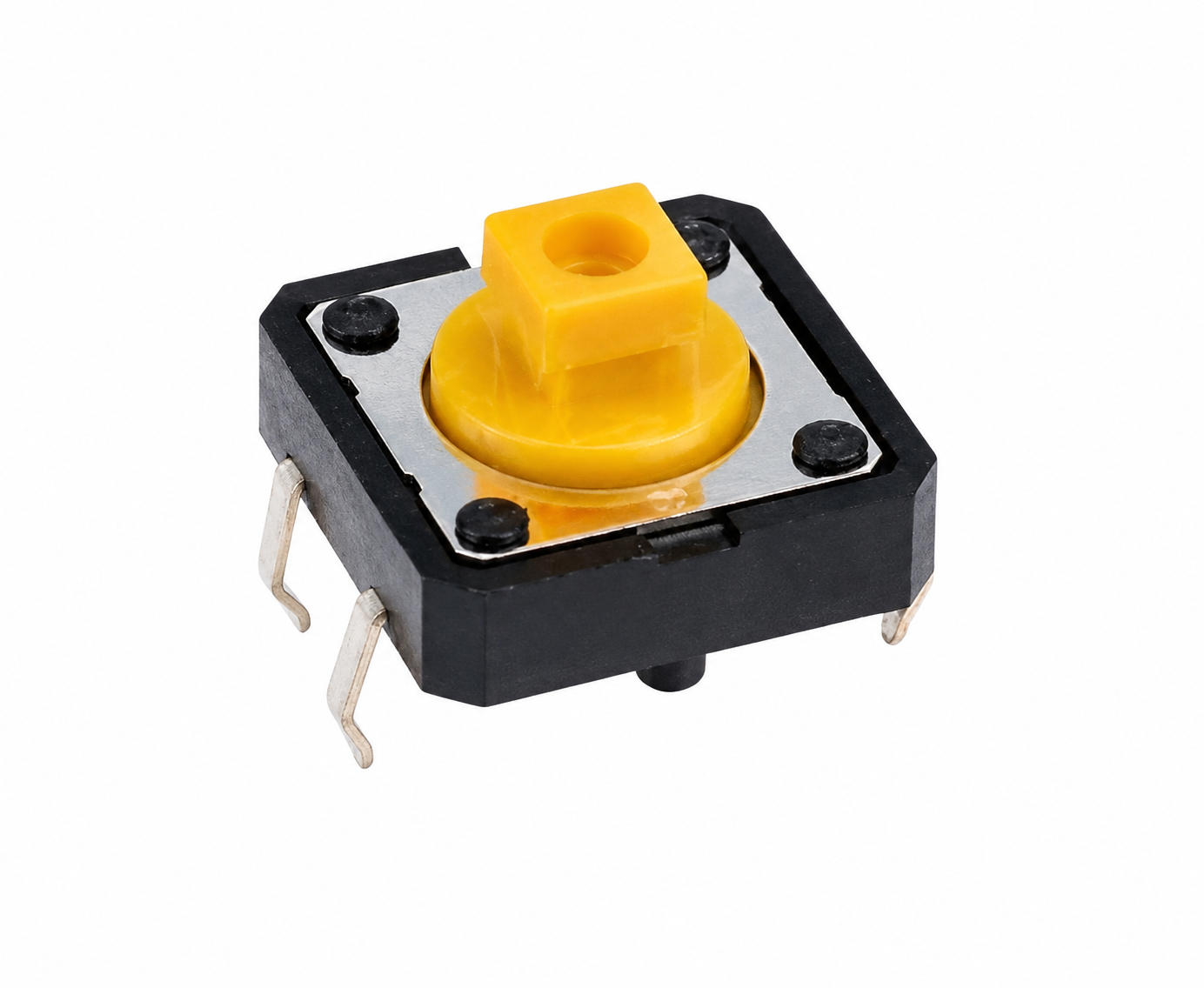

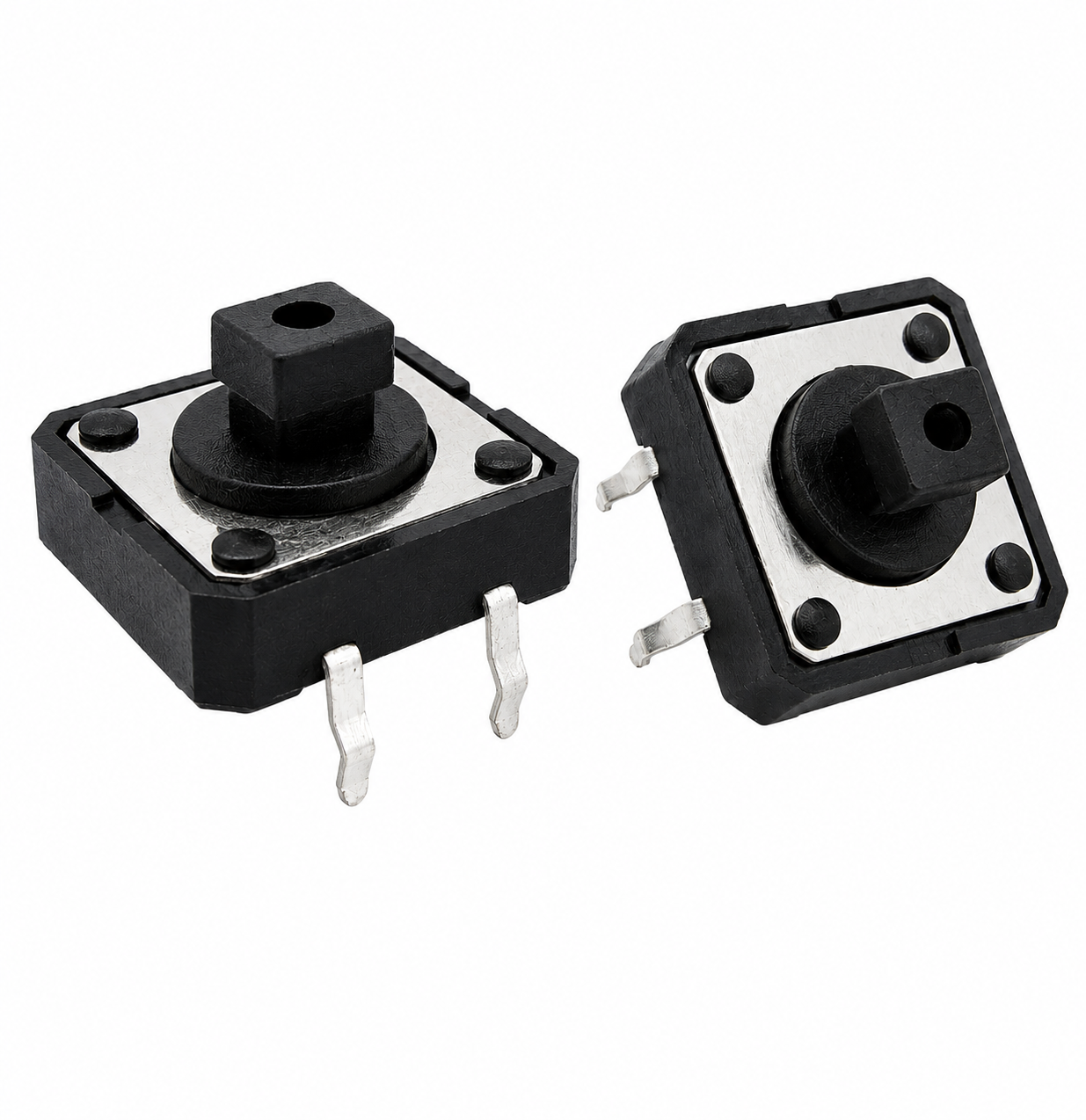

Tactile Push Button Switch 12x12x7.3mm

SKU: Y03HWHJRXD
★★★★ ★ ★
4.5 (118 reviews)
The Tactile Push Button Switch 12x12x7.3mm is a compact momentary switch designed for reliable user input in a wide range of electronic applications. Featuring a sturdy 12mm × 12mm body and a 7.3mm actuator height, this switch delivers a distinct tactile click that provides clear feedback during operation. Its four-pin through-hole design ensures secure PCB mounting and excellent mechanical stability....
Rs. 6.00
Rs. 11.00 Rs. 6.00
Save Rs. 5 Incl. GST (No Hidden Charges)
Sold out
Tax included. Shipping calculated at checkout.
COD Available
Easy Return
Quality Assured
12 people are viewing this right now
Secure Checkout With
Bulk Orders Available
Special Pricing for Schools, Colleges & Businesses
Contact Us
Free Delivery for all orders above ₹999
Shop for ₹999 or more and get FREE delivery
across India.
FREE
View full product details
Same Day Dispatch Order before 2PM
Pan India Delivery Shipping in 24-48H
Secure Packaging Safe & Damage Free
Dedicated Support Expert Assistance

The Tactile Push Button Switch 12x12x7.3mm is a compact momentary switch designed for reliable user input in a wide range of electronic applications. Featuring a sturdy 12mm × 12mm body and a 7.3mm actuator height, this switch delivers a distinct tactile click that provides clear feedback during operation. Its four-pin through-hole design ensures secure PCB mounting and excellent mechanical stability.

The switch operates as a normally open (NO) device, completing the electrical circuit only while the button is pressed. Once released, the internal spring mechanism returns the contacts to their original state, making it ideal for temporary input functions such as menu navigation, resets, mode selection, and control commands.

Widely used in consumer electronics, industrial equipment, embedded systems, educational projects, and DIY electronics, the Tactile Push Button Switch 12x12x7.3mm offers dependable performance, long service life, and easy integration into electronic circuits.

Key Features

  • Compact 12mm × 12mm Package
  • 7.3mm Actuator Height
  • Momentary Push Button Operation
  • Positive Tactile Click Feedback
  • Normally Open (NO) Contact Configuration
  • Four-Pin Through-Hole Design
  • Secure PCB Mounting
  • Low Contact Resistance
  • High Reliability and Durability
  • Long Mechanical Operating Life
  • Easy Integration into Electronic Projects
  • Suitable for Consumer and Industrial Applications

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Operating Voltage: 12 VDC
Maximum Operating Current: 50 mA
On/Off Function: Push-to-ON
Switch Type: Momentary
Contact Type: Through-hole
Contact Material: Brass
Contact Resistance: ≤ 50 mΩ
Insulation Resistance: ≥ 100 MΩ
Operating Temperature Range: -20°C to 70°C
Operating Force: Approximately 3–5 N
Operating Stroke: 1.05 mm
Body Material: Plastic
Mechanical & Electrical Lifecycle: ≥ 300,000 cycles
Dimensions: 12 × 12 × 7.3 mm

Additional Resources

Tactile Push Button.PDF

FAQ

1. What type of switch is this ?

This is a momentary tactile push button switch with a normally open (NO) configuration. Pressing the button temporarily closes the circuit.

2. What are the key dimensions and pin configuration ?

The switch measures 12 × 12 × 7.3 mm and features through-hole pins for easy PCB mounting or use on a solderless breadboard.

3. What is the electrical rating of this switch ?

It operates at a maximum of 12 VDC with a current rating of 50 mA, suitable for low-power electronic circuits.

4. What is the operating force and stroke of this switch ?

The tactile switch requires an operating force of approximately 3–5 N and has an operating stroke of 1.05 mm, providing crisp tactile feedback.

5. What are the typical applications of this tactile push button switch ?

It is widely used in telecommunications, consumer electronics, audio/visual devices, medical instruments, testing equipment, and computer peripherals. It’s ideal for prototyping, DIY electronics, and embedded system projects.
