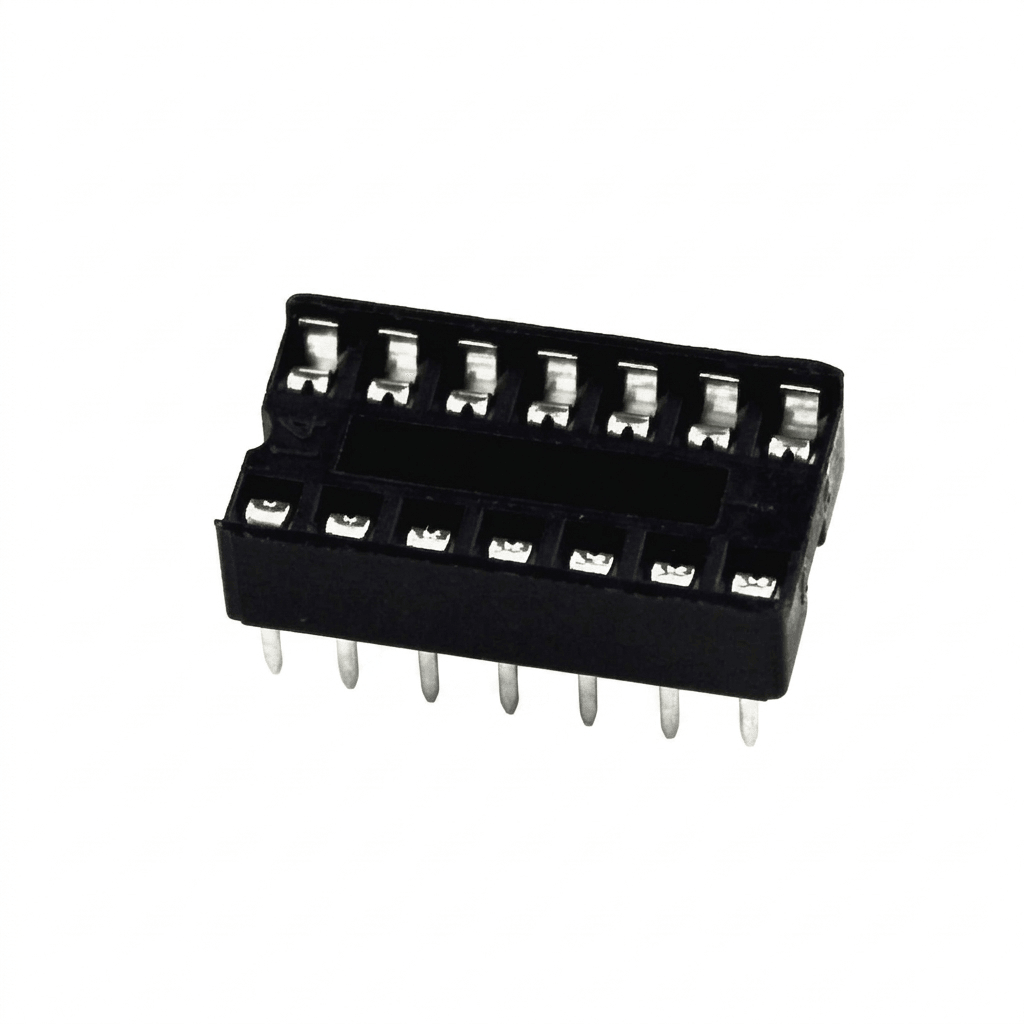

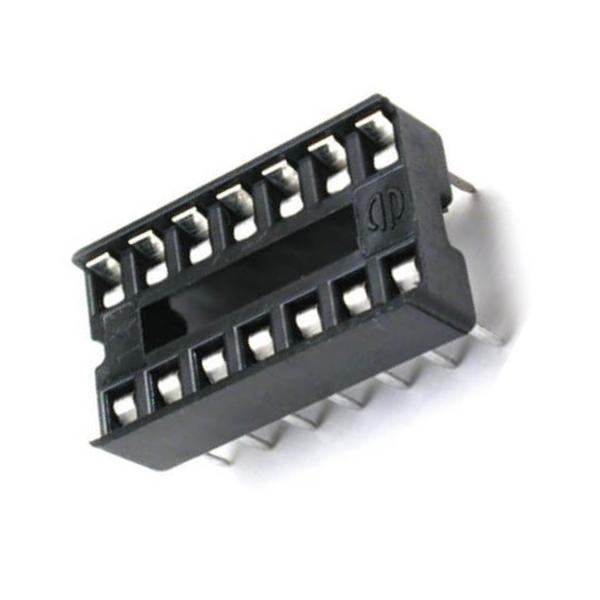

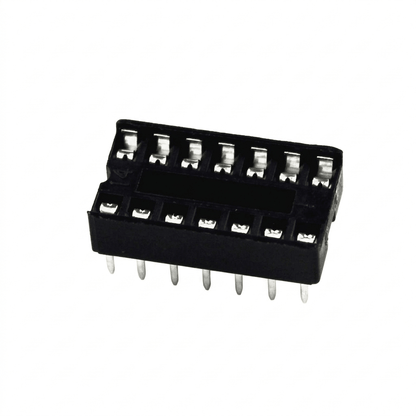

14 Pin IC Socket / Base – DIP (Pack of 2)

SKU: K3JKOOCJXL
The 14 Pin IC Socket / Base – DIP is an electronic component used for securely mounting 14-pin integrated circuits (ICs) onto printed circuit boards without soldering the IC directly. It is designed for DIP (Dual Inline Package) type ICs and provides a reliable and reusable connection for electronic circuits. IC sockets are widely used in electronics prototyping, PCB development,...
Rs. 6.00
Rs. 9.00 Rs. 6.00
Save Rs. 3
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specification:

Product Type: 14 Pin IC Socket / Base
Package Type: DIP (Dual Inline Package)
Number of Pins: 14 Pins
Pin Pitch: 2.54mm (Standard)
Mounting Type: Through Hole PCB Mount
Contact Material: Metal Alloy Contacts
Body Material: Durable Heat-Resistant Plastic
Compatible IC Type: DIP-14 Integrated Circuits

Additional Resources

14 Pin IC Socket / Base – DIP.PDF

FAQ

1. What is a 14 Pin IC Socket / Base used for?

A 14 Pin IC Socket is used to mount and connect 14-pin DIP integrated circuits on PCBs without soldering the IC directly, making replacement and testing easier.

2. Why should an IC socket be used instead of soldering the IC directly?

Using an IC socket protects the IC from heat damage during soldering and allows easy removal or replacement of the IC whenever needed.

3. What type of ICs are compatible with a 14 Pin DIP socket?

The socket is compatible with standard 14-pin DIP (Dual Inline Package) ICs such as logic ICs, timer ICs, operational amplifiers, and microcontroller chips.

4. Can a 14 Pin IC Socket be used for prototyping projects?

Yes, it is widely used in prototyping, educational electronics, repair work, and PCB development projects for secure and reusable IC mounting.

5. What material is commonly used in 14 Pin IC sockets? These sockets are generally made with durable plastic housing and metal contacts that provide reliable electrical connectivity and long service life.

View full product details

The 14 Pin IC Socket / Base – DIP is an electronic component used for securely mounting 14-pin integrated circuits (ICs) onto printed circuit boards without soldering the IC directly. It is designed for DIP (Dual Inline Package) type ICs and provides a reliable and reusable connection for electronic circuits.

IC sockets are widely used in electronics prototyping, PCB development, repair work, and educational projects. By using a socket, the integrated circuit can be easily inserted, removed, or replaced whenever required. This helps protect sensitive ICs from heat damage during soldering and simplifies maintenance and troubleshooting.

The socket typically features a durable plastic body with high-quality metal contacts that ensure proper electrical conductivity and firm IC placement. The standard pin spacing makes it compatible with most DIP-14 integrated circuits used in digital electronics, analog circuits, timers, operational amplifiers, and microcontroller applications.
