Specifications:

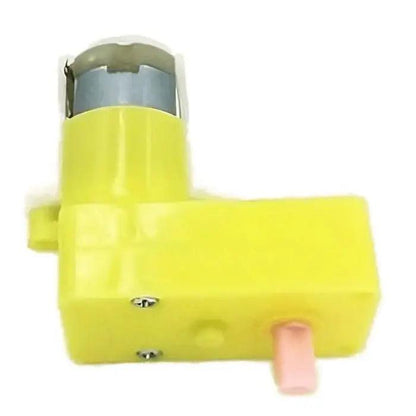

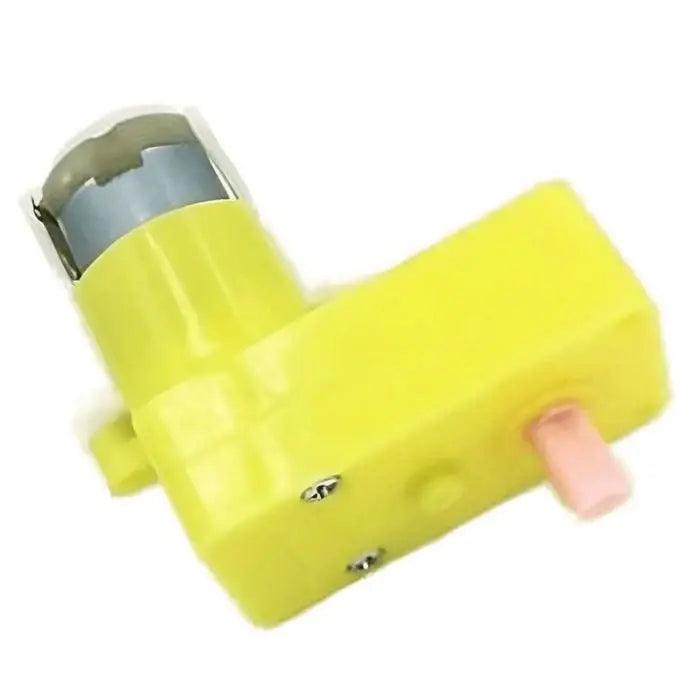

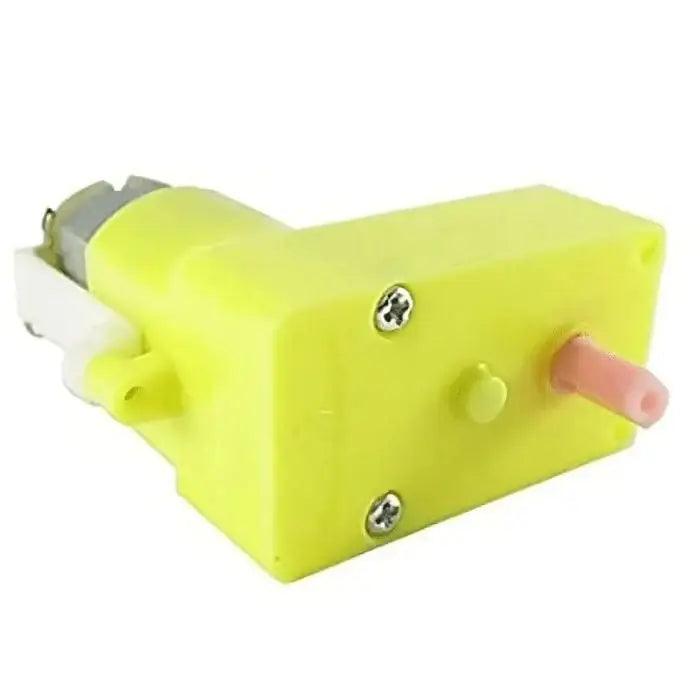

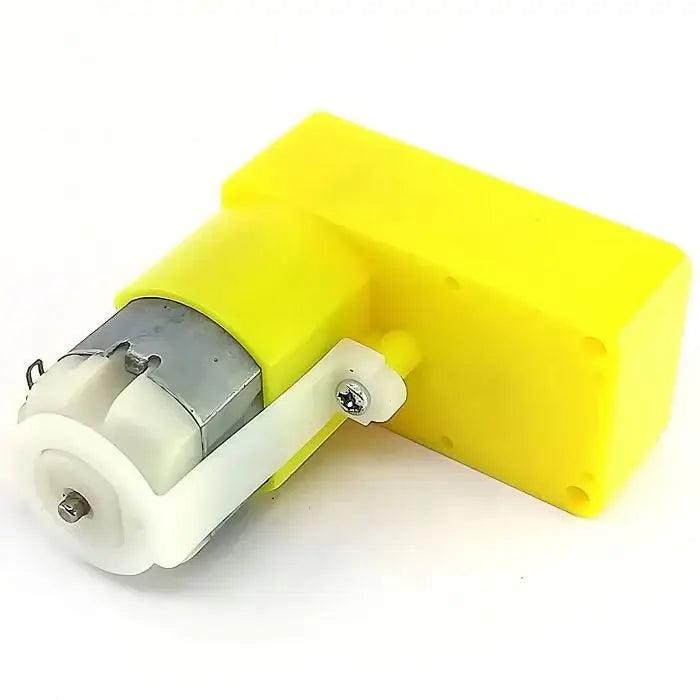

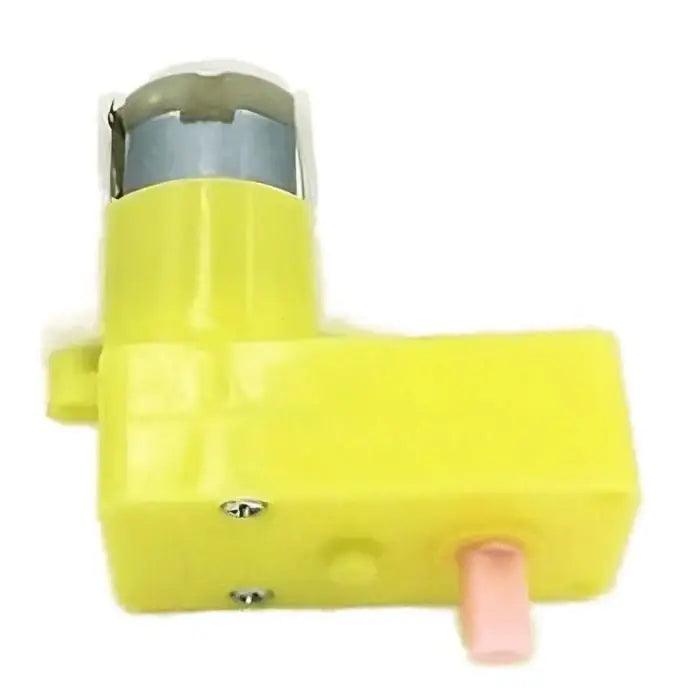

Design: L-Shaped Configuration
Motor Category: BO (Battery Operated)
Voltage Range: 3V – 12V DC
Rated Speed: 150 RPM
Housing Color: Yellow

1. What is the main advantage of the "L-Shape" design compared to a straight BO motor?

The L-shape design (also called a "side-shaft" motor) is primarily used for space management. By placing the motor at a right angle to the shaft, you can mount it in narrower chassis or use it in designs where the motor body needs to sit parallel to the wheels, allowing for a more compact robot footprint.

2. What is the typical operating voltage for a 150 RPM BO motor?

Most standard BO motors are designed to operate between 3V and 9V DC. While they can often handle up to 12V, running them at the lower end (3V–6V) is common for small battery-powered DIY projects to prevent overheating and prolong the life of the plastic internal gears.

3. Does the 150 RPM rating change depending on the voltage?

Yes. The 150 RPM (revolutions per minute) is usually the "no-load" speed at a specific voltage (typically 6V or 9V). If you provide less voltage, the speed will decrease; if the motor is under a heavy load (like a heavy robot), the actual RPM will be lower than the rated maximum.

4. Can these motors be used with a microcontroller like an Arduino?

Yes, but not directly. Because these motors draw more current than an Arduino pin can provide, you must use a motor driver (such as the L298N or L293D). The driver acts as a bridge, using the Arduino's signal to control the power coming from a separate battery pack.

5. Are the gears inside the L-Shape BO motor made of metal or plastic?

Standard BO motors typically use plastic gears. This makes them very affordable and lightweight, which is perfect for hobbyist robotics. However, because the gears are plastic, they are best suited for lighter projects and may strip if the motor is forced to stall under high torque.
