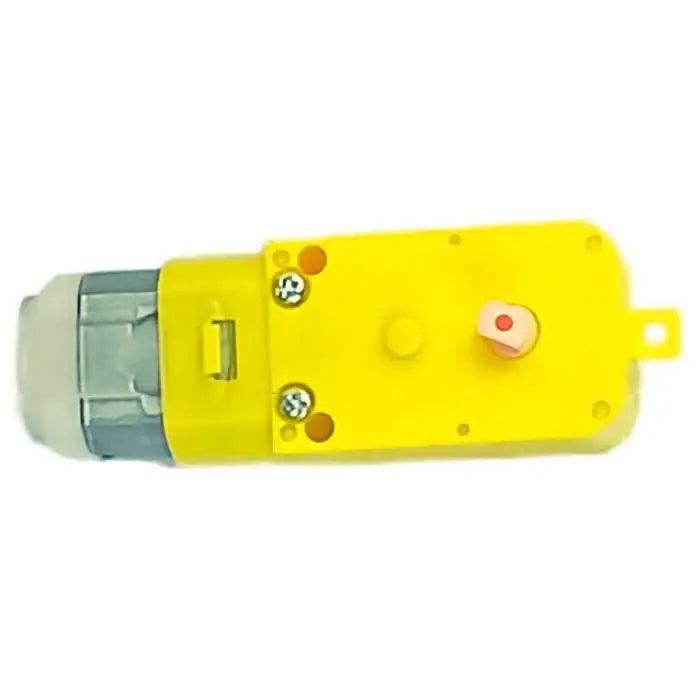

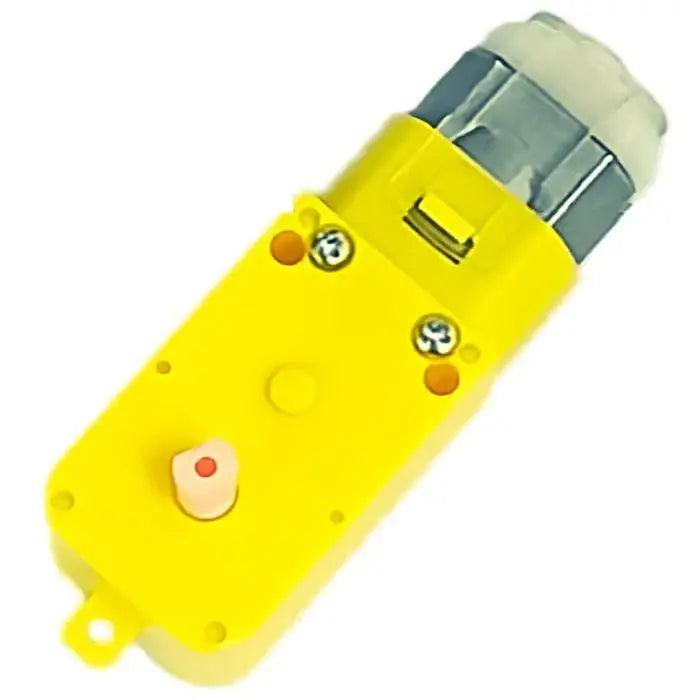

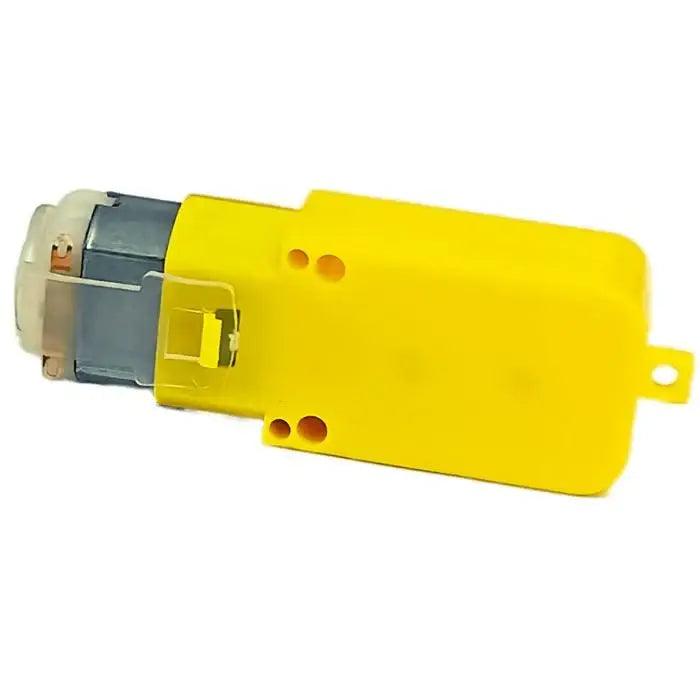

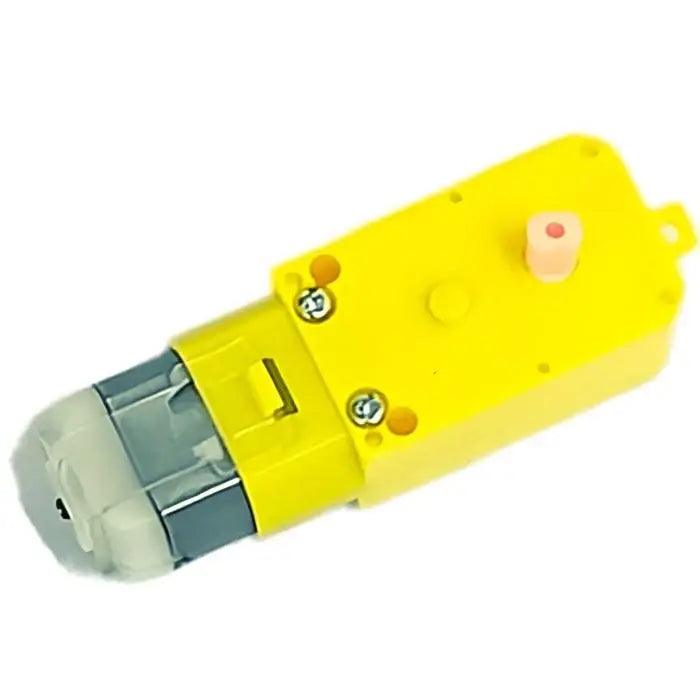

150 RPM Single Shaft BO Motor

SKU: I37QQQ3GL9
The 150 RPM straight single shaft BO motor delivers reliable torque and speed even at lower operating voltages, which is a key advantage of this series of BO motors. Its small shaft, compatible with matching wheels, provides an optimized design for various robotics or automation projects. The motor’s lightweight body and pre-drilled mounting holes make it suitable for in-circuit placement...
Rs. 59.00
Rs. 79.00 Rs. 59.00
Save Rs. 20
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Operating Voltage: 3–12 V DC
Shaft Length: 8.5 mm
Shaft Diameter: 5.5 mm
No-Load Current: 40–180 mA
Rated Speed (After Gear Reduction): 150 RPM
Rated Torque: 0.35 kg·cm
Weight: 30 g
Dimensions (L × W × H): 55 × 48 × 23 mm

Additional Resources

150 RPM Single Shaft BO Motor.PDF

FAQ

1: What is a 150 RPM Single Shaft BO Motor?

It is a compact DC geared motor with a single output shaft, designed to provide reliable 150 RPM speed with moderate torque for small robotics, automation, and hobby applications.

2: What is the typical operating voltage for this motor?

The motor generally operates within a voltage range of 3–12 V DC, with common rated voltages around 6–9 V depending on the specific model.

3: What is the output torque and current rating of the motor?

This motor typically delivers moderate torque (varies by model, often around 0.3–0.5 kg·cm) and has a no-load current in the range of 40–180 mA.

4: What are the key features of a single shaft BO motor?

The single shaft allows easy attachment of wheels, pulleys, or gears on one side. It is compact, lightweight, and suitable for projects requiring simple mechanical connections.

5: What are common applications for a 150 RPM Single Shaft BO Motor?

It is ideal for small robots, conveyor belts, motorized models, educational kits, and other applications requiring moderate speed and torque with a compact footprint.

View full product details

The 150 RPM straight single shaft BO motor delivers reliable torque and speed even at lower operating voltages, which is a key advantage of this series of BO motors. Its small shaft, compatible with matching wheels, provides an optimized design for various robotics or automation projects. The motor’s lightweight body and pre-drilled mounting holes make it suitable for in-circuit placement and compact assemblies.

This BO motor is a low-cost DC geared solution, serving as an alternative to metal-gear motors. Operating over a voltage range of 3–12 V, it is perfect for building small to medium robots. Its compact size, affordability, and ease of installation make it ideal for DIY enthusiasts and hobbyists. For project integration, you will typically need batteries, switches, wires, soldering tools, and compatible wheels.

Features

  • Cost-effective manufacturing: Made using injection-molding, reducing production costs.
  • Machining-free construction: Eliminates the need for extensive metalworking.
  • Lightweight and low inertia: Enhances efficiency and reduces load on components.
  • Uniformity of parts: Ensures consistent performance across multiple units.
  • Shock and vibration absorption: Elastic compliance allows smooth operation.
  • Low maintenance: Operates with minimal or no lubrication due to inherent material lubricity.
  • Low friction: Reduces wear and improves efficiency.
  • Corrosion-resistant: No plating or protective coatings required.
  • Quiet operation: Ideal for indoor or hobbyist applications.
  • Resilient tolerances: Less critical than metal gears, thanks to the flexible material.
