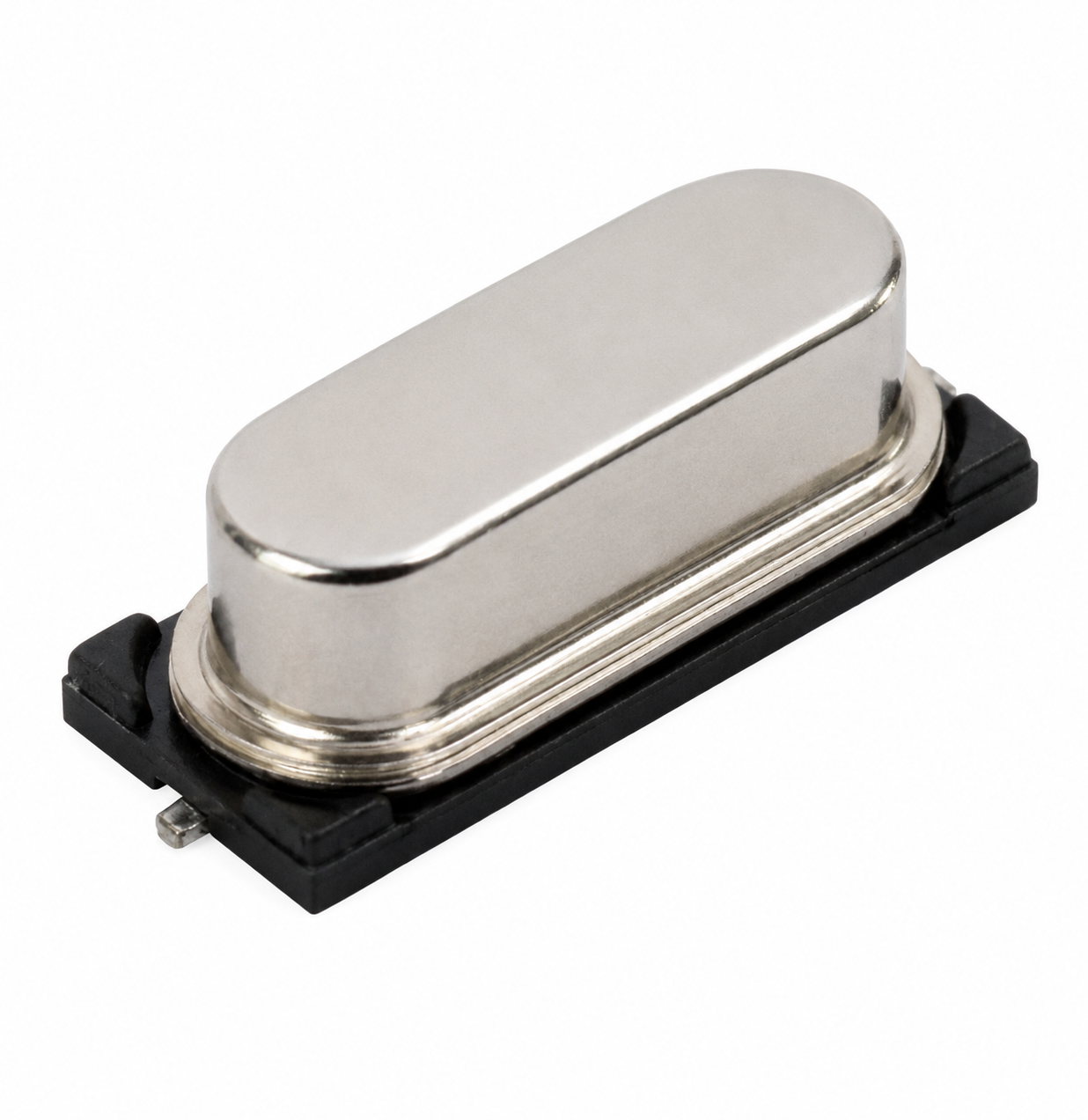

16 Mhz Crystal SMD – HC49SMD – YXC

SKU: J9DYPGFKXO
★★★★ ★ ★
4.9 (136 reviews)
The 16 MHz Crystal SMD – HC49SMD – YXC is a high-precision quartz crystal resonator designed to provide a stable and accurate clock signal for digital electronic systems. Operating at a frequency of 16 MHz, this crystal is widely used in microcontrollers, embedded systems, communication devices, and timing-sensitive applications where precise frequency generation is essential. The HC49SMD package combines the...
Rs. 10.00
Rs. 13.00 Rs. 10.00
Save Rs. 3 Incl. GST (No Hidden Charges)
Sold out
Tax included. Shipping calculated at checkout.
COD Available
Easy Return
Quality Assured
12 people are viewing this right now
Secure Checkout With
Bulk Orders Available
Special Pricing for Schools, Colleges & Businesses
Contact Us
Free Delivery for all orders above ₹999
Shop for ₹999 or more and get FREE delivery
across India.
FREE
View full product details
Same Day Dispatch Order before 2PM
Pan India Delivery Shipping in 24-48H
Secure Packaging Safe & Damage Free
Dedicated Support Expert Assistance

The 16 MHz Crystal SMD – HC49SMD – YXC is a high-precision quartz crystal resonator designed to provide a stable and accurate clock signal for digital electronic systems. Operating at a frequency of 16 MHz, this crystal is widely used in microcontrollers, embedded systems, communication devices, and timing-sensitive applications where precise frequency generation is essential.

The HC49SMD package combines the proven reliability of the traditional HC49 crystal design with the convenience of surface-mount technology. Manufactured by YXC, this crystal offers excellent frequency stability, low power consumption, and dependable long-term performance, making it suitable for both commercial and industrial electronic applications.

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Product Type: Quartz Crystal Resonator
Manufacturer: YXC
Frequency: 16 MHz
Package Type: HC49SMD (Surface Mount)
Mounting Type: SMD/SMT
Oscillation Mode: Fundamental Mode
Frequency Stability: High Stability
Load Capacitance: Typically 18pF to 22pF
Operating Temperature Range: Typically -20°C to +70°C

Additional Resources

16 Mhz Crystal SMD.PDF

FAQ

  1. What is the operating frequency of the HC49SMD crystal?

    The HC49SMD crystal operates at 16 MHz, providing a stable and accurate clock signal for microcontrollers, processors, and digital electronic circuits.
  2. What is the purpose of a 16 MHz crystal in electronic systems?

    A 16 MHz crystal generates precise timing pulses that serve as a clock source for microcontrollers, communication devices, timers, counters, and other digital systems.
  3. What is the HC49SMD package?

    The HC49SMD package is a surface-mount version of the popular HC49 crystal package, combining the reliability of traditional crystal designs with the advantages of SMD assembly.
  4. Which devices commonly use a 16 MHz HC49SMD crystal?

    It is widely used in ATmega-based microcontrollers, Arduino-compatible boards, embedded systems, communication modules, industrial controllers, and digital timing circuits
    .
  5. What are the advantages of using the HC49SMD crystal?

    The HC49SMD crystal offers high frequency stability, reliable long-term performance, low power consumption, compact PCB mounting, and compatibility with automated assembly processes, making it ideal for modern electronic designs.
