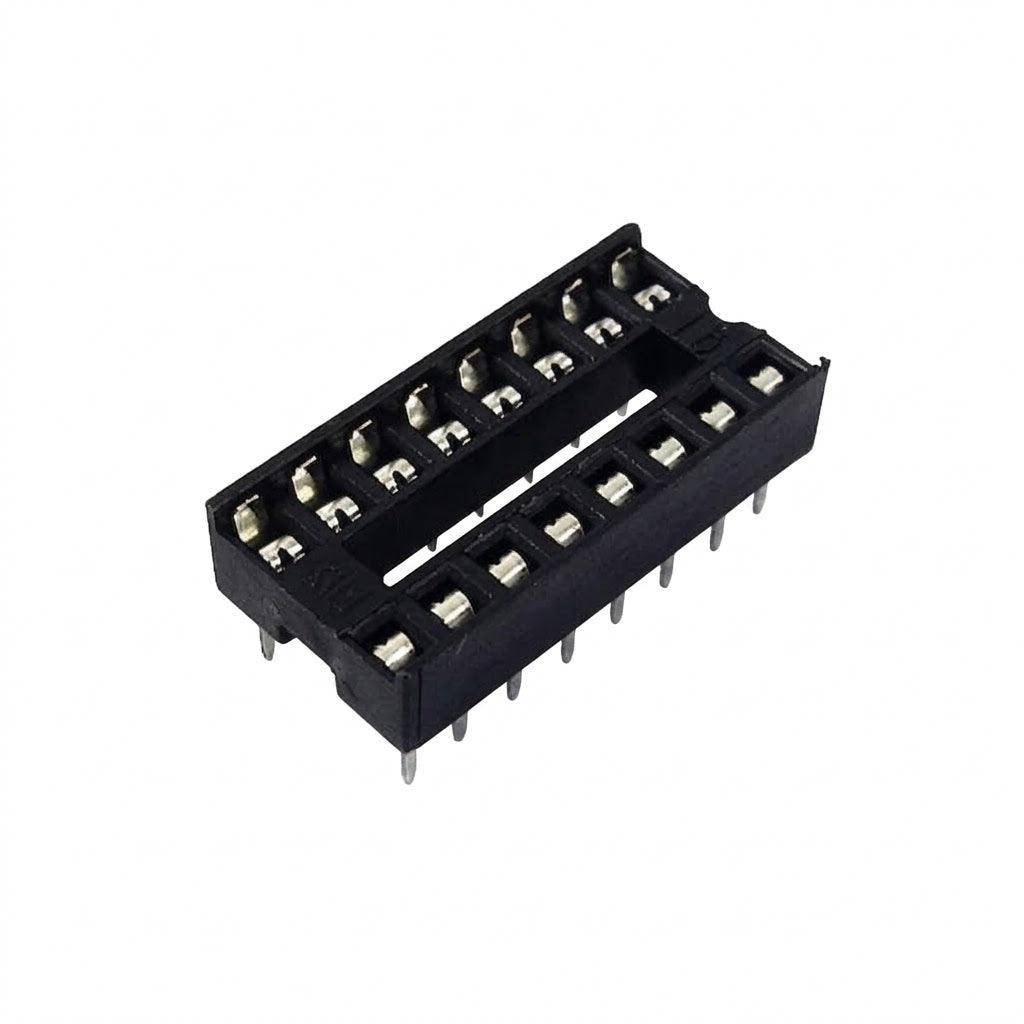

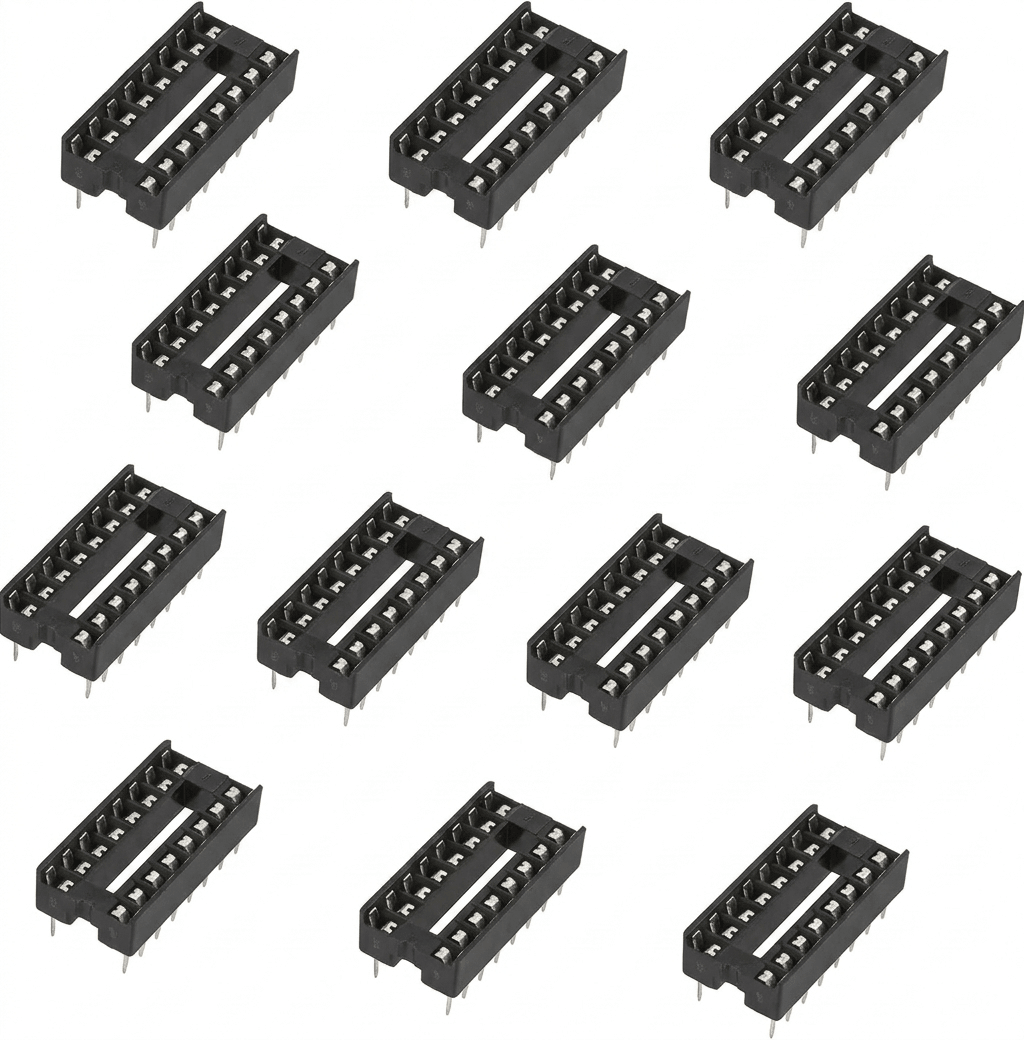

16 Pin IC Socket / Base – DIP (Pack of 2)

SKU: FZ7D4N93K0
The 16 Pin IC Socket / Base – DIP is a reliable electronic component used for mounting 16-pin integrated circuits onto printed circuit boards (PCBs). It allows ICs to be inserted and removed easily without soldering the IC directly to the board, making it highly useful for prototyping, testing, repair, and maintenance applications. Designed for DIP (Dual Inline Package) ICs,...
Rs. 7.00
Rs. 9.00 Rs. 7.00
Save Rs. 2
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Product Type: IC Socket / IC Base
Package Compatibility: DIP-16 (Dual Inline Package)
Number of Pins: 16 Pins
Pin Pitch: 2.54mm Standard
Mounting Type: Through Hole PCB Mount
Body Material: Heat-Resistant Plastic
Contact Material: Metal Alloy / Phosphor Bronze Contacts
Contact Finish: Nickel / Tin Plated
Contact Type: Dual Wipe / Precision Contact
Color: Black

Additional Resources

16 Pin IC Socket / Base – DIP.PDF

FAQ

1. What is a 16 Pin IC Socket / Base – DIP used for?

A 16 Pin IC Socket is used to securely mount 16-pin DIP integrated circuits on PCBs while allowing easy insertion and removal of the IC without direct soldering.

2. Why is a 16 Pin IC socket preferred in circuit design?

It protects the IC from heat damage during soldering and makes IC replacement, testing, and maintenance much easier.

3. Which integrated circuits are compatible with a 16 Pin DIP socket?

The socket is compatible with standard 16-pin DIP ICs such as driver ICs, logic ICs, microcontrollers, counters, and interface ICs.

4. Can a 16 Pin IC Socket be reused multiple times?

Yes, the socket is reusable and supports repeated insertion and removal of compatible DIP-16 ICs without damaging the PCB.

5. Where are 16 Pin IC sockets commonly used?

These sockets are commonly used in PCB prototyping, Arduino projects, industrial electronics, embedded systems, educational kits, and electronic repair applications.

View full product details

The 16 Pin IC Socket / Base – DIP is a reliable electronic component used for mounting 16-pin integrated circuits onto printed circuit boards (PCBs). It allows ICs to be inserted and removed easily without soldering the IC directly to the board, making it highly useful for prototyping, testing, repair, and maintenance applications.

Designed for DIP (Dual Inline Package) ICs, this socket is commonly used with driver ICs, logic ICs, counters, microcontrollers, interface ICs, and many other 16-pin electronic components. Using an IC socket helps protect sensitive ICs from heat damage during soldering and simplifies replacement whenever an IC needs to be upgraded or repaired.

The socket features a durable heat-resistant plastic body along with high-quality metal contact terminals that ensure secure electrical connections and stable IC placement. Its standard 2.54mm pin spacing provides compatibility with most DIP-16 integrated circuits and PCB layouts used in electronic projects.
