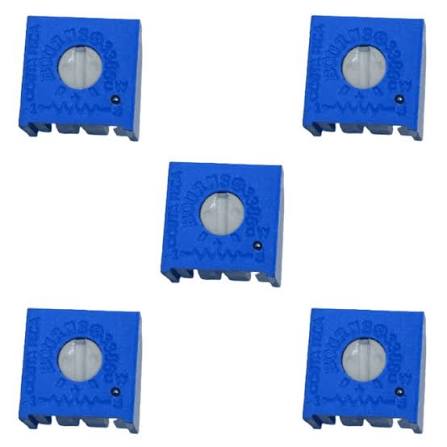

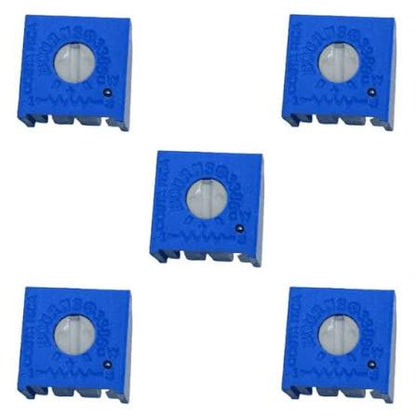

1K Ohm Trimmer Pot - 3386P

SKU: UKD3NL1M7B
★★★★ ★ ★
4.7 (34 reviews)
The 3386P 1K Ohm Trimmer Potentiometer is a compact, single-turn adjustable resistor designed for precise calibration and tuning of electronic circuits. With a resistance value of 1KΩ, this trimmer allows fine adjustment of voltage levels, current settings, signal gain, timing circuits, and sensor calibration in a wide range of electronic applications. The 3386P features a top-adjustment screw mechanism that enables...
Rs. 18.00
Rs. 22.00 Rs. 18.00
Save Rs. 4 Incl. GST (No Hidden Charges)
Sold out
Tax included. Shipping calculated at checkout.
COD Available
Easy Return
Quality Assured
12 people are viewing this right now
Secure Checkout With
Bulk Orders Available
Special Pricing for Schools, Colleges & Businesses
Contact Us
Free Delivery For All Prepaid Orders Above ₹999
Shop for ₹999 or more and get FREE delivery
across India.
FREE
View full product details
Same Day Dispatch Order before 2PM
Pan India Delivery Shipping in 24-48H
Secure Packaging Safe & Damage Free
Dedicated Support Expert Assistance

The 3386P 1K Ohm Trimmer Potentiometer is a compact, single-turn adjustable resistor designed for precise calibration and tuning of electronic circuits. With a resistance value of 1KΩ, this trimmer allows fine adjustment of voltage levels, current settings, signal gain, timing circuits, and sensor calibration in a wide range of electronic applications.

The 3386P features a top-adjustment screw mechanism that enables easy and accurate resistance adjustment using a small screwdriver. Its compact through-hole design makes it suitable for PCB mounting in industrial equipment, power supplies, communication devices, instrumentation, and DIY electronics projects.

Known for its reliability, stability, and long adjustment life, the 3386P trimmer potentiometer is widely used by engineers, students, and electronics hobbyists.

Key Features

  • 1KΩ trimmer potentiometer
  • 3386P series design
  • Single-turn adjustment mechanism
  • Top-adjust screw configuration
  • Compact PCB-mount package
  • Precise resistance adjustment
  • Stable and reliable performance
  • Durable cermet resistive element
  • Low contact resistance variation
  • Easy screwdriver adjustment
  • Through-hole mounting
  • Suitable for calibration and tuning applications
  • Long operational life
  • Ideal for analog and digital circuits

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Product Type: Trimmer Potentiometer
Model: 3386P
Resistance Value: 1KΩ (1000 Ohms)
Resistance Tolerance: ±10%
Adjustment Type: Single Turn
Adjustment Orientation: Top Adjust
Resistive Element: Cermet
Power Rating: 0.5W (Typical)
Maximum Operating Voltage: 200V DC (Typical)
Temperature Coefficient: ±100ppm/°C Typical
Rotation Angle: Approximately 270°
Mounting Type: Through-Hole PCB Mount
Terminal Configuration: 3-Pin
Housing Material: Plastic
Adjustment Tool: Small Flat Screwdriver
Operating Temperature: -55°C to +125°C
Storage Temperature: -55°C to +125°C
Dimensions: Approximately 9.5mm × 9.5mm × 4.8mm
Weight: Approximately 1g – 2g

Additional Resources

1K Trimpot.PDF

FAQ

1. What is the 3386P 1K Ohm Trimmer Potentiometer used for?

It is used for fine adjustment and calibration of voltage, current, gain, timing, and other circuit parameters in electronic applications.

2. What does the 1KΩ rating mean?

The 1KΩ rating indicates that the trimmer provides an adjustable resistance range from approximately 0Ω to 1000Ω.

3. How is the resistance adjusted on the 3386P trimmer?

The resistance is adjusted using a small screwdriver that turns the top-mounted adjustment screw.

4. Can the 3386P trimmer be mounted directly on a PCB?

Yes, the 3386P is designed for through-hole PCB mounting and can be soldered directly onto circuit boards.

5. What types of projects commonly use the 3386P trimmer potentiometer?

It is commonly used in power supplies, sensor calibration circuits, audio electronics, instrumentation equipment, industrial control systems, and Arduino-based projects.
