1M Ohm Cermet

SKU: 9H6D4544JS
★★★★ ★ ★
4.1 (102 reviews)

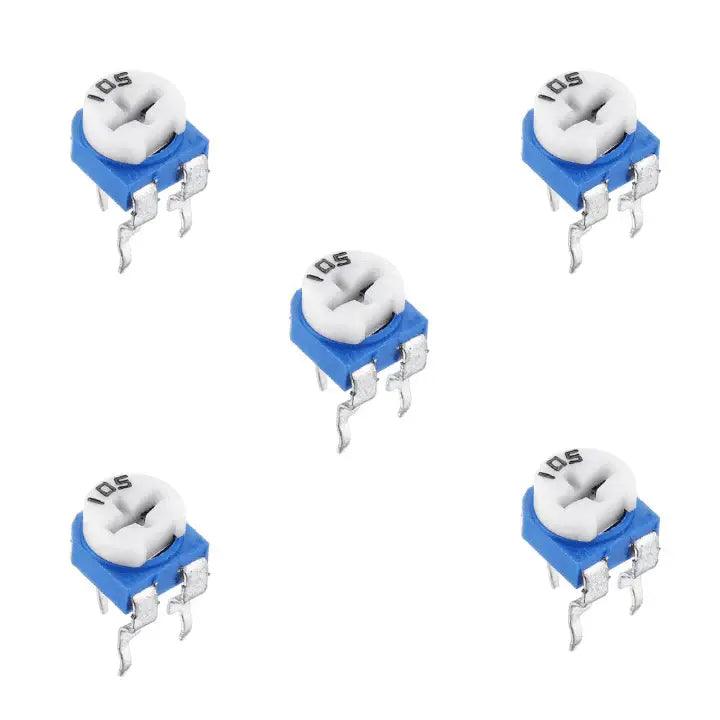

Cermet preset is a compact variable resistor and PCB mountable with 3 terminal pins. The voltage between the terminal varies as the preset is rotated. The Variable resistors are used for variating voltage as per the need in a circuit. The outer two pins are connected to Vcc and 0V, and center pin outputs a variable voltage between 0v and Vcc...
Rs. 8.00
Rs. 11.00 Rs. 8.00
Save Rs. 3 Incl. GST (No Hidden Charges)
Sold out
Tax included. Shipping calculated at checkout.
COD Available
Easy Return
Quality Assured
12 people are viewing this right now
Secure Checkout With
Bulk Orders Available
Special Pricing for Schools, Colleges & Businesses
Contact Us
Free Delivery For All Prepaid Orders Above ₹999
Shop for ₹999 or more and get FREE delivery
across India.
FREE
View full product details
Same Day Dispatch Order before 2PM
Pan India Delivery Shipping in 24-48H
Secure Packaging Safe & Damage Free
Dedicated Support Expert Assistance

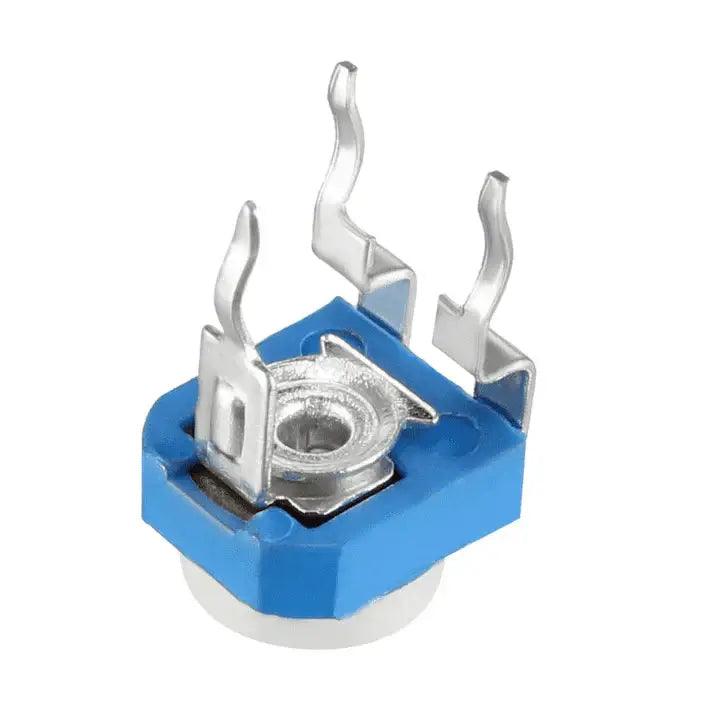

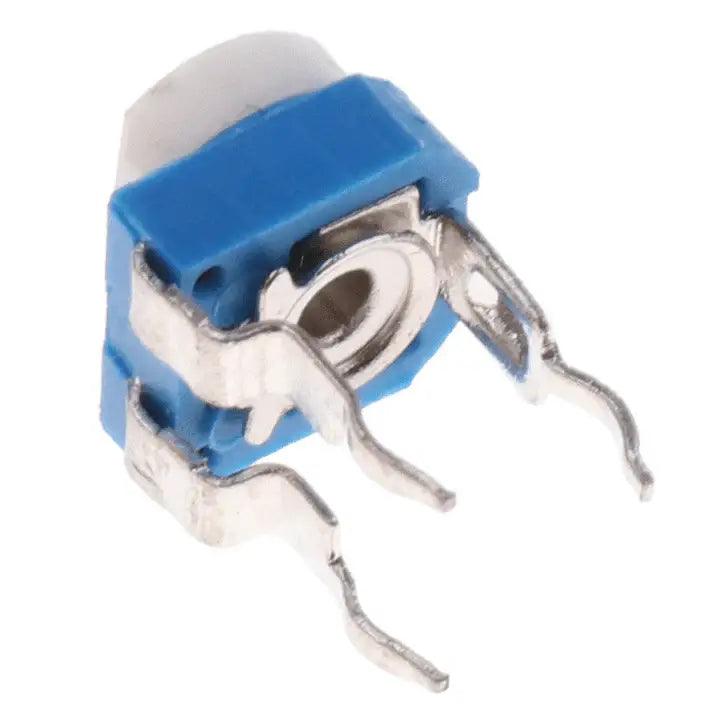

Cermet preset is a compact variable resistor and PCB mountable with 3 terminal pins. The voltage between the terminal varies as the preset is rotated.

The Variable resistors are used for variating voltage as per the need in a circuit. The outer two pins are connected to Vcc and 0V, and center pin outputs a variable voltage between 0v and Vcc as the rotary cermet is rotated.

Applications:

  • Can be used as a Voltage divider
  • Can use it to obtain an adjustable output voltage

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Resistance: 1 MΩ
Number of Turns: 1 (Single-turn)
Resistance Tolerance: ±10%
Mounting Type: Through-hole
Lead Diameter: 0.5 mm

Additional Resources

1M Cermet.PDF

FAQ

1. What is the resistance value of this cermet potentiometer ?

Each potentiometer has a resistance of 1MΩ (1 Mega Ohm), suitable for high-resistance adjustment and signal control.

2. What type of potentiometer is included in this pack ?

It is a cermet trimmer potentiometer, known for its high stability, precision, and durability.

3. How is the resistance adjusted in this potentiometer ?

The resistance is adjusted using a small screwdriver, which moves the internal wiper along the resistive track.

4. What is the mounting type of this potentiometer ?

It features through-hole mounting, making it easy to install on PCBs.

5. What are the common applications of a 1M cermet potentiometer ?

It is commonly used in voltage divider circuits, calibration, signal tuning, analog circuits, and electronic prototyping.
