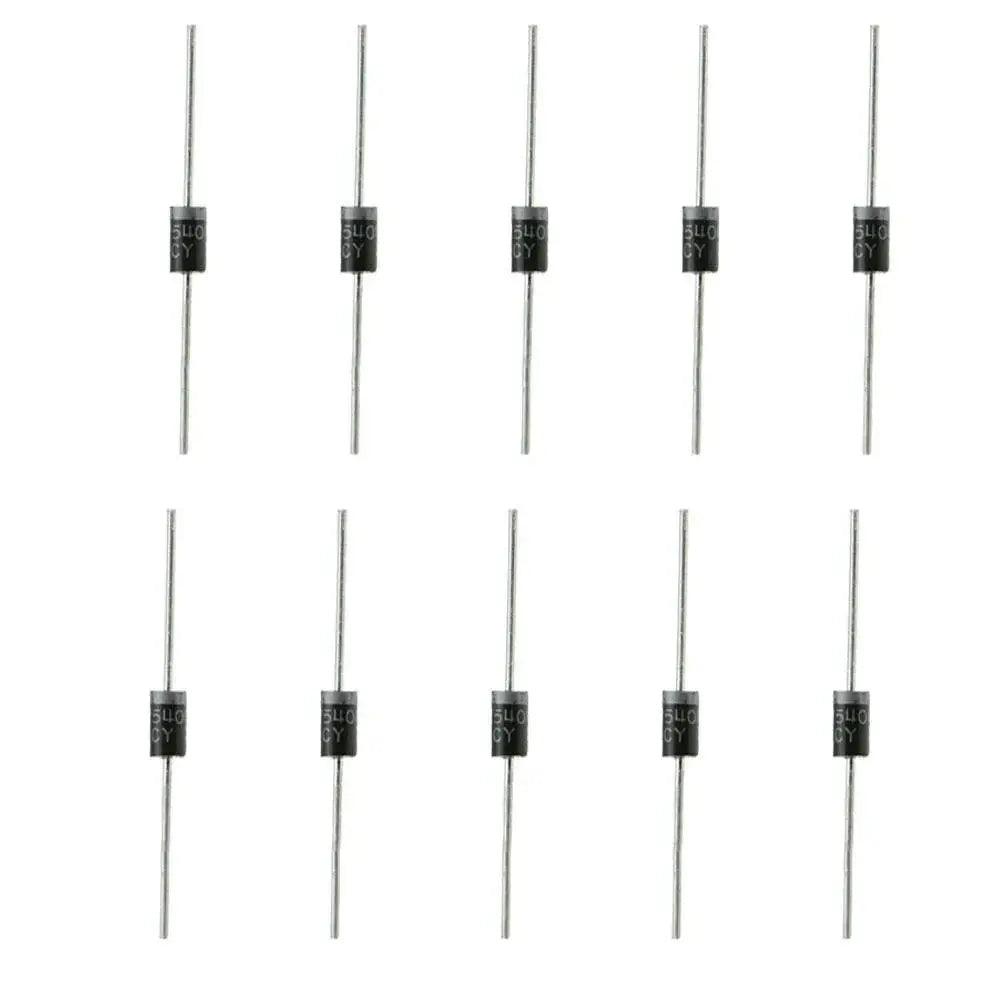

1N5819 Diode (Pack of 2)

SKU: 03RGYJSKEX
The 1N5819 is a Schottky diode with a low forward voltage drop and high switching speed. It is commonly used in high-frequency applications like Inverters, DC-DC converters etc. The 1N5819 axial leaded Schottky rectifier has been optimized for very low forward voltage drop, with moderate leakage. Typical applications are in switching power supplies, converters, free-wheeling diodes, and reverse battery protection.  A diode is a device that allows...
Rs. 7.00
Rs. 12.00 Rs. 7.00
Save Rs. 5
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Model:1N5819
RMS Reverse Voltage: 28V
Forward Voltage Drop: 0.6V
Peak Surge Forward Current: 25A
Maximum Repetitive Peak Reverse Voltage: 40V
Maximum DC Blocking Voltage: 40V
Dimensions: 1 × 1 × 1 cm
Weight: 5 g

Additional Resources

1N5819 Diode.PDF

FAQ

1. What is the 1N5819 diode used for?

The 1N5819 diode is a Schottky diode commonly used for fast switching and low voltage drop applications, especially in power supply circuits.

2. What makes the 1N5819 different from regular diodes?

Unlike standard silicon diodes, the 1N5819 has a low forward voltage drop (around 0.2V–0.6V) and faster switching speed, resulting in improved efficiency and reduced power loss.

3. What are the key specifications of the 1N5819 diode?

  • Forward Current: Up to 1A
  • Reverse Voltage: Up to 40V
  • Low forward voltage drop: ~600 mV at 1A

4. Where is the 1N5819 diode commonly used?

It is widely used in:

  • Switching power supplies (SMPS)
  • DC-DC converters
  • Reverse polarity protection
  • Solar and battery circuits
  • Arduino and embedded systems

5. What is included in this pack?

The package contains 2 pieces of 1N5819 diodes.

View full product details

The 1N5819 is a Schottky diode with a low forward voltage drop and high switching speed. It is commonly used in high-frequency applications like Inverters, DC-DC converters etc. The 1N5819 axial leaded Schottky rectifier has been optimized for very low forward voltage drop, with moderate leakage. Typical applications are in switching power supplies, converters, free-wheeling diodes, and reverse battery protection.

A diode is a device that allows current flow through only one direction. That is the current should always flow from the Anode to the cathode.

Applications of Diode

  • Can be used to prevent the reverse polarity problem
  • High-Frequency Inverters
  • Used as a protection device
  • Current flow regulators
  • Polarity Protection applications
