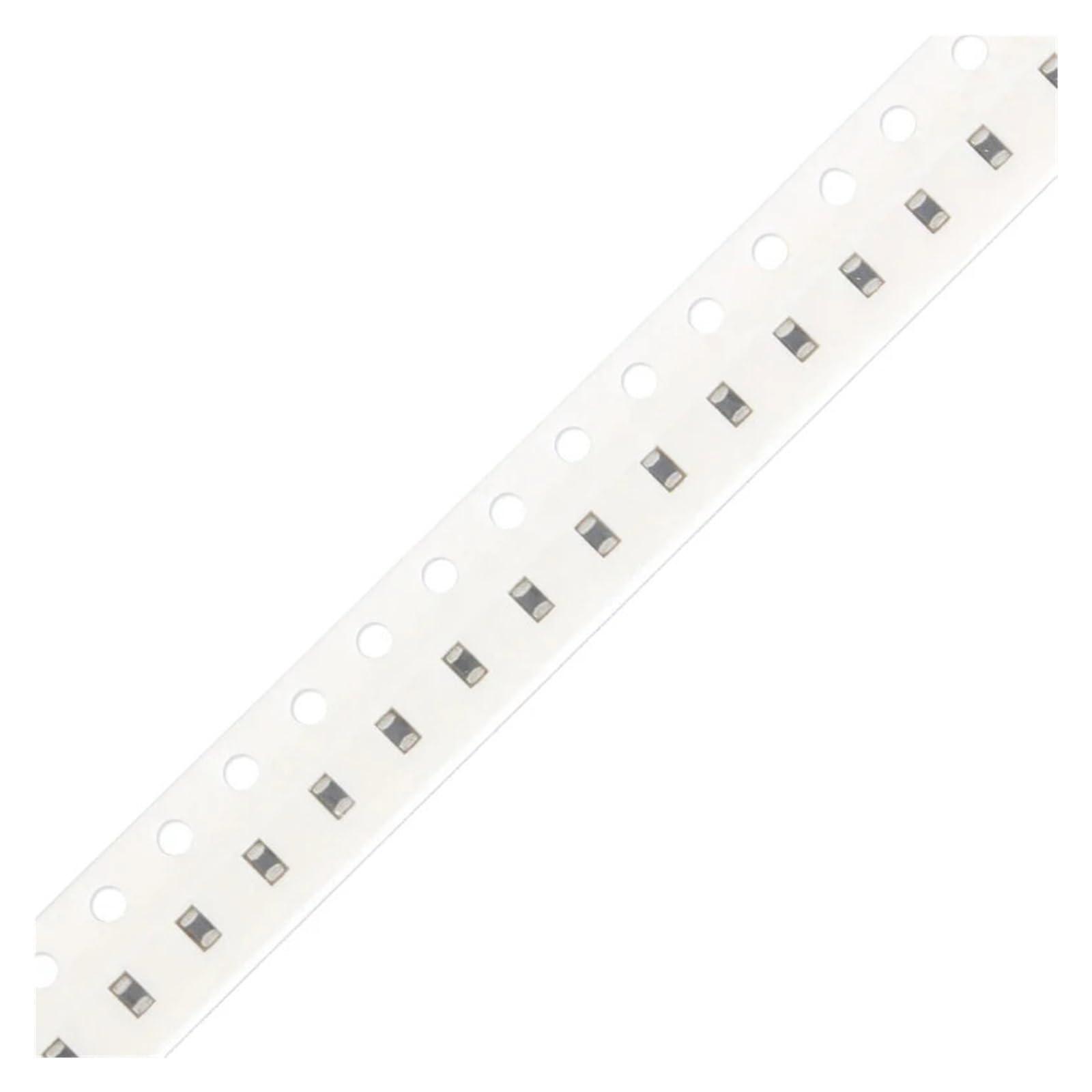

2.2uH 2.4A 0806 SMD Inductor 20% IMTF201610S2R2MCTB

SKU: M13PFSJFDH
The 2.2µH 2.4A 0806 SMD Inductor (IMTF201610S2R2MCTB) is a compact, high-performance surface-mount power inductor designed for modern electronic circuits that require efficient energy storage and noise filtering. With an inductance of 2.2 microhenries and a current rating of up to 2.4A, it is ideal for high-frequency switching applications in compact devices. Its 0806 (2016 metric) package size allows it to...
Rs. 6.00
Rs. 9.00 Rs. 6.00
Save Rs. 3
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Package Size: 0806 (2016 metric)
Dimensions: ~2.0mm × 1.6mm × 1.0mm
Mounting Type: SMD / SMT
Terminal Material: Nickel barrier with tin plating
Construction: Multilayer ferrite / molded type
Profile: Low height for compact designs

Additional Resources

Inductor.PDF

FAQ

1. What is an inductor?

An inductor is a passive electronic component that stores energy in the form of a magnetic field when electric current flows through it. It is typically made of a coil of wire wound around a core.

2. What is the unit of inductance?

The unit of inductance is the Henry (H), named after Joseph Henry. In practical circuits, smaller units like millihenry (mH) and microhenry (µH) are commonly used.

3. What are the main applications of inductors?

Inductors are used in:

  • Power supplies (SMPS)
  • Filters (to reduce noise)
  • Transformers
  • Oscillators and tuning circuits
  • DC-DC converters

4. How does an inductor behave in AC and DC circuits?

In a DC circuit, an inductor initially resists changes in current but eventually behaves like a short circuit.
In an AC circuit, it continuously opposes changes in current, creating inductive reactance that depends on frequency.

5. What factors affect the value of an inductor?

The inductance value depends on:

  • Number of turns in the coil
  • Core material (air, ferrite, iron)
  • Coil shape and size
  • Spacing between turns
View full product details

The 2.2µH 2.4A 0806 SMD Inductor (IMTF201610S2R2MCTB) is a compact, high-performance surface-mount power inductor designed for modern electronic circuits that require efficient energy storage and noise filtering. With an inductance of 2.2 microhenries and a current rating of up to 2.4A, it is ideal for high-frequency switching applications in compact devices.

Its 0806 (2016 metric) package size allows it to fit into space-constrained PCB designs, making it suitable for portable electronics and embedded systems.

Key Characteristics

  • Inductance: 2.2µH
  • Tolerance: ±20%
  • Rated Current: 2.4A
  • Low DC Resistance (DCR): Improves efficiency
  • High-frequency performance: Suitable for switching regulators
  • Compact size: Ideal for miniaturized electronics
