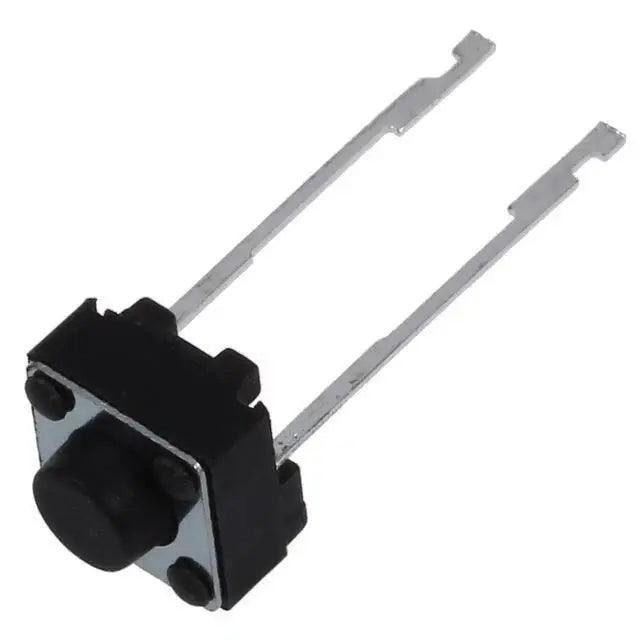

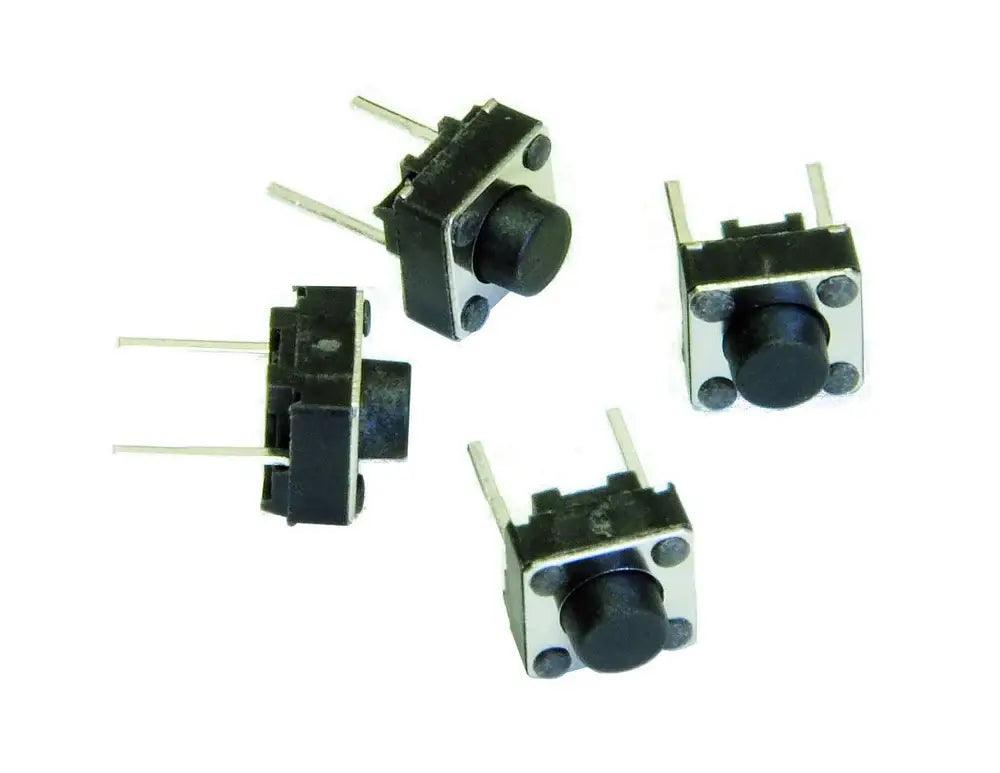

2 Pin Button Switch (Pack of 10)

SKU: Y95W96AD5K
A 2-pin button switch is a type of switch featuring two metal terminals or pins at the back. It is designed for mounting in a panel or circuit board and is typically operated by pressing a button or lever on its front. These switches are widely used in electronic devices such as computers, home appliances, and industrial control systems to...
Rs. 29.00
Rs. 29.00
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Size: 5mm x 5mm x 13mm
Weight: 5 grams

Additional Resources

2 Pin Button Switch.PDF

FAQ

1. What is a 2-pin button switch?

A 2-pin button switch is an electrical component with two metal terminals that can be used to open or close a circuit. It is usually mounted on a panel or PCB and is operated by pressing a button or lever.

2. How does a 2-pin button switch work?

When the button is pressed, the two pins are electrically connected, allowing current to flow. Releasing the button breaks the connection, stopping the current. This momentary or toggle action enables on/off control of circuits.

3. Where are 2-pin button switches commonly used?

They are widely used in computers, home appliances, industrial control systems, robotics, and DIY electronics to control the flow of electricity or activate specific functions.

4. What types of 2-pin switches are available?

Common types include push-button switches, rocker switches, and toggle switches. Each type can have different operating modes, such as momentary (returns to default) or latching (stays in the new state).

5. How are 2-pin switches rated and configured?

2-pin switches are rated for specific voltage and current limits depending on the application. They can be configured as SPST (Single Pole Single Throw), SPDT (Single Pole Double Throw), or DPDT (Double Pole Double Throw), providing flexibility for different circuit designs.

View full product details

A 2-pin button switch is a type of switch featuring two metal terminals or pins at the back. It is designed for mounting in a panel or circuit board and is typically operated by pressing a button or lever on its front. These switches are widely used in electronic devices such as computers, home appliances, and industrial control systems to manage the flow of electricity, turning circuits on or off.

Examples of 2-pin switches include push-button switches, toggle switches, and rocker switches. They are usually compact, making them easy to integrate into various electronic devices and systems.

Each switch is rated for a specific voltage and current, depending on its design and intended application. They can be configured in multiple circuit arrangements, including SPST (Single Pole, Single Throw), SPDT (Single Pole, Double Throw), and DPDT (Double Pole, Double Throw), offering flexibility for different electrical control needs.
