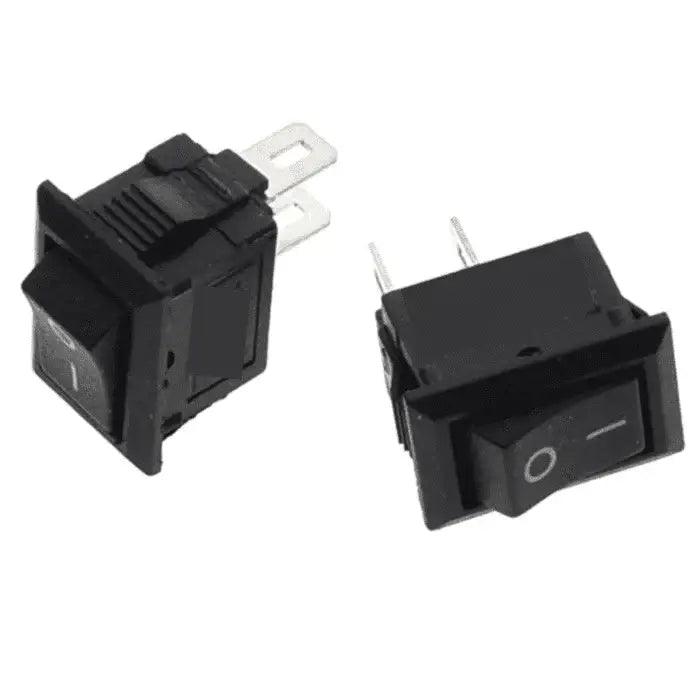

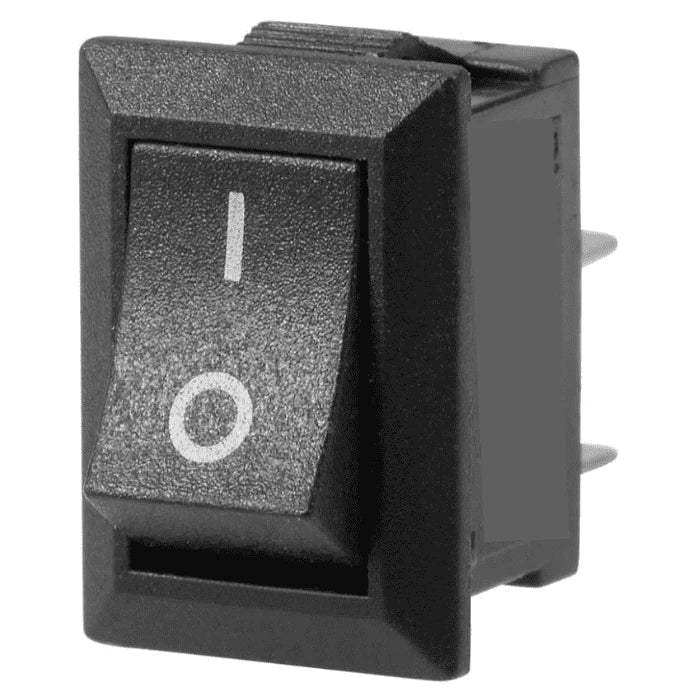

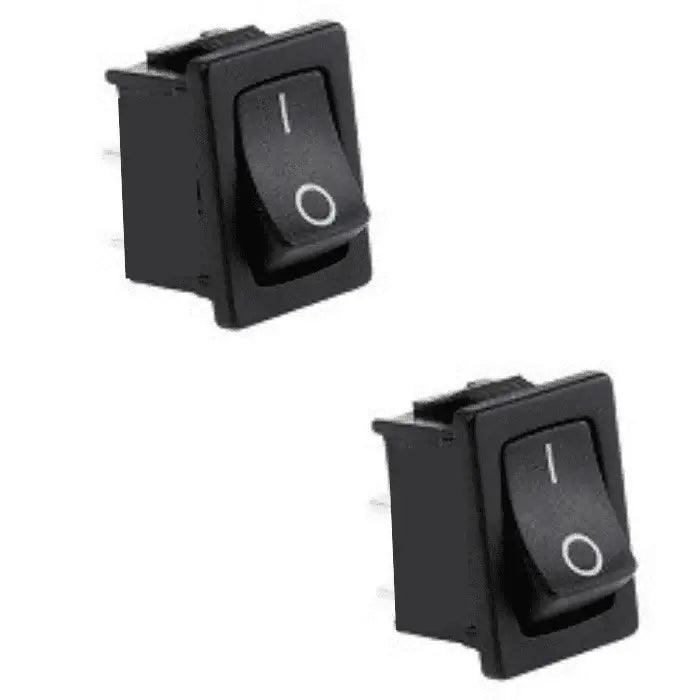

2 Pin Mini On-Off SPST Rocker Switch (19 x 13mm) - Pack of 2

SKU: XNSJZKLGYG
This is a simple SPST (Single Pole Single Throw) On/Off rocker switch designed for a wide range of electronic projects. It features a snap-in design, allowing it to be easily mounted without the need for screws. The switch has two terminals; to use it, simply cut one of the power wires and connect both ends to the switch terminals. The...
Rs. 29.00
Rs. 39.00 Rs. 29.00
Save Rs. 10
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Switch Type: SPST (Single Pole Single Throw)
Rated Voltage: 250V
Rated Current: 6A
Contact Resistance: ≤ 50 mΩ
Insulation Resistance: 100 MΩ
Dielectric Strength: 1500V AC for 1 minute
Dimensions: 19 Ă— 12 Ă— 13 mm
Weight: 3 grams (each)

Additional Resources

2 Pin Mini On-Off SPST Rocker Switch.PDF

FAQ

1. What is a 2 Pin Mini On-Off SPST Rocker Switch?

It is a compact electrical switch designed to control power in a circuit. Being an SPST (Single Pole Single Throw) switch, it simply turns a circuit ON or OFF using two terminals.

2. How does this rocker switch work?

The switch operates in two positions—ON and OFF. When pressed to ON, it completes the circuit and allows current to flow. When switched OFF, it breaks the circuit and stops the flow of electricity.

3. What are the typical applications of this switch?

This mini rocker switch is commonly used in:

  • Electronics projects
  • Robotics and DIY kits
  • Small appliances
  • LED circuits
  • Power control panels

4. What are the advantages of this mini rocker switch?

  • Compact size (19 Ă— 13 mm) suitable for small enclosures
  • Easy snap-in mounting without screws
  • Simple two-pin connection
  • Reliable ON/OFF operation
  • Cost-effective, especially in a pack of 2

5. What should be considered before using this switch?

Ensure the voltage and current ratings match your application. Properly solder the wires to the terminals, and always switch off the power supply before installation to avoid electrical hazards.

View full product details

This is a simple SPST (Single Pole Single Throw) On/Off rocker switch designed for a wide range of electronic projects. It features a snap-in design, allowing it to be easily mounted without the need for screws. The switch has two terminals; to use it, simply cut one of the power wires and connect both ends to the switch terminals.

The KCD1-108 On/Off Rocker Switch (6A, 250V AC) is ideal for controlling power in electronic circuits, robotics, and general-purpose applications. It is designed to handle relatively high loads while maintaining a compact and practical size. The switch operates in two positions—ON and OFF—and remains in the selected position until toggled.

Equipped with two sturdy rear terminals, it allows secure soldering and connection to your circuit. The built-in mounting clips on the top and bottom ensure a firm fit in panels or enclosures without additional hardware.

Clear ON/OFF markings make it easy to identify the current state of the switch during operation.

This rocker switch is suitable for controlling devices such as DC motors in robotics, automotive applications, industrial machinery, water dispensers, and more. With a load rating of 6A at 250V AC, it meets the requirements of most standard applications.

Switching Mode: ON–OFF
Structure: SPST
