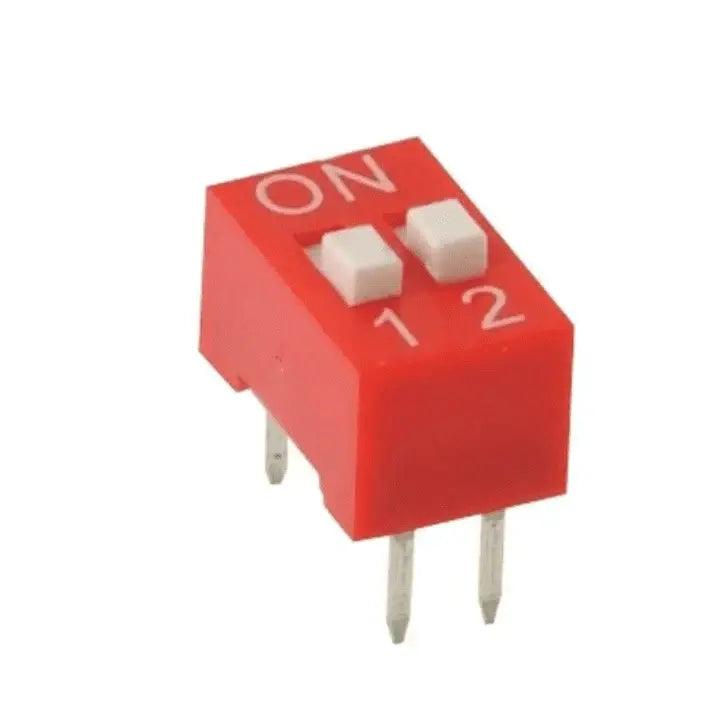

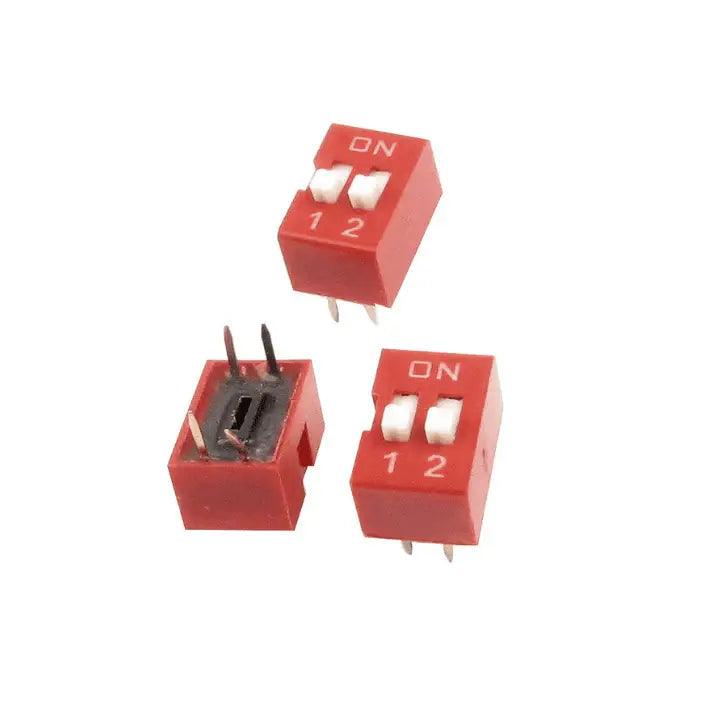

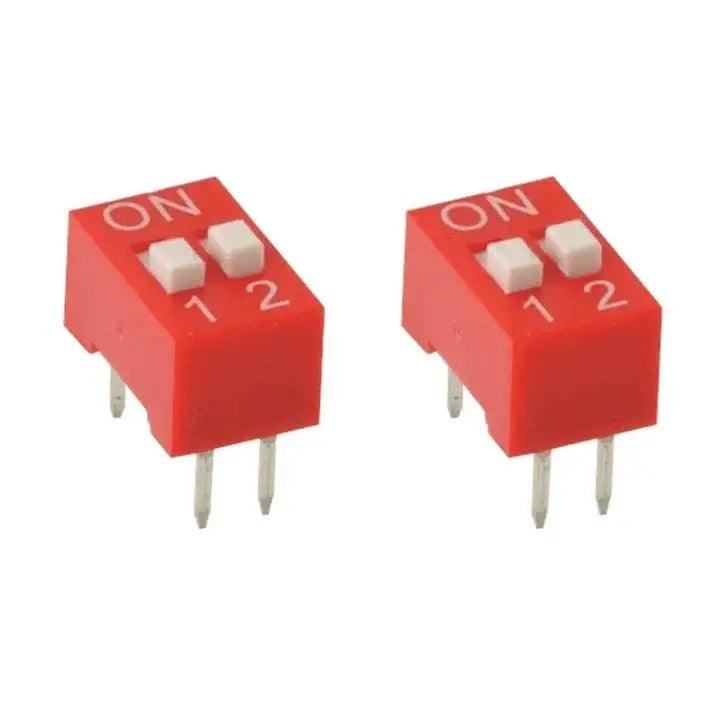

2 Way Slide Switch 2.54mm Pitch

SKU: N5LPSCX0E6
The 2-way DIP switch is designed for reliable performance with a secure snap-in mechanism. It is typically mounted on printed circuit boards (PCBs) along with other electronic components and is used to configure or customize the operation of electronic devices for specific requirements. It is widely used in data processing systems, communication equipment, remote controls, and anti-theft alarm systems, where...
Rs. 15.00
Rs. 19.00 Rs. 15.00
Save Rs. 4
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Rated Voltage: 30V DC
Operating Current: 0.15 A
Number of Pins: 2
Pin Pitch: 2.54 mm
Mounting Type: Through-holz
Operating Temperature Range: -40°C to 85°C
Mechanical & Electrical Life: ≥ 2000 cycles
Dimensions: 6.6 × 9.8 × 6.5 mm
Weight: Approximately 1 gram (each)

Additional Resources

2 Way Slide Switch 2.54mm Pitch .PDF

FAQ

1. What is a 2 Way Slide Switch?

A 2 Way Slide Switch is a compact DIP switch that contains two individual switches in a single unit, allowing simple ON/OFF control for two separate circuit inputs.

2. What does 2.54 mm pitch mean?

The 2.54 mm pitch refers to the standard spacing between the pins, making the switch compatible with most PCBs and breadboards.

3. How does this slide switch work?

Each switch can be slid between ON and OFF positions. When ON, the circuit is completed; when OFF, the circuit is open.

4. Where is this switch commonly used?

It is widely used in:

  • PCB and electronics projects
  • Microcontroller configuration settings
  • Communication devices
  • Embedded systems and control circuits

5. What are the advantages of this switch?

  • Compact and space-saving design
  • Easy manual control of circuit inputs
  • Reliable and durable operation
  • Standard pin spacing for easy integration
  • Pack of 2 for multiple uses
View full product details

The 2-way DIP switch is designed for reliable performance with a secure snap-in mechanism. It is typically mounted on printed circuit boards (PCBs) along with other electronic components and is used to configure or customize the operation of electronic devices for specific requirements. It is widely used in data processing systems, communication equipment, remote controls, and anti-theft alarm systems, where manual configuration or programming is needed.

Applications:

  • Commonly used in circuit boards, breadboards, and PCB-based projects
  • Ideal for setting configurations and control inputs
  • Suitable as a toggle or ON/OFF switch in various electronics projects
