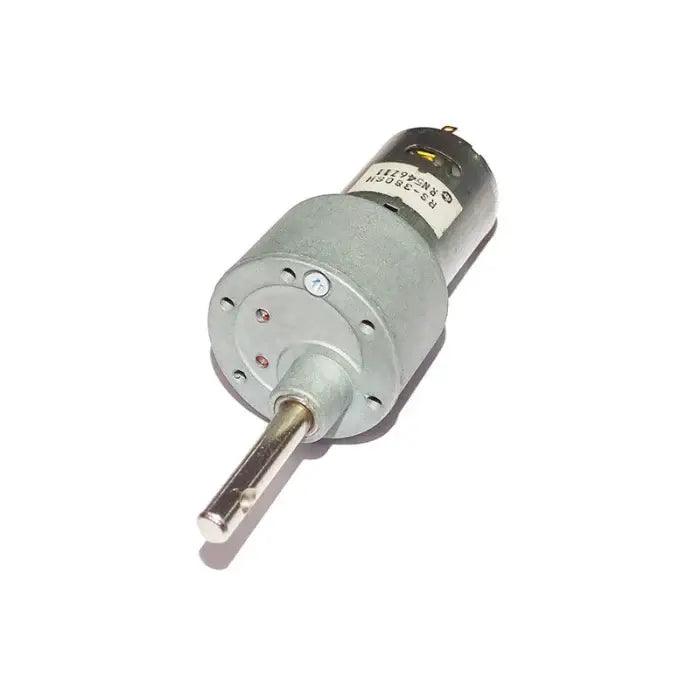

  • 200_RPM_12V_DC_Johnson_Geared_Motor_Grade_B_1000x_1401b008-4999-49bb-b3e6-ee6ffa4c8b4b - Roboracter
1 4

200 RPM DC Johnson Geared Motor 12V (Grade B)

SKU: 1FDEOMKPGP
The 200 RPM DC Johnson Geared Motor 12V (Grade B) is a high-performance yet cost-effective solution for a variety of robotic and mechanical applications. This DC motor features a sturdy metal gearbox and an off-centered (side) shaft, designed to deliver optimal performance in tight spaces. Operating at 12V DC, this Johnson motor produces 200 RPM speed with a torque output...
Rs. 489.00
Rs. 599.00 Rs. 489.00
Save Rs. 110
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

  • Product Type: Johnson Geared Motor
  • Rated Torque: 3.9 kg-cm
  • Operating Voltage Range: 6V – 18V DC
  • Rated Speed: 200 RPM
  • No-Load Current: 300 mA
  • Stall Torque: 15.6 kg-cm
  • Nominal Voltage: 12V
  • Maximum Load Current: 900 mA
  • Shaft Diameter: 6 mm
  • Shaft Length: 30 mm
  • Gearbox Diameter: 37 mm
  • Motor Diameter: 27 mm
  • Motor Length: 62 mm
  • Weight: 162 grams

Additional Resources

200 RPM DC Johnson Geared Motor 12V (Grade B).PDF

FAQ

1. What is the operating voltage of the 200 RPM Johnson geared motor?

This motor is designed to operate at 12V DC, providing optimal performance in terms of speed and torque.

2. What does “200 RPM” indicate in this motor?

It refers to the motor’s output speed of 200 revolutions per minute at the rated voltage, making it suitable for medium-speed applications.

3. What is meant by “Grade B” in this motor?

“Grade B” typically indicates that the motor may have minor cosmetic imperfections or slight variations, but it remains fully functional and suitable for most applications.

4. Where can this motor be used?

Common applications include:

  • Robotics and smart cars
  • Conveyor systems
  • DIY automation projects
  • Mechanical actuators
  • Educational robotics kits

5. What are the key advantages of this motor?

  • Good balance of speed and torque
  • Durable metal gearbox
  • Suitable for continuous operation
  • Easy to interface with motor drivers
  • Cost-effective solution for projects
View full product details

The 200 RPM DC Johnson Geared Motor 12V (Grade B) is a high-performance yet cost-effective solution for a variety of robotic and mechanical applications.

This DC motor features a sturdy metal gearbox and an off-centered (side) shaft, designed to deliver optimal performance in tight spaces.

Operating at 12V DC, this Johnson motor produces 200 RPM speed with a torque output of 3.9 kg-cm, making it ideal for medium-load applications like small robots, conveyor belts, or DIY machinery.

As a Grade B variant, it offers excellent value by providing reliable functionality at a more affordable price compared to premium Grade A Johnson motors.

The shaft is equipped with metal bushes to ensure wear resistance and longer operational life. With six M3 mounting holes and a shaft hole for better coupling, this 200 rpm gear motor ensures secure and hassle-free installation.

Whether you're building a custom bot or automating a mechanism, this Johnson geared motor is a perfect choice for efficient and compact motion control.

Applications:

  • Household appliances
  • Slot machines
  • Money detector
  • Automatic actuator
  • Coffee machine
  • Towel disposal
  • Lighting coin refund devices

Features:

  • The motor is solidly built.
  • Metal bushes are equipped with shafts to ensure extended life.
  • It comes with high-quality gears.
  • The shaft includes a hole for better connection.
