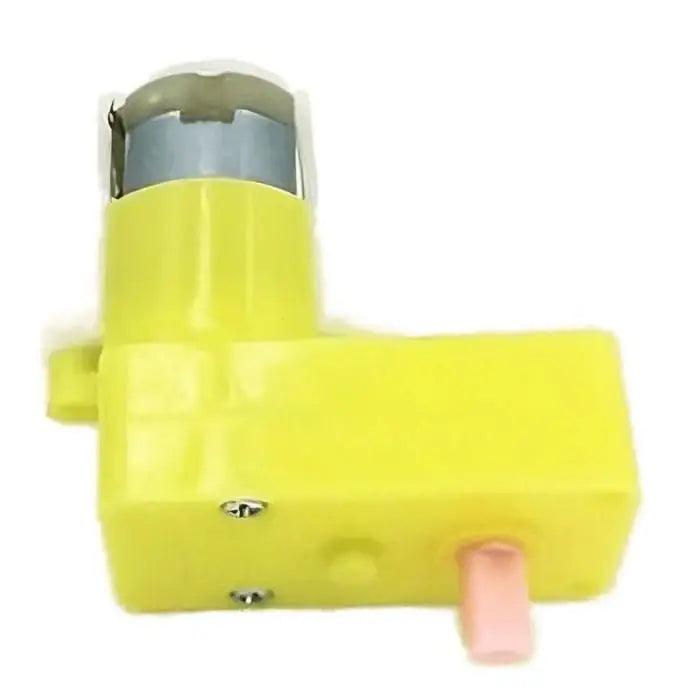

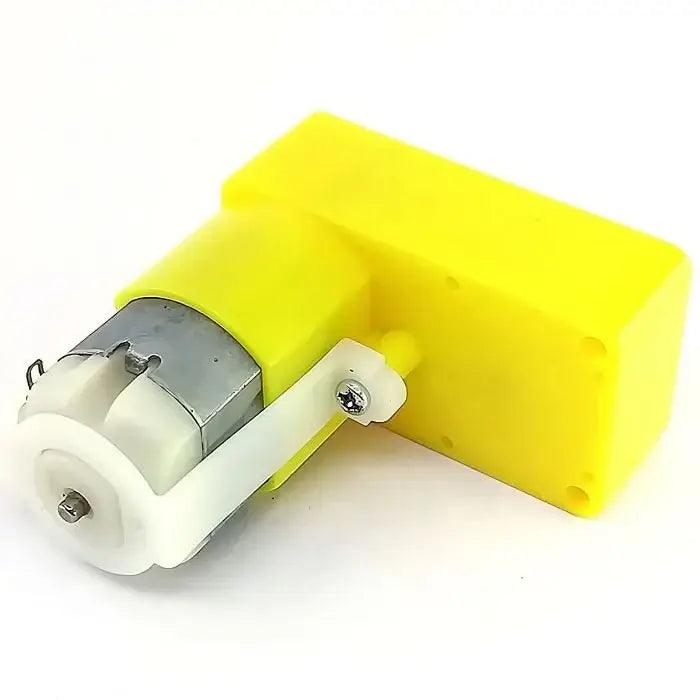

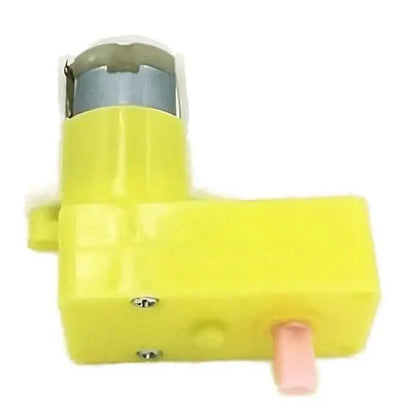

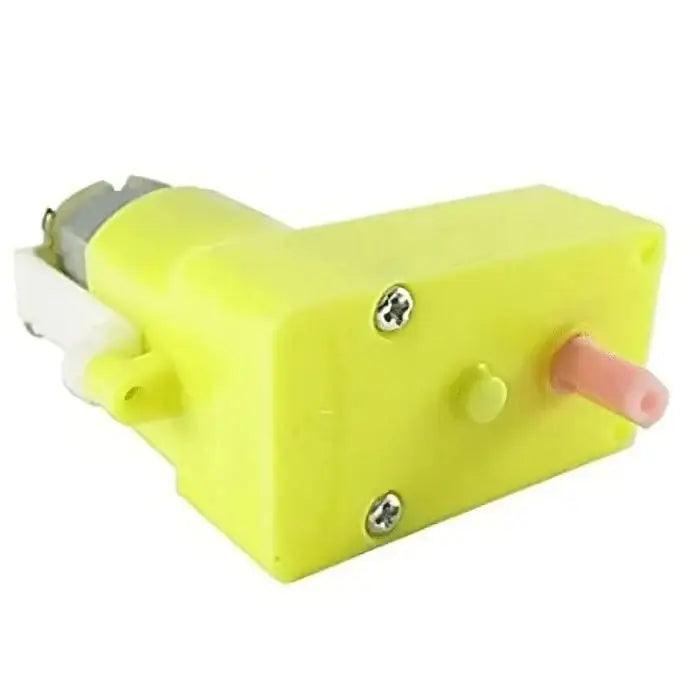

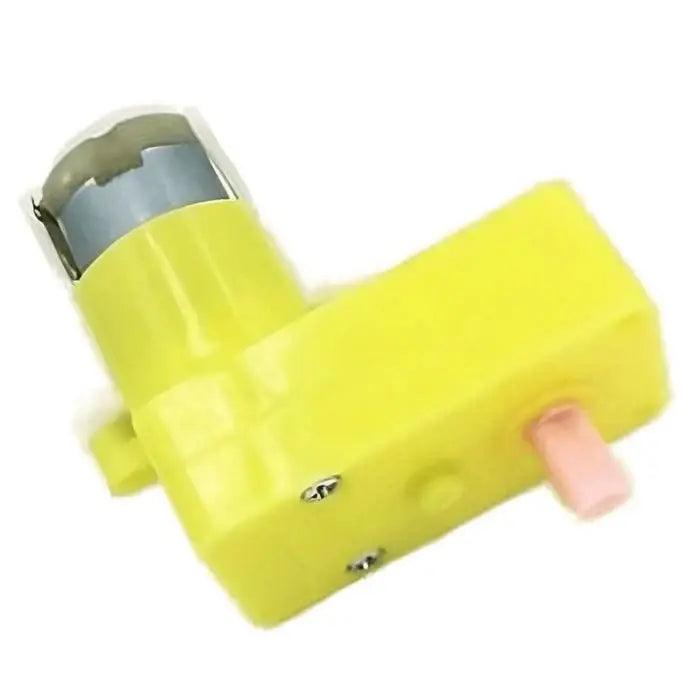

200 RPM Single Shaft L- Shaped BO Motor

SKU: TZ0ZGLSJTE
The 200 RPM Single Shaft L-Shaped BO Motor delivers excellent torque and speed even at lower operating voltages, which is one of its key advantages. This motor is a low-cost geared DC motor and serves as a practical alternative to metal-gear DC motors. It operates within a voltage range of 3–12V, making it ideal for small to medium robotic applications....
Rs. 55.00
Rs. 69.00 Rs. 55.00
Save Rs. 14
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Shaft Length: 7 mm
Motor Type: L-Shaped Design
Shaft Diameter: 5.5 mm
Dimensions: 55 × 48 × 23 mm
Operating Voltage: 3–12 V
No-Load Current: 40–180 mA
Speed: 200 RPM
Output Torque: 0.55 kg·cm

Additional Resources

200 RPM Single Shaft L- Shaped BO Motor.PDF

FAQ

1. What is a 200 RPM Single Shaft L-Shaped BO Motor?

 It is a low-cost geared DC motor with an L-shaped bracket, designed for small robotics and DIY projects. It provides a rotational speed of 200 revolutions per minute (RPM) and good torque at low operating voltages. Its single shaft allows easy attachment of wheels or gears.

2. What are the key specifications of this motor?

  • Rated speed: 200 RPM
  • Voltage range: Typically 3V–6V DC
  • Torque: Moderate torque suitable for small robots
  • Shaft type: Single straight shaft
  • Shape: L-bracket for easy mounting
  • Weight: Lightweight for compact applications

3. Where is this motor commonly used?

 This motor is ideal for small robots, line-following robots, hobby projects, and educational kits. Its L-shaped design allows easy attachment to chassis, making it perfect for compact robot designs.

4. How do I mount and use this motor?

 The L-shaped bracket allows secure attachment to flat surfaces using screws. Connect the motor terminals to a suitable DC motor driver or battery pack. You can attach wheels, pulleys, or gears to the shaft to drive a robot or mechanism.

5. What are the advantages of this motor over standard BO motors?

  • L-shaped design simplifies mounting on robot chassis
  • Single shaft allows direct connection of wheels or gears
  • Compact and lightweight, suitable for small robots
  • Low-cost alternative to metal-gear DC motors
  • Provides decent torque at low voltage operation
View full product details

The 200 RPM Single Shaft L-Shaped BO Motor delivers excellent torque and speed even at lower operating voltages, which is one of its key advantages. This motor is a low-cost geared DC motor and serves as a practical alternative to metal-gear DC motors. It operates within a voltage range of 3–12V, making it ideal for small to medium robotic applications.

Its compact shaft design, compatible with matching wheels, ensures an optimized setup for your robot or project. The L-shaped mounting holes and lightweight body make it easy to integrate directly into circuits. Perfect for DIY enthusiasts, this motor is cost-effective, compact, easy to install, and well-suited for mobile robot cars.

To use this 200 RPM Single Shaft L-Shaped BO Motor in your DIY projects, you will need a few essential components such as batteries, switches, wires, soldering tools, and wheels.

Applications:

  • Smart Robot Cars
  • DIY Trains
  • Obstacle-Avoiding Robots
  • 2WD Robots
