200K Ohm Cermet

SKU: 5286WD5QBN

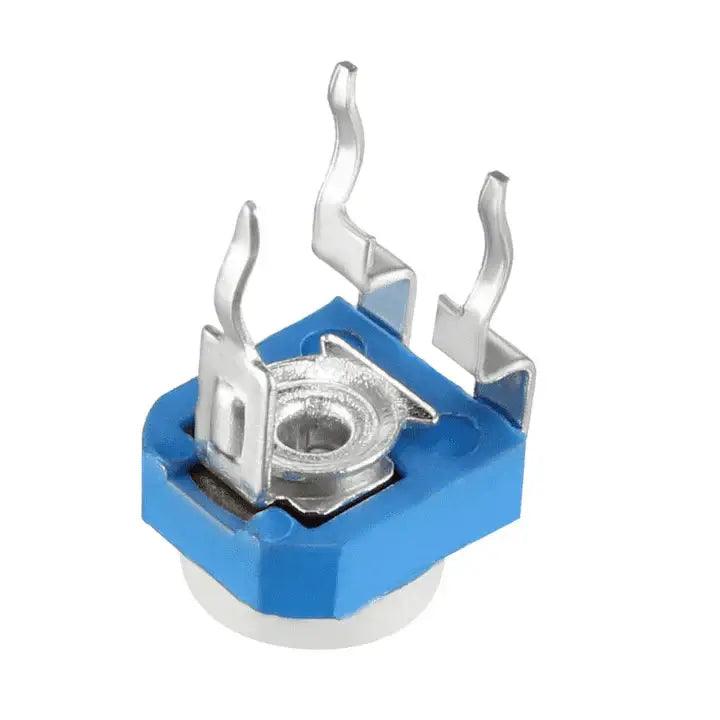

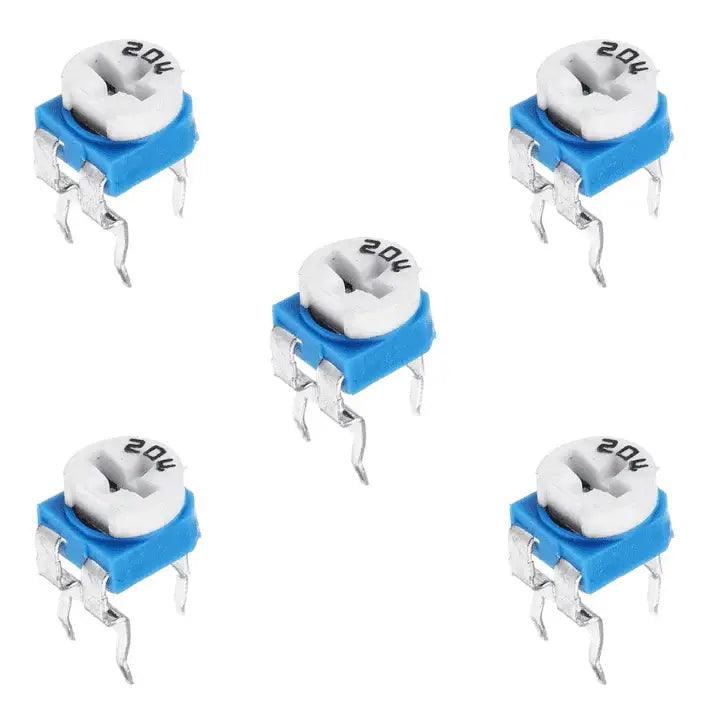

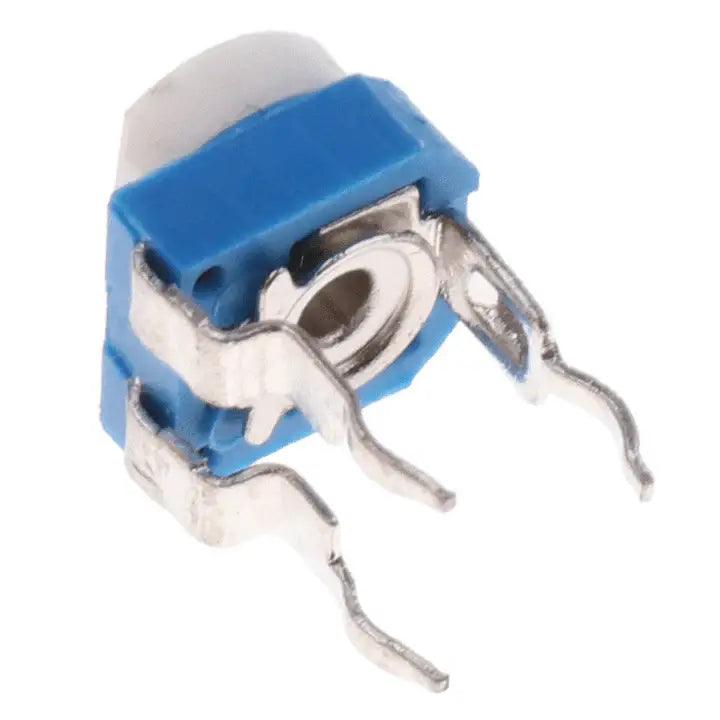

A cermet preset is a compact, PCB-mountable variable resistor with three terminals. As the preset is adjusted, the voltage between its terminals changes accordingly. Variable resistors like this are used to control voltage levels in a circuit. Typically, the two outer pins are connected to Vcc and ground (0V), while the center pin (wiper) provides a variable output voltage ranging...
Rs. 8.00
Rs. 11.00 Rs. 8.00
Save Rs. 3
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Resistance: 200K ohm
Number of Turns: 1 (Single-turn)
Resistance Tolerance: ±10%
Mounting Type: Through-hole
Lead Diameter: 0.5 mm

Additional Resources

200K Cermet.PDF

FAQ

1. What is the resistance value of the 200K cermet potentiometer?

Each potentiometer has a resistance of 200KΩ, suitable for voltage adjustment and calibration in circuits.

2. What type of potentiometer is this?

It is a cermet trimmer potentiometer, known for its stability, precision, and durability compared to carbon types.

3. How many turns does this potentiometer have?

It is a single-turn (1 turn) potentiometer, allowing quick and simple adjustments.

4. What is the mounting type of this cermet potentiometer?

It features a through-hole mounting, making it easy to install on PCBs.

5. What are common applications of a 200K cermet potentiometer?

It is commonly used in voltage divider circuits, calibration, signal tuning, adjustable power supplies, and electronic projects.

View full product details

A cermet preset is a compact, PCB-mountable variable resistor with three terminals. As the preset is adjusted, the voltage between its terminals changes accordingly.

Variable resistors like this are used to control voltage levels in a circuit. Typically, the two outer pins are connected to Vcc and ground (0V), while the center pin (wiper) provides a variable output voltage ranging from 0V to Vcc as the cermet preset is rotated.

Applications:

  • Used as a voltage divider
  • Ideal for obtaining an adjustable output voltage

You can also consider the 500K Cermet (Pack of 5), which is a PCB-mountable variable resistor designed to adjust resistance values in electronic circuits.
