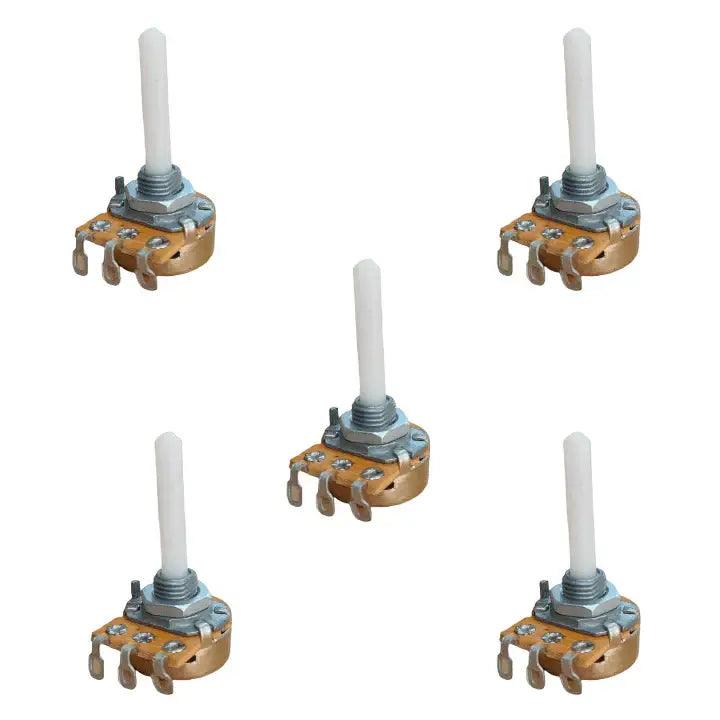

22K 16mm Rotary Pot(Pack of 5)

SKU: A97OLKFYE3
Potentiometers are very useful in changing the electrical parameters of a system. It is a single turn 22K Potentiometer with a rotating knob. These potentiometers are also commonly called as a rotary potentiometer or just POT in short.  A potentiometer knob can also be used along with this POT for aesthetic purposes. This is a carbon track, single turn, adjustable resistances, of value 22KOhm Knob potentiometer. It is...
Rs. 79.00
Rs. 99.00 Rs. 79.00
Save Rs. 20
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Resistance: 22KΩ
Total Rotational Angle: 300° ± 5°
Withstand Voltage: AC 500V for at least 1 minute
Total Resistance Tolerance: ±20% (±30% for values above 1MΩ)
Length: 16 mm

Additional Resources

22K 16mm Rotary Pot.PDF

FAQ

1. What is the resistance value of this potentiometer?

Each potentiometer has a resistance of 22KΩ, suitable for signal adjustment and voltage control applications.

2. What type of potentiometer is included in this pack?

It is a single-turn rotary potentiometer with a carbon track, providing smooth and linear resistance variation.

3. What is the rotational range of the potentiometer?

The potentiometer offers a rotation angle of approximately 300° ± 5°, allowing precise manual control.

4. What are the common applications of a 22K rotary potentiometer?

It is commonly used in audio control, voltage divider circuits, Arduino projects, signal tuning, and calibration applications.

5. Is this potentiometer suitable for panel mounting?

Yes, it is designed for panel mounting and can be used with a knob for easy operation.

View full product details

Potentiometers are very useful in changing the electrical parameters of a system. It is a single turn 22K Potentiometer with a rotating knob. These potentiometers are also commonly called as a rotary potentiometer or just POT in short.  A potentiometer knob can also be used along with this POT for aesthetic purposes.

This is a carbon track, single turn, adjustable resistances, of value 22KOhm Knob potentiometer. It is meant for mounting on panel and is supplied complete with a knob. The knob is affixed on the plastic spindle of the potentiometer and turns the spindle which changes the resistance. The variation of resistance is linearly proportion to the degree of rotation. Potentiometer, in electronic parlance, is a manually variable resistance. Because its most common consumer application is for controlling volume/tone of sound in broadcast receivers, it is loosely referred to as "volume" or ''tone''. It is not a meter with scale and needle. Potentiometers look different depending on size, power handled, application, value and type of material used. There is, however, a common feature-there is wiper which sweeps over a length of resistive material. The two ends of the resistive material as also the wiper are available to the user as electrical terminations. The user gets a variable resistance between the wiper and the two ends.
