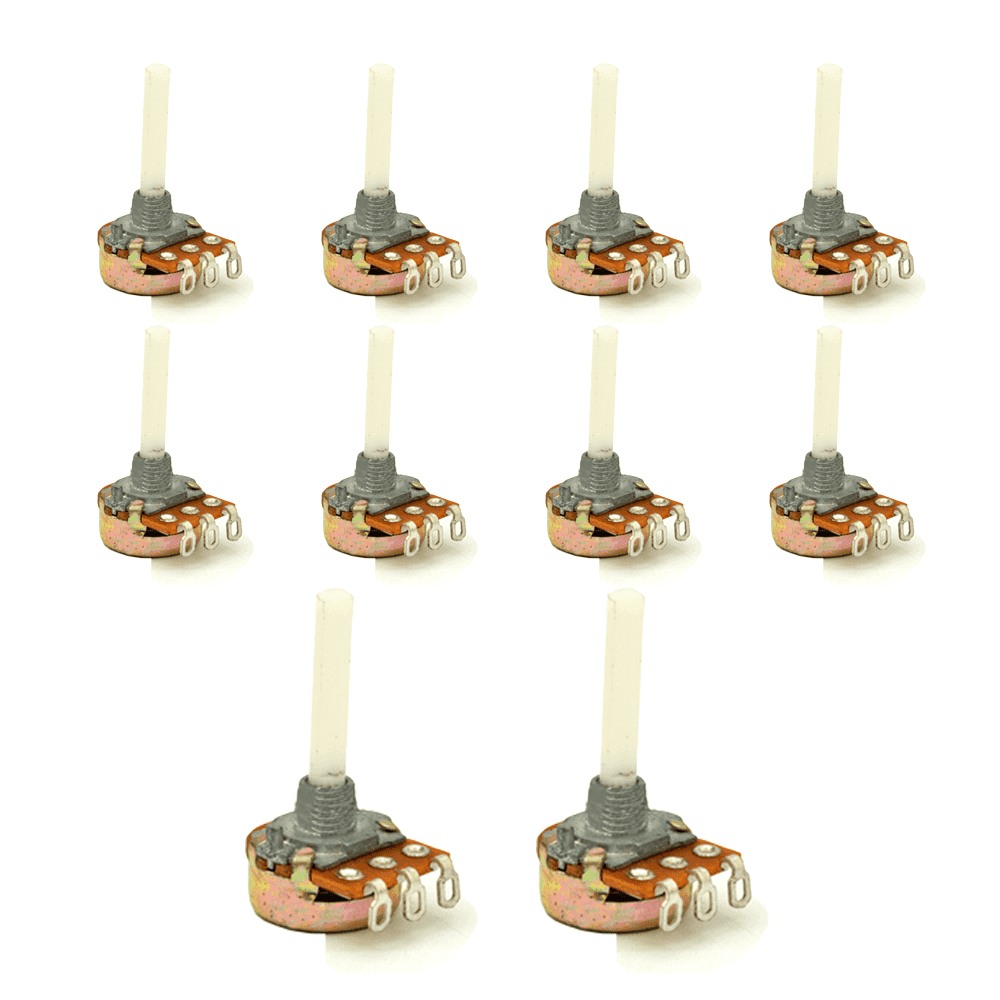

22k Potentiometer (10 pcs)

SKU: NNU0LNVB56

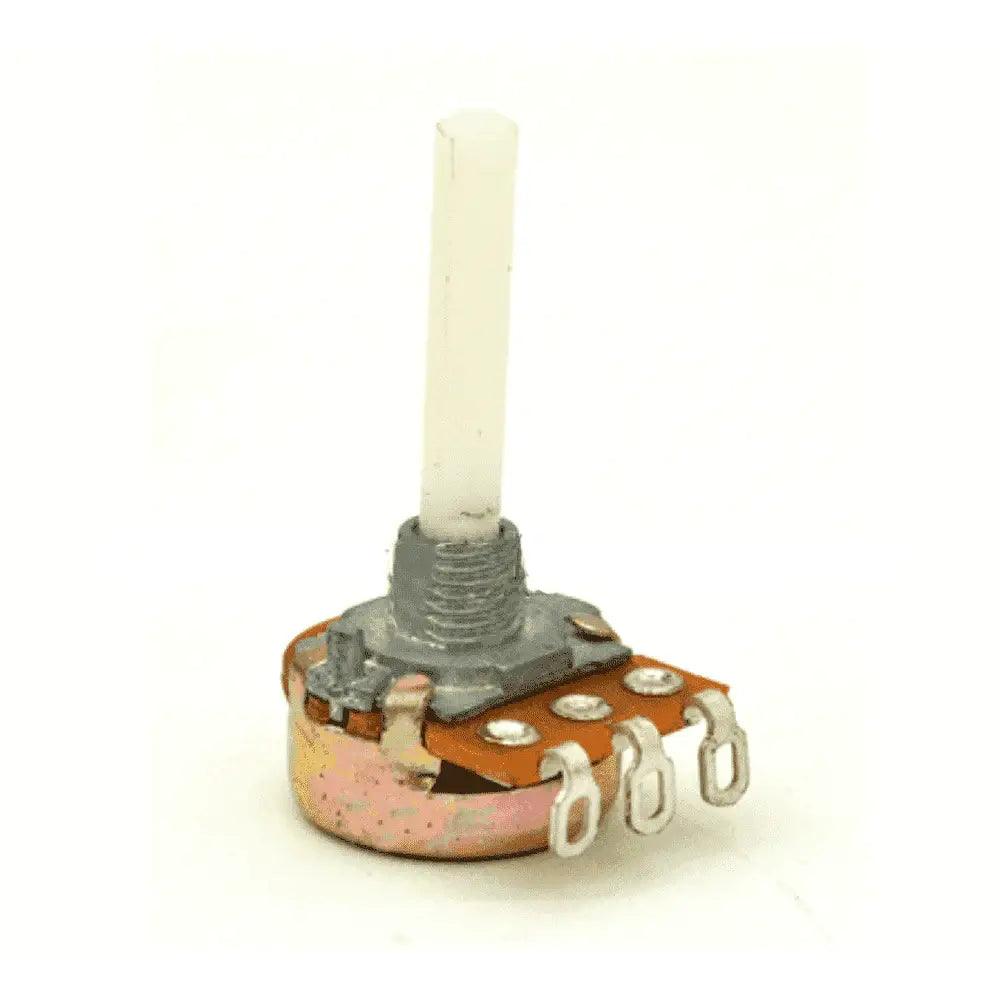

The 22K Potentiometer is a three-terminal variable resistor used to adjust or control resistance in electronic circuits. It is commonly used to regulate devices by varying parameters such as voltage and current. This potentiometer is a passive electronic component featuring two end terminals connected by a resistive track, along with a movable contact called the wiper, which acts as the...
Rs. 99.00
Rs. 129.00 Rs. 99.00
Save Rs. 30
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Resistance: 22 kΩ
Potentiometer Type: Rotary Potentiometer
Material: Carbon Film with Metal Components
Interface: 3-Pin
Shaft Length: 15 mm
Dimensions: 1 × 1 × 1 cm
Weight: 15 grams

Additional Resources

22k Potentiometer.PDF

FAQ

1. What is a 22K potentiometer used for?

 A 22K potentiometer is used to control voltage or signal levels in circuits, commonly for audio control, sensor tuning, and adjustable voltage applications.

2. How does a 22K potentiometer work?

 It works as a variable resistor with three terminals. Rotating the shaft moves the wiper along the resistive track, changing the resistance and output voltage.

3. Where is a 22K potentiometer commonly used?

 It is widely used in audio systems, amplifier circuits, LED dimming, motor speed control, and general-purpose electronics projects.

4. Can a 22K potentiometer be used as a voltage divider?

 Yes, by connecting the outer terminals to Vcc and ground, the center terminal provides a variable voltage output.

5. What are the advantages of using a 22K potentiometer? It offers smooth control, good resolution for medium resistance applications, reliable performance, and versatility across various electronic circuits.

View full product details

The 22K Potentiometer is a three-terminal variable resistor used to adjust or control resistance in electronic circuits. It is commonly used to regulate devices by varying parameters such as voltage and current.

This potentiometer is a passive electronic component featuring two end terminals connected by a resistive track, along with a movable contact called the wiper, which acts as the third terminal. It is ideal for applications where a single-turn adjustment provides sufficient control resolution.

Features

  • Resistance: 22 kΩ

  • Type: Rotary potentiometer

  • Power Rating: Typically ranges from 0.5W to 2W (depending on the model)

  • Shaft Type: Durable plastic shaft, often D-shaped for easy handling

  • Mounting Style: Through-hole or panel mount

  • Termination Style: Solder lugs or PCB pins

  • Applications: Commonly used in volume control, tuning circuits, and adjustable voltage dividers

  • Quantity: Pack of 10 potentiometers

Applications of 22K Potentiometer

  • DIY kits

  • Major electronics projects

  • Mini projects

  • Audio control systems

  • Television control circuits

  • Motion control applications

  • Computing and control systems
