Specifications:

Capacitance: 22pF
Capacitance Code: 220 (commonly used marking)
Rated Voltage: 50V DC
Dielectric Type: NP0 / C0G
Tolerance: ±5%

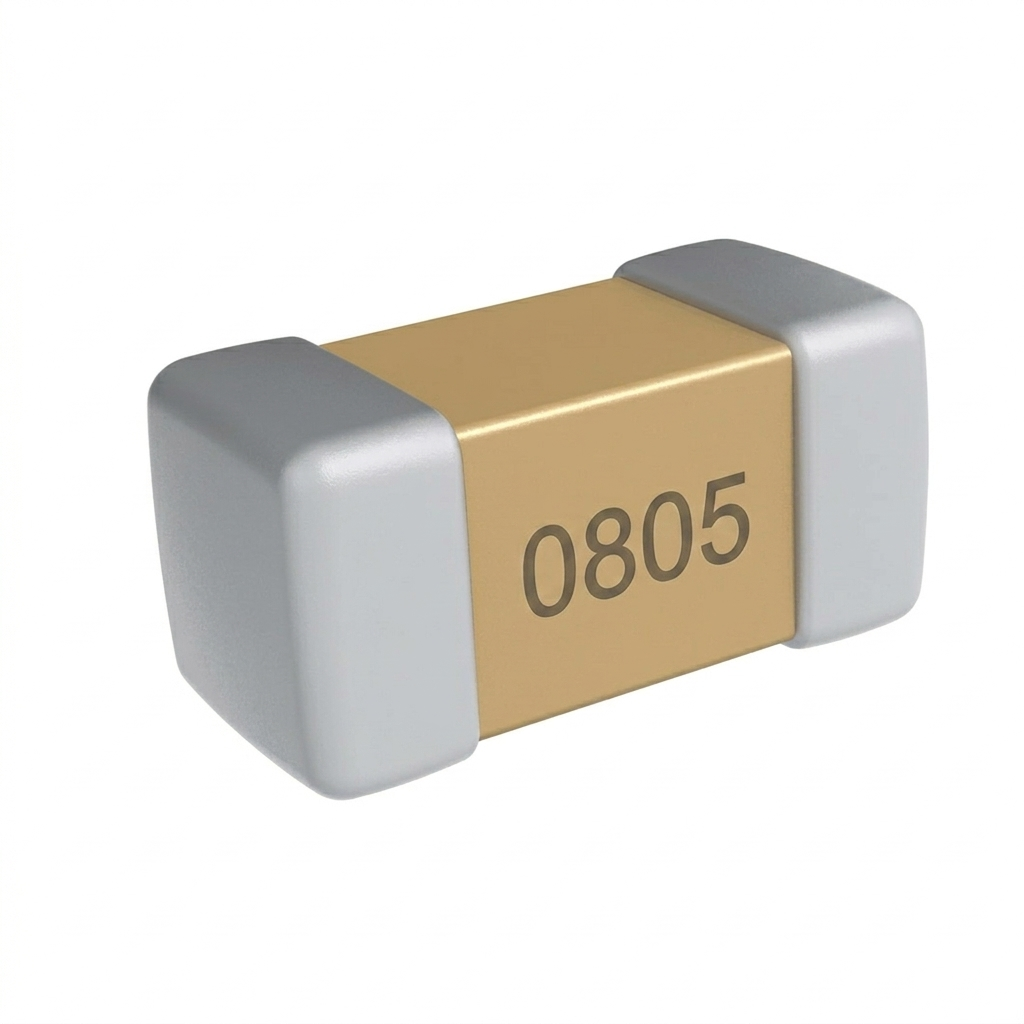

Package Size: 0805
Mounting Type: Surface Mount Device (SMD)
Operating Temperature Range: -55°C to +125°C

1. What is a 22pF 50V MLCC capacitor (NPO/C0G, 0805)?

A 22pF Multi-Layer Ceramic Capacitor (MLCC) is a small-value precision capacitor with a 50V DC rating. It uses NP0/C0G dielectric for high stability and comes in an 0805 SMD package, making it suitable for RF and precision circuits.

2. What does NP0 (C0G) dielectric mean?

NP0/C0G dielectric provides extremely stable capacitance with almost zero variation over temperature, voltage, and aging. This makes it ideal for precision timing and high-frequency applications.

3. Where is a 22pF MLCC typically used?

A 22pF capacitor is commonly used in crystal oscillator circuits, RF tuning circuits, filters, antenna matching networks, and high-frequency analog applications where precise capacitance is required.

4. Why is the 0805 package commonly used for this capacitor?

The 0805 package offers a good balance between compact size and ease of handling. It supports automated PCB assembly while still being large enough for reliable manual soldering during prototyping and repair work.

5. What is the benefit of ±5% tolerance in this capacitor?

A ±5% tolerance ensures higher accuracy in circuit performance, especially in oscillators and RF designs where even small capacitance variations can affect frequency stability and signal integrity.
