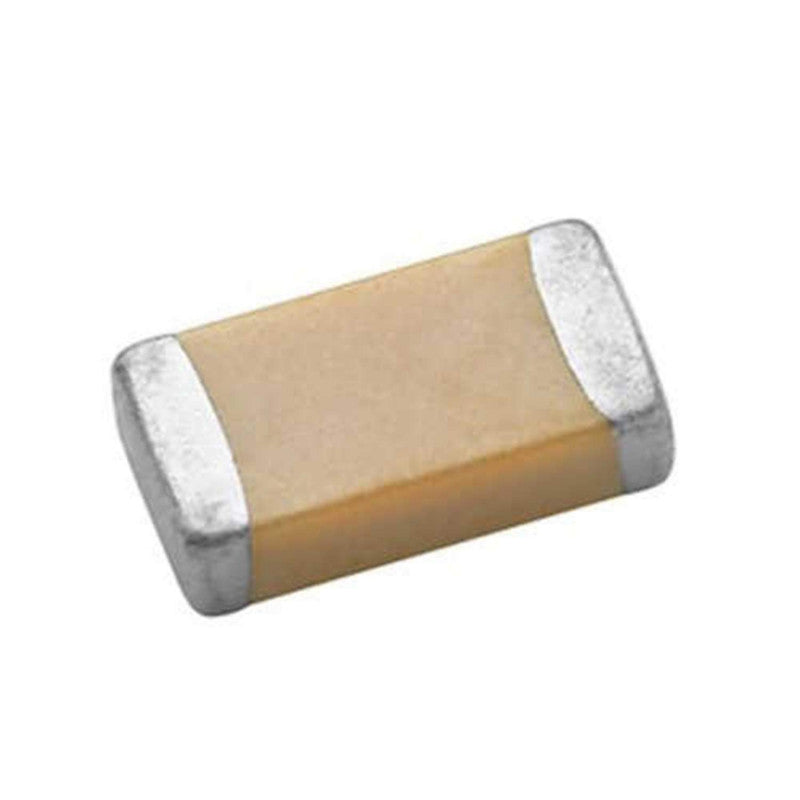

22uF 25V Multi Layered Ceramic Capacitor (MLCC) – SMD 1206

SKU: WDQTXQ9VMG
This is a high-capacitance Multi-Layer Ceramic Capacitor (MLCC) featuring a capacitance value of 22uF and a rated voltage of 25V DC. Designed in the compact 1206 Surface Mount Device (SMD) package, this capacitor offers excellent performance for power supply filtering, decoupling, bypassing, and energy storage applications in modern electronic circuits. Manufactured by Yageo, one of the world's leading passive component...
Rs. 8.00
Rs. 11.00 Rs. 8.00
Save Rs. 3
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Manufacturer: Yageo
Part Number: CC1206KKX5R8BB226
Capacitance: 22uF
Rated Voltage: 25V DC
Capacitor Type: Multi Layer Ceramic Capacitor (MLCC)
Dielectric Type: X5R
Package Size: 1206 SMD
Mounting Type: Surface Mount Device (SMD)
Polarity: Non-Polarized
Operating Temperature Range: -55°C to +85°C

Additional Resources

22uF 25V Multi Layered Ceramic Capacitor (MLCC) – SMD 1206.PDF

FAQ

1. What is the Yageo CC1206KKX5R8BB226 MLCC capacitor?

The Yageo CC1206KKX5R8BB226 is a 22uF, 25V Multi-Layer Ceramic Capacitor (MLCC) in a 1206 SMD package. It uses an X5R dielectric and is designed for power supply filtering, decoupling, and general-purpose electronic applications.

2. What does the X5R dielectric specification mean?

X5R is a Class II ceramic dielectric that provides stable capacitance over a temperature range of -55°C to +85°C, with a capacitance variation of ±15%. It offers a good balance between capacitance density, stability, and cost.

3. What are the common applications of this 22uF 25V MLCC capacitor?

This capacitor is commonly used in DC-DC converters, voltage regulators, power supply filtering, microcontroller circuits, consumer electronics, industrial control systems, and embedded applications requiring bulk capacitance in a compact package.

4. Is the Yageo CC1206KKX5R8BB226 capacitor polarized?

No, this MLCC capacitor is non-polarized, allowing it to be mounted in either direction on a PCB without affecting its performance or reliability.

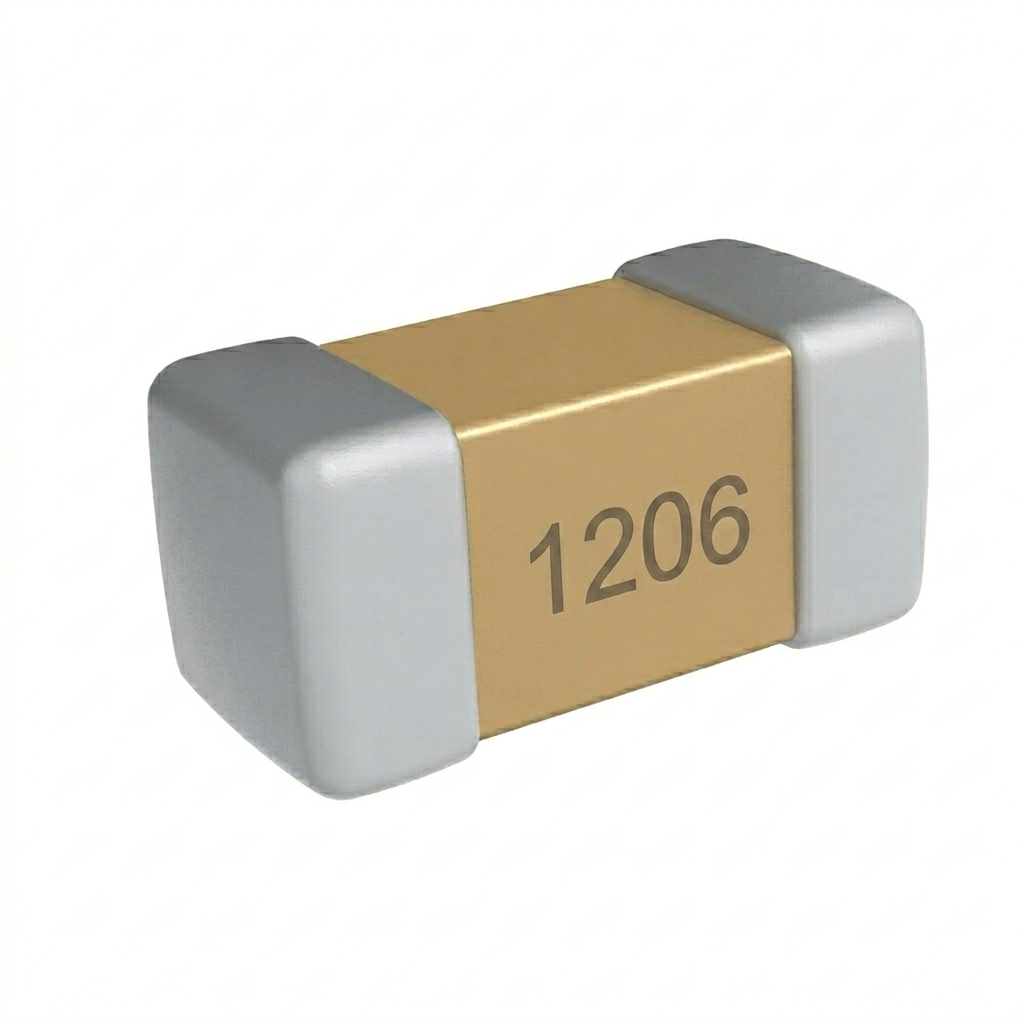

5. Why choose a 1206 SMD package for a 22uF capacitor?

The 1206 package provides a compact footprint while offering relatively high capacitance and voltage ratings. It is suitable for automated assembly, easy manual soldering, and space-constrained electronic designs requiring reliable performance.

View full product details

This is a high-capacitance Multi-Layer Ceramic Capacitor (MLCC) featuring a capacitance value of 22uF and a rated voltage of 25V DC. Designed in the compact 1206 Surface Mount Device (SMD) package, this capacitor offers excellent performance for power supply filtering, decoupling, bypassing, and energy storage applications in modern electronic circuits.

Manufactured by Yageo, one of the world's leading passive component manufacturers, this MLCC utilizes X5R ceramic dielectric technology, providing stable electrical characteristics across a wide temperature range. Its compact size, low Equivalent Series Resistance (ESR), and high reliability make it ideal for use in consumer electronics, industrial equipment, communication devices, and embedded systems.

The capacitor's non-polarized design allows easy PCB assembly while delivering effective noise suppression and voltage stabilization in both digital and analog circuits.
