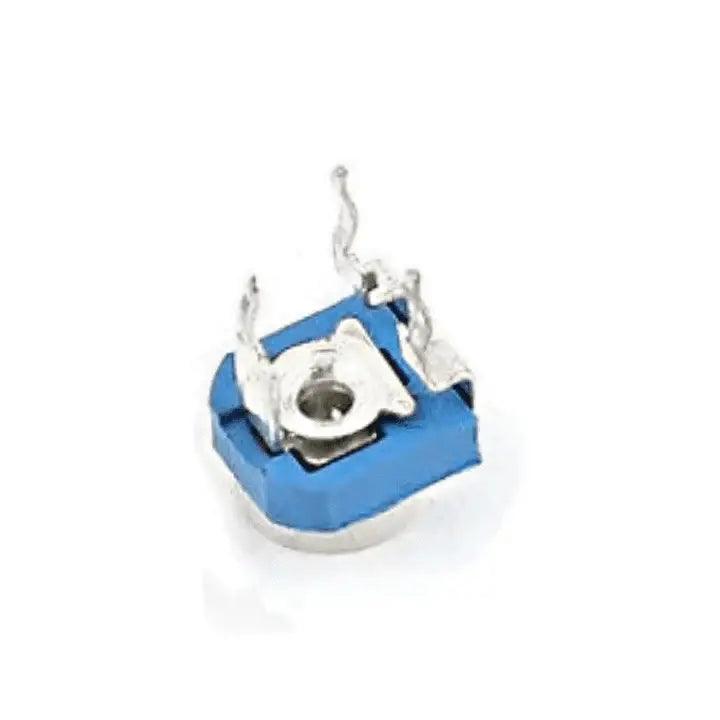

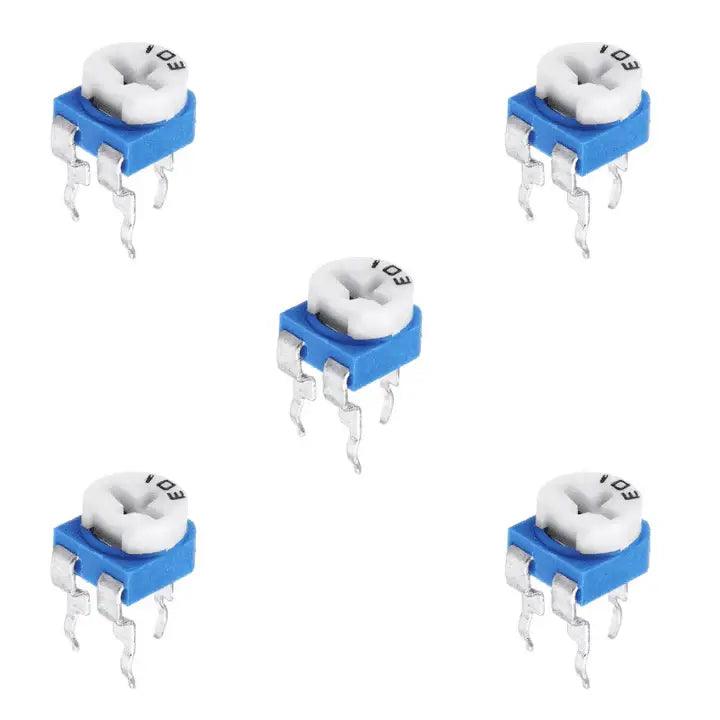

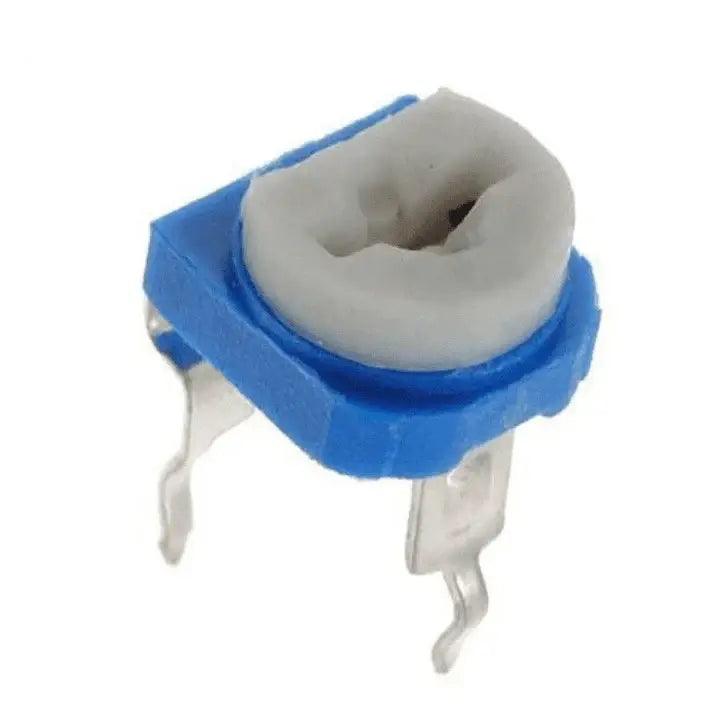

1K Ohm Cermet

SKU: 159P58GDDO
★★★★ ★ ★
4.3 (122 reviews)
A cermet preset is a compact, PCB-mountable variable resistor with three terminals. As the adjustment screw is rotated, the voltage across the terminals changes accordingly.Variable resistors are used to adjust voltage levels in a circuit as needed. Typically, the two outer pins are connected to Vcc and ground (0V), while the center pin provides a variable output voltage ranging between...
Rs. 8.00
Rs. 11.00 Rs. 8.00
Save Rs. 3 Incl. GST (No Hidden Charges)
Sold out
Tax included. Shipping calculated at checkout.
COD Available
Easy Return
Quality Assured
12 people are viewing this right now
Secure Checkout With
Bulk Orders Available
Special Pricing for Schools, Colleges & Businesses
Contact Us
Free Delivery For All Prepaid Orders Above ₹999
Shop for ₹999 or more and get FREE delivery
across India.
FREE
View full product details
Same Day Dispatch Order before 2PM
Pan India Delivery Shipping in 24-48H
Secure Packaging Safe & Damage Free
Dedicated Support Expert Assistance
A cermet preset is a compact, PCB-mountable variable resistor with three terminals. As the adjustment screw is rotated, the voltage across the terminals changes accordingly.Variable resistors are used to adjust voltage levels in a circuit as needed.

Typically, the two outer pins are connected to Vcc and ground (0V), while the center pin provides a variable output voltage ranging between 0V and Vcc based on the rotation of the cermet preset.Applications:
  • Used as a voltage divider
  • Suitable for generating an adjustable output voltage

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Resistance: 1 k ohm
Number of Turns: Single-turn
Tolerance: ±10%
Mounting Type: Through-hole
Lead Diameter: 0.5 mm

Additional Resources

Cermet.PDF

FAQ

1. What is a 2K cermet preset used for?

A 2K cermet preset is used for fine-tuning and calibration in electronic circuits, allowing precise adjustment of voltage or resistance.

2. What does “2K” mean in this preset?

 “2K” indicates a maximum resistance value of 2 kilo-ohms (2000 ohms).

3. How is a cermet preset adjusted?

 It is adjusted using a small screwdriver that rotates the internal wiper to change the resistance.

4. Is this preset suitable for PCB mounting?

 Yes, it is designed for through-hole mounting, making it easy to solder onto PCBs.

5. What are the benefits of a cermet preset?

 Cermet presets offer high stability, better durability, and precise control, making them ideal for calibration and long-term use.
