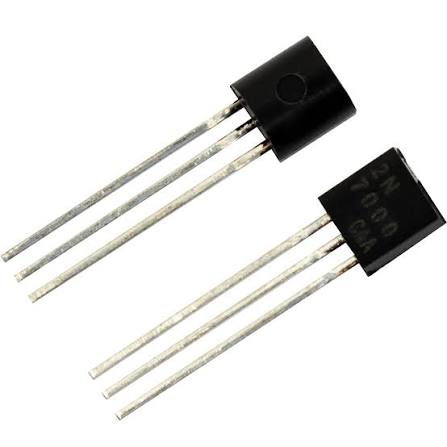

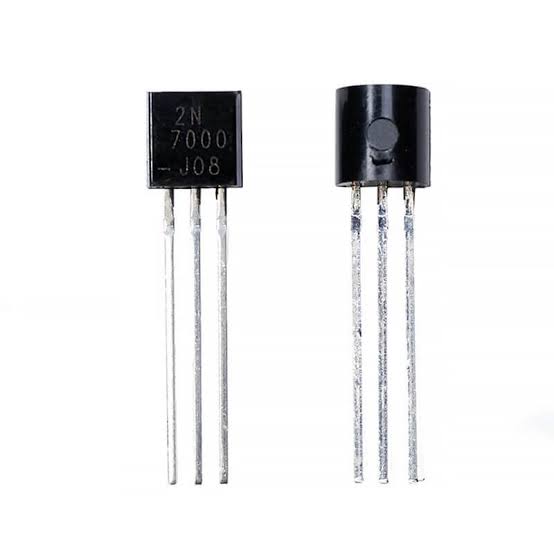

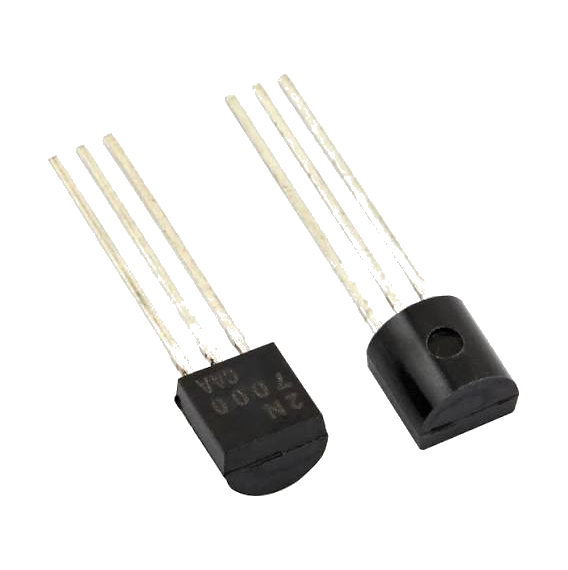

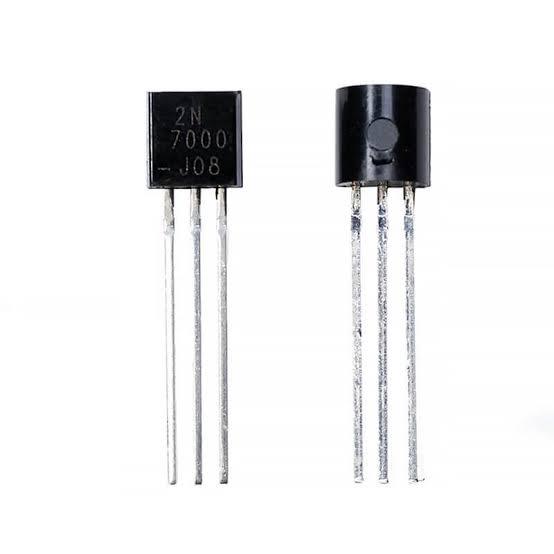

2N7000 N Channel MOSFET TO92 Package

SKU: 8RYYZYW743
The 2N7000 is a popular N-Channel Enhancement Mode MOSFET designed for low-power switching and amplification applications. Housed in a compact TO-92 package, this MOSFET offers high input impedance, fast switching performance, and low power consumption, making it an excellent choice for microcontroller interfacing, logic-level switching, and general-purpose electronic circuits. The 2N7000 can be directly driven by digital logic circuits such...
Rs. 12.00
Rs. 15.00 Rs. 12.00
Save Rs. 3
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Component Type: N-Channel MOSFET
Model: 2N7000
Package Type: TO-92
Mounting Type: Through-Hole
MOSFET Type: Enhancement Mode
Channel Type: N-Channel
Drain-Source Voltage (VDS): 60V Maximum
Gate-Source Voltage (VGS): ±20V Maximum
Continuous Drain Current (ID): 200mA Maximum
Pulsed Drain Current (IDM): 500mA Maximum
Drain-Source On Resistance (RDS(on)):
Typically 5Ω @ VGS = 10V
Gate Threshold Voltage (VGS(th)): 0.8V – 3V
Total Power Dissipation: 400mW
Input Capacitance: Approximately 50pF
Switching Time: Fast Switching Characteristics
Operating Temperature: -55°C to +150°C
Storage Temperature: -55°C to +150°C

Additional Resources

2N7000.PDF

FAQ

1. What is the 2N7000 MOSFET used for?

The 2N7000 is commonly used for switching LEDs, relays, buzzers, small motors, and other low-current loads in electronic circuits and microcontroller projects.

2. Is the 2N7000 compatible with Arduino and ESP32 boards?

Yes, the 2N7000 can be driven directly from Arduino, ESP32, STM32, Raspberry Pi Pico, and other logic-level microcontroller outputs.

3. What is the maximum drain-source voltage of the 2N7000?

The MOSFET can withstand a maximum drain-source voltage (VDS) of 60V.

4. How much current can the 2N7000 handle?

The device supports up to 200mA continuous drain current under proper operating conditions.

5. What is the advantage of using a MOSFET instead of a transistor?

A MOSFET requires very little gate current, offers higher input impedance, faster switching performance, and improved efficiency compared to many conventional bipolar transistors.

View full product details

The 2N7000 is a popular N-Channel Enhancement Mode MOSFET designed for low-power switching and amplification applications. Housed in a compact TO-92 package, this MOSFET offers high input impedance, fast switching performance, and low power consumption, making it an excellent choice for microcontroller interfacing, logic-level switching, and general-purpose electronic circuits.

The 2N7000 can be directly driven by digital logic circuits such as Arduino, ESP32, STM32, Raspberry Pi Pico, and other microcontrollers. It is commonly used for driving relays, LEDs, small motors, buzzers, and other low-current loads while providing electrical isolation between control and power circuits.

Its compact size, ease of use, and reliable switching characteristics make the 2N7000 one of the most widely used MOSFETs in educational, hobbyist, and industrial electronics projects.

Key Features

  • N-Channel Enhancement Mode MOSFET
  • Compact TO-92 package
  • Logic-level compatible gate control
  • High input impedance
  • Fast switching speed
  • Low gate drive current requirement
  • Suitable for microcontroller interfacing
  • Low power consumption
  • High reliability and stability
  • Easy through-hole mounting
  • Excellent switching performance
  • Ideal for low-current load control
  • Suitable for digital and analog circuits
  • Widely used in DIY and embedded projects
