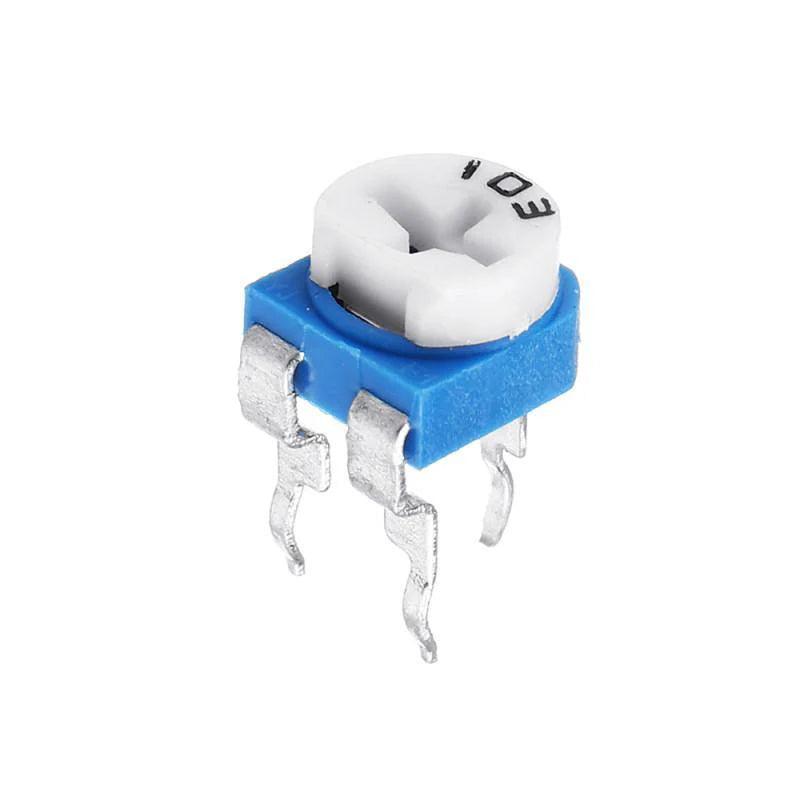

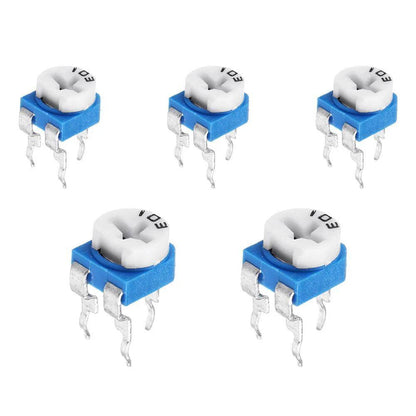

3.3K Ohm Cermet

SKU: 5D9PIS3KN3
★★★★ ★ ★
4.3 (20 reviews)
A cermet preset is a compact, PCB-mountable variable resistor with three terminals. As the preset is adjusted, the voltage between its terminals changes accordingly. Variable resistors like this are used to control voltage levels in a circuit. Typically, the two outer pins are connected to Vcc and ground (0V), while the center pin (wiper) provides a variable output voltage ranging...
Rs. 8.00
Rs. 11.00 Rs. 8.00
Save Rs. 3 Incl. GST (No Hidden Charges)
Sold out
Tax included. Shipping calculated at checkout.
COD Available
Easy Return
Quality Assured
12 people are viewing this right now
Secure Checkout With
Bulk Orders Available
Special Pricing for Schools, Colleges & Businesses
Contact Us
Free Delivery For All Prepaid Orders Above ₹999
Shop for ₹999 or more and get FREE delivery
across India.
FREE
View full product details
Same Day Dispatch Order before 2PM
Pan India Delivery Shipping in 24-48H
Secure Packaging Safe & Damage Free
Dedicated Support Expert Assistance

A cermet preset is a compact, PCB-mountable variable resistor with three terminals. As the preset is adjusted, the voltage between its terminals changes accordingly.

Variable resistors like this are used to control voltage levels in a circuit. Typically, the two outer pins are connected to Vcc and ground (0V), while the center pin (wiper) provides a variable output voltage ranging from 0V to Vcc as the cermet preset is rotated.

Applications:

  • Used as a voltage divider
  • Ideal for obtaining an adjustable output voltage

You can also consider the 500K Cermet (Pack of 5), which is a PCB-mountable variable resistor designed to adjust resistance values in electronic circuits.

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Resistance: 3.3K ohm
Number of Turns: 1 (Single-turn)
Resistance Tolerance: ±10%
Mounting Type: Through-hole
Lead Diameter: 0.5 mm

Additional Resources

Cermet.PDF

FAQ

Q1. What is a potentiometer?

 A potentiometer is a three-terminal variable resistor used to adjust voltage levels in a circuit. It works by varying resistance through a rotating or sliding contact.

Q2. What are the main terminals of a potentiometer?

 A potentiometer has three terminals: two outer terminals connected to a resistive track, and one middle terminal called the wiper, which moves along the track.

Q3. What are the common types of potentiometers?

 Common types include rotary potentiometers, linear (slider) potentiometers, and digital potentiometers.

Q4. Where are potentiometers commonly used?

 Potentiometers are used in volume controls, light dimmers, motor speed control, and tuning circuits in electronic devices.

Q5. How does a potentiometer control voltage?

 A potentiometer acts as a voltage divider. By adjusting the wiper position, it changes the output voltage between the wiper and one of the outer terminals.
