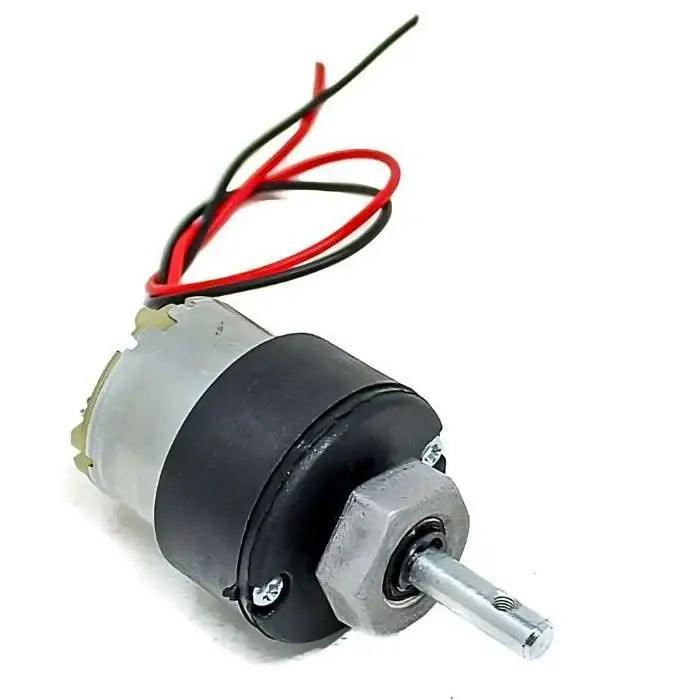

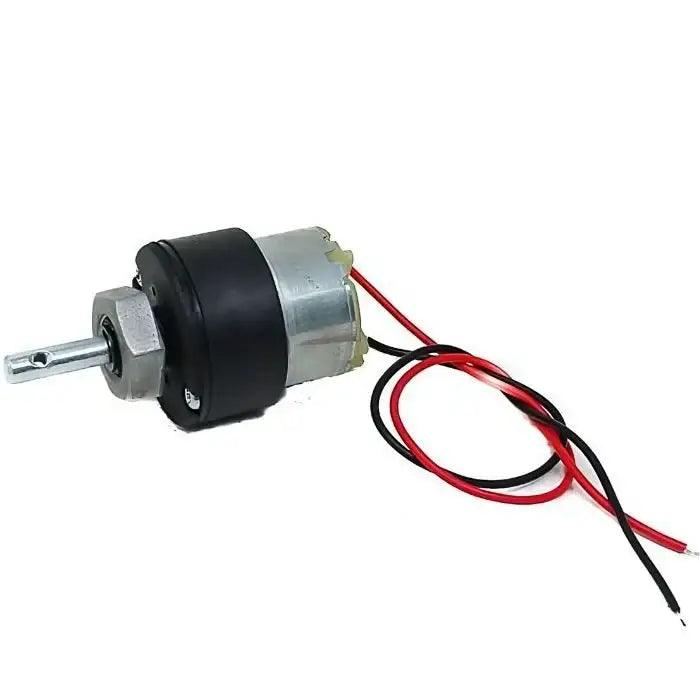

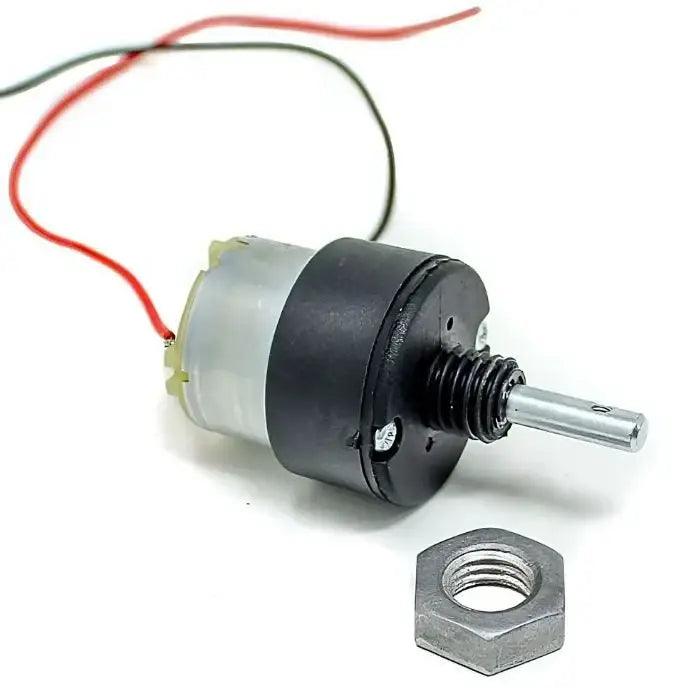

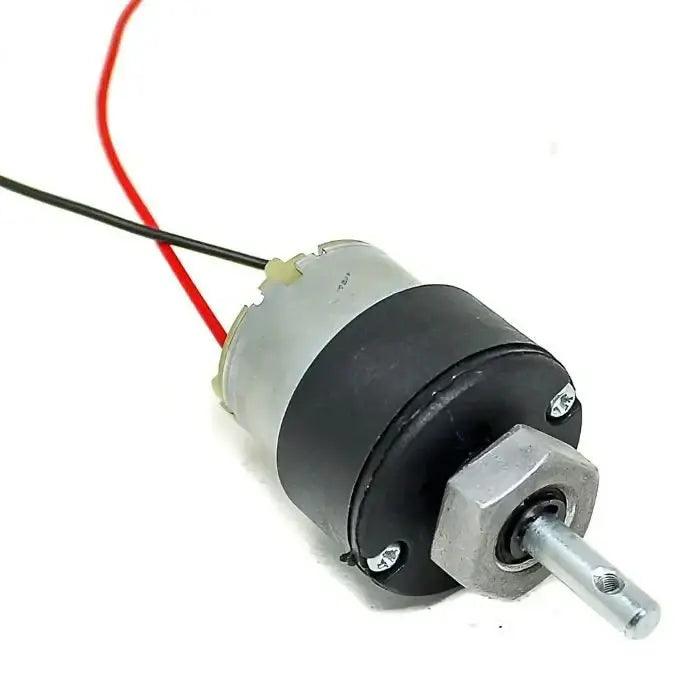

3.5 RPM DC Geared Motor

SKU: CRUT4E238S
This is the 3.5RPM 12V geared Motor, these motors are simple DC Motors featuring gears for the shaft for obtaining the optimal performance characteristics. They are known as Center Shaft DC Geared Motors because their shaft extends through the centre of their gearbox assembly. These standard size DC motore are very easy to use. Also, you don’t have to spend a...
Rs. 249.00
Rs. 299.00 Rs. 249.00
Save Rs. 50
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Rated Speed: 3.5 RPM
Operating Voltage: 12V
Torque: 15.7 kg-cm
Phase Type: Single Phase
Shaft Diameter: 6 mm
No-Load Current: Up to 70 mA

Additional Resources

3.5 RPM DC Geared Motor.PDF

FAQ

1. What is a 3.5 RPM DC geared motor?

A 3.5 RPM DC geared motor is a low-speed motor equipped with a gearbox that reduces the motor’s speed to 3.5 revolutions per minute, while significantly increasing torque for heavy-duty applications.

2. What is the typical operating voltage of this motor?

This type of motor generally operates within a range of 6V to 12V DC, depending on the specific model and manufacturer.

3. Where is a 3.5 RPM geared motor commonly used?

It is commonly used in:

  • Automation systems
  • Robotics projects
  • Turntable mechanisms
  • Industrial control setups
  • Slow-moving mechanical applications

4. Why does this motor have such a low speed?

The motor uses a high gear reduction ratio, which decreases speed while increasing torque, making it ideal for applications that require slow and powerful motion.

5. What are the advantages of using a 3.5 RPM DC geared motor?

  • Very high torque output
  • Precise and controlled movement
  • Suitable for heavy loads
  • Stable and reliable performance
  • Long operational life
View full product details

This is the 3.5RPM 12V geared Motor, these motors are simple DC Motors featuring gears for the shaft for obtaining the optimal performance characteristics. They are known as Center Shaft DC Geared Motors because their shaft extends through the centre of their gearbox assembly.

These standard size DC motore are very easy to use. Also, you don’t have to spend a lot of money to control motors with an Aeduino or compatible board TheL298N H-bridge module with onboard voltage regulator motor driver can be used with this motor that has a voltage of between 5 and 35V DC.

This DC Motor – 3.5RPM – 12Volts can be used in all-terrain robots and a variety of robotic applications. These motors have a 3 mm threaded drill hole in the middle of the shaft thus making it simple to connect it to the wheels or any other mechanical assembly.

Nut and threads on the shaft to easily connect and internally threaded shaft for easily connecting it to the wheels. These DC Geared motors with robust metal/Plastic gearbox for heavy-duty applications, and ideally suited for robotics and industrial applications.

Applications:

  • Toy cars
  • Windmill projects
  • Basic Electronics projects
