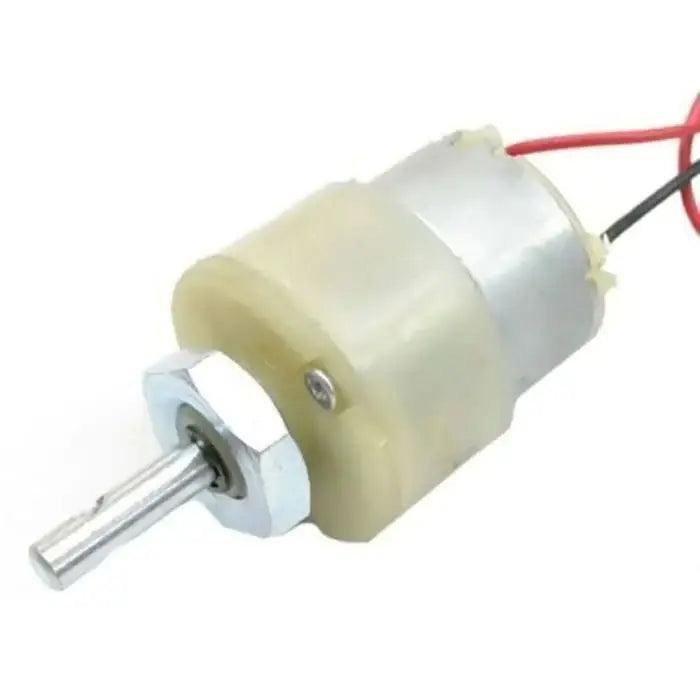

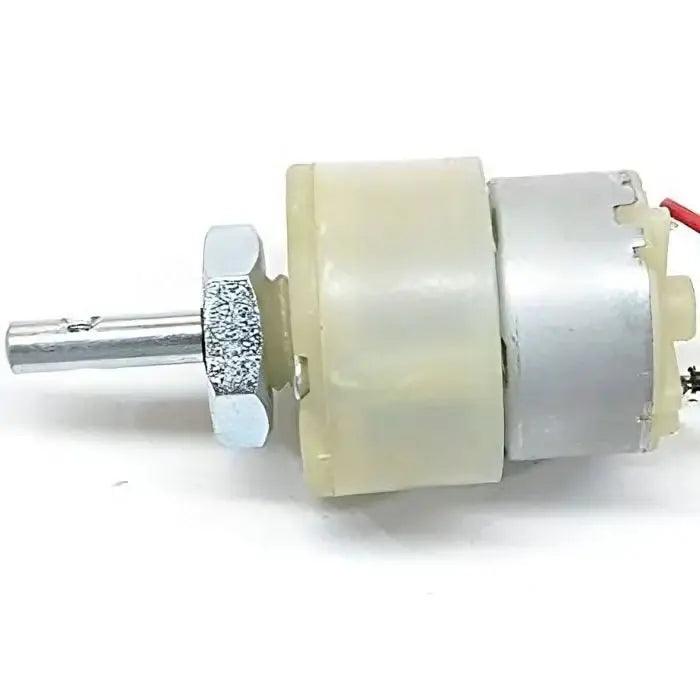

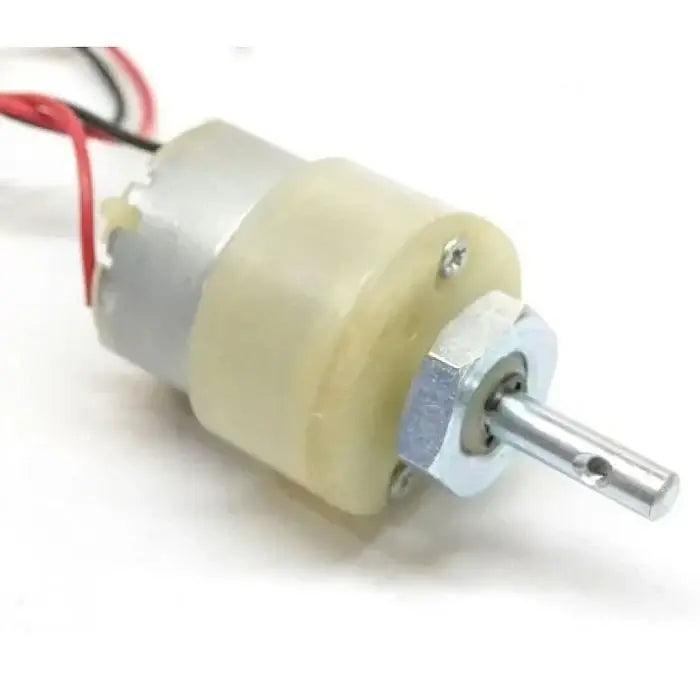

30 RPM 12V Centre Shaft DC Geared Motor

SKU: GKNQ8WVDB2
This is the 30RPM 12V DC Motor, these motors are simple DC Motors featuring gears for the shaft for obtaining the optimal performance characteristics. They are known as Center Shaft DC Gear Motors because their shaft extends through the centre of their gearbox assembly. These standard size DC gear motor are very easy to use. Also, you don’t have to...
Rs. 179.00
Rs. 219.00 Rs. 179.00
Save Rs. 40
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Rated Speed: 30 RPM
Operating Voltage: 12V DC
Gearbox Type: Integrated plastic spur gearbox
Shaft Diameter: 6 mm (with internal hole)
Torque Output: 5 kg-cm
No-Load Current: Up to 60 mA
Load Current: Up to 300 mA

Additional Resources

30 RPM 12V Centre Shaft DC Geared Motor.PDF

FAQ

Q1. What is a 30 RPM 12V Centre Shaft DC Geared Motor?

 A 30 RPM 12V centre shaft DC geared motor is a low-speed motor with an internal gearbox that reduces speed and increases torque, featuring a centrally positioned output shaft for balanced rotation.

Q2. What are the common applications of this motor?

 It is commonly used in robotics, automation systems, conveyor mechanisms, vending machines, and projects that require slow, controlled, and powerful movement.

Q3. Why is the centre shaft design important?

 The centre shaft design provides better balance, alignment, and ease of mounting, making it ideal for applications where symmetrical motion is required.

Q4. How does the gearbox improve motor performance?

 The gearbox reduces the high speed of the motor and increases torque, allowing it to handle heavier loads at a lower speed efficiently.

Q5. Can the direction of rotation be controlled?

 Yes, the direction of rotation can be easily reversed by changing the polarity of the power supply connected to the motor terminals.

View full product details

This is the 30RPM 12V DC Motor, these motors are simple DC Motors featuring gears for the shaft for obtaining the optimal performance characteristics. They are known as Center Shaft DC Gear Motors because their shaft extends through the centre of their gearbox assembly.

These standard size DC gear motor are very easy to use. Also, you don’t have to spend a lot of money to control motors with an Arduino or compatible board. TheL298N H-bridge module with onboard voltage regulator motor driver can be used with this motor that has a voltage of between 5 and 35V DC.

This DC Motor of 12V 30 RPM can be used in all-terrain robots and a variety of robotic applications. These motors have a 3 mm threaded drill hole in the middle of the shaft thus making it simple to connect it to the wheels or any other mechanical assembly.

Nut and threads on the shaft to easily connect and internally threaded shaft for easily connecting it to the wheels. These DC Geared motors with robust metal/Plastic gearbox for heavy-duty applications, and ideally suited for robotics and industrial applications.
