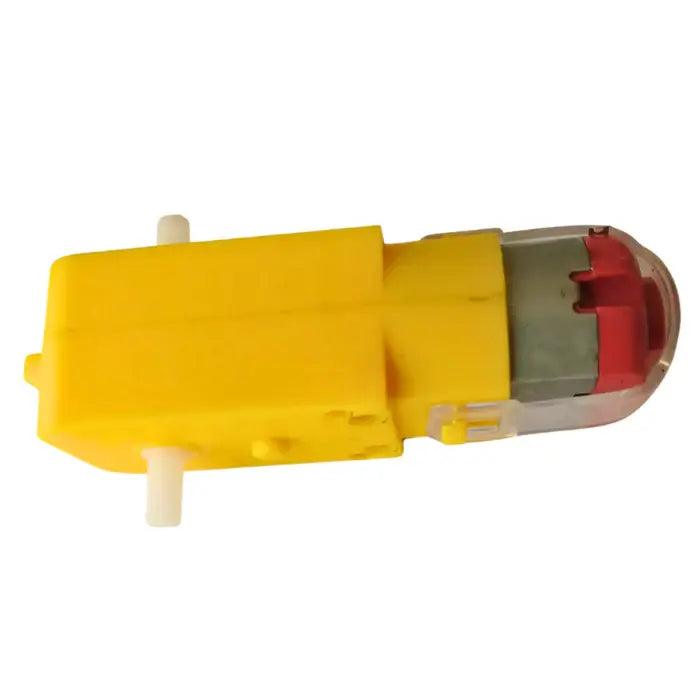

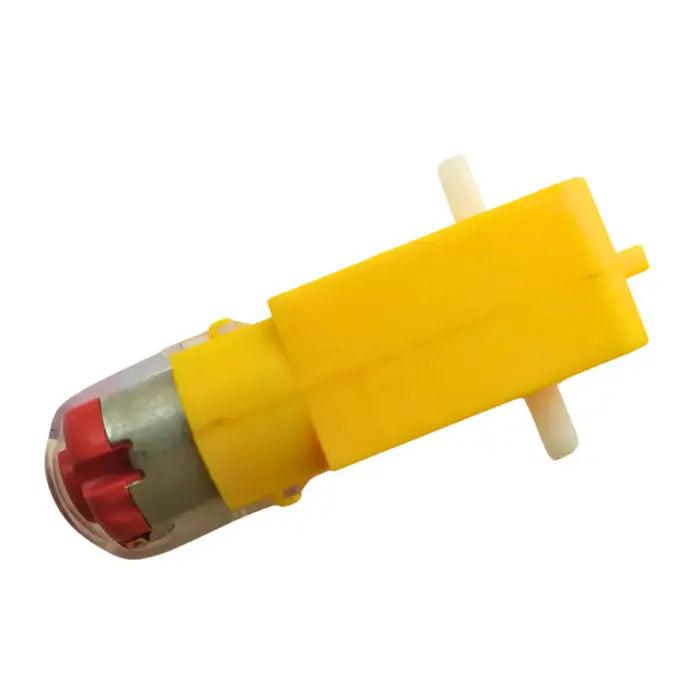

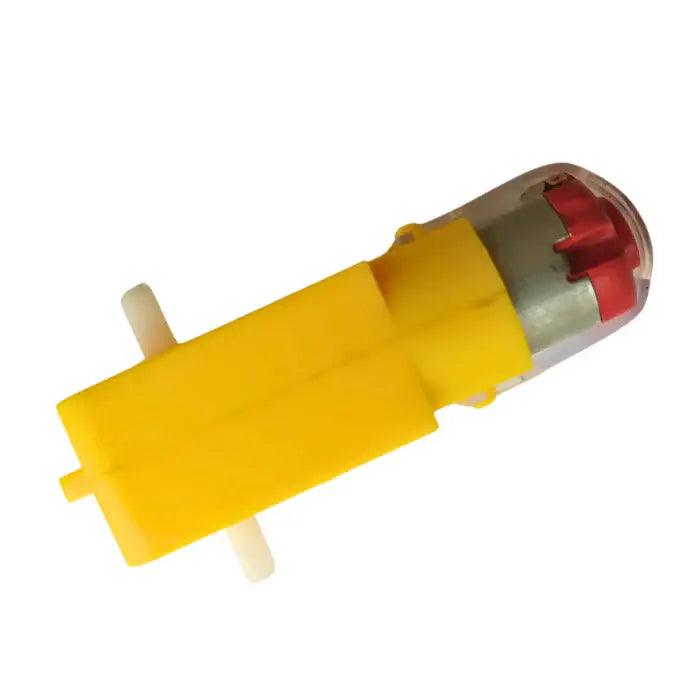

300 RPM Dual Shaft BO Motor-Straight

The Robocraze 300 RPM Dual Shaft Straight BO Motor is a high-quality and lightweight motor designed for DIY robotics enthusiasts. This motor is the perfect solution for various robotics applications, including obstacle-avoiding robots, line follower robots, 2WD and 4WD smart robot cars, and more. This robotics motor operates efficiently with an operating voltage range of 3V to 12V which is...
Rs. 79.00
Rs. 99.00 Rs. 79.00
Save Rs. 20
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Motor Type: Dual Shaft BO Motor
Speed: 300 RPM
Rated Torque: 0.35 kg·cm
No-Load Current: 40–180 mA
Shaft Diameter: 5.5 mm (Double D-type)
Shaft Length: 8.5 mm
Operating Voltage: 3–12 V DC
Color: Yellow
Weight: 30 g

Additional Resources

300 RPM Dual Shaft BO Motor-Straight.PDF

FAQ

1: What is a 300 RPM Dual Shaft BO Motor – Straight?

It is a compact DC geared motor with dual output shafts and a straight body design, delivering a speed of 300 RPM with moderate torque, suitable for robotics, automation, and DIY projects.

2: What is the operating voltage range of this motor?

The motor typically operates within 3–12 V DC, with a rated voltage commonly around 9 V, making it compatible with standard battery and power supply systems.

3: What are the advantages of a dual shaft design?

Dual shafts allow mounting of wheels, pulleys, or gears on both ends, enabling synchronous motion or differential drive configurations in robots and mechanical systems.

4: What is the output torque and current rating of the motor?

The motor provides moderate torque (often around 0.35–0.5 kg·cm depending on the model) and has a no-load current range of 40–180 mA, depending on operating conditions.

5: What are common applications for a 300 RPM Dual Shaft BO Motor – Straight?

It is ideal for small robots, automation systems, motorized models, conveyor mechanisms, and any project requiring moderate speed, dual-shaft flexibility, and compact design.

View full product details

The Robocraze 300 RPM Dual Shaft Straight BO Motor is a high-quality and lightweight motor designed for DIY robotics enthusiasts. This motor is the perfect solution for various robotics applications, including obstacle-avoiding robots, line follower robots, 2WD and 4WD smart robot cars, and more.

This robotics motor operates efficiently with an operating voltage range of 3V to 12V which is versatile for different power supply options. It features a low-density, low-inertia design with a relatively low coefficient of friction, ensuring smooth and efficient performance.

One of the standout features of this 300 RPM BO gear motor is its double D-type shaft, which allows easy coupling with matching wheels, providing stability and optimized design for your robotic applications.

The Dual Shaft BO Motor Straight offers a cost-effective and reliable solution for your projects.

Features:

  • Cost-effectiveness of the injection-molding process.
  • Elimination of machining operations.
  • Low density: lightweight, low inertia.
  • Uniformity of parts.
  • Capability to absorb shock and vibration as a result of elastic compliance.
  • Ability to operate with minimum or no lubrication, due to inherent lubricity.
  • The relatively low coefficient of friction.
  • Corrosion-resistance; elimination of plating, or protective coatings.
  • The quietness of operation.
  • Tolerances are often less critical than for metal gears, due in part to their greater resilience.

Applications:

  • DIY robot
  • Line follower robot
  • 4wd smart robot car
