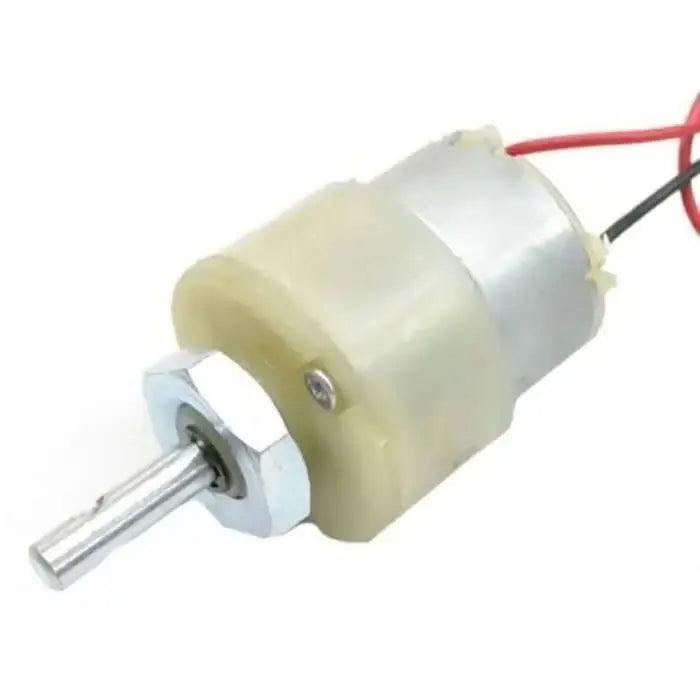

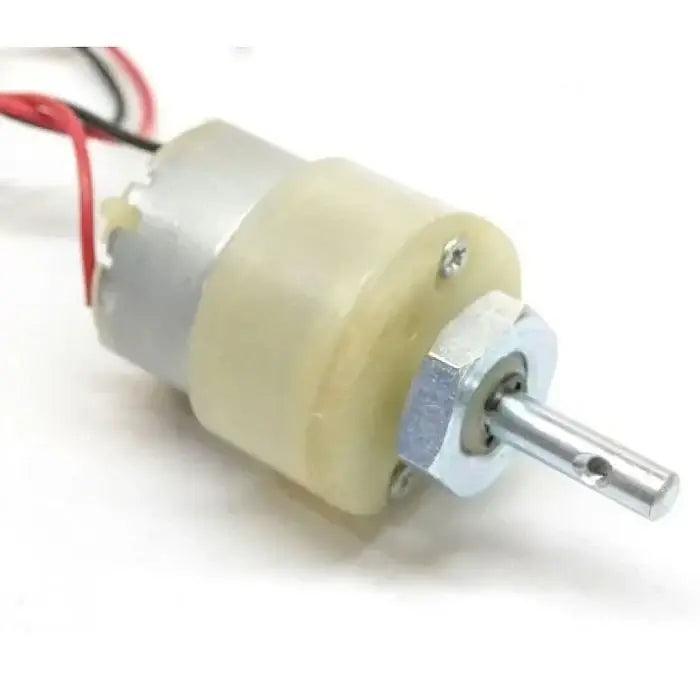

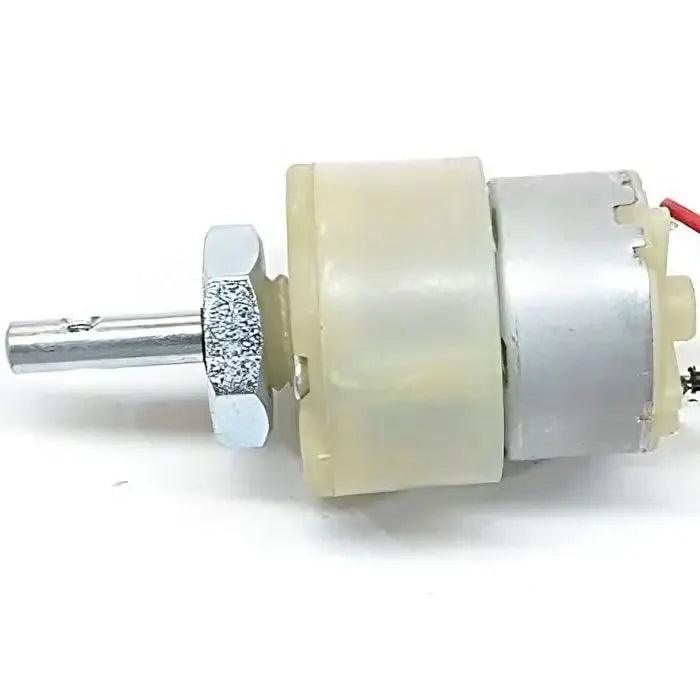

300 RPM Geared Motor

SKU: CM7V1YLD2K
This is the 300RPM 12V DC Motor, these motors are simple DC Motors featuring gears for the shaft for obtaining the optimal performance characteristics. They are known as Center Shaft DC Gear motors because their shaft extends through the centre of their gearbox assembly. These standard size DC motors are very easy to use. Also, you don’t have to spend a...
Rs. 189.00
Rs. 229.00 Rs. 189.00
Save Rs. 40
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Speed: 300 RPM output speed
Voltage: Operates on 12V DC
Torque: Provides 1.2 kg-cm torque
Phase: Designed as a single-phase motor
Shaft Diameter: Equipped with a 6 mm shaft
Weight: Approximately 125 grams
Frequency: Compatible with 50/60 Hz operation

Additional Resources

300 RPM Geared Motor.PDF

FAQ

1. What is a 300 RPM geared motor?

A 300 RPM geared motor is a DC motor combined with a gearbox that reduces speed and increases torque, delivering a maximum speed of 300 revolutions per minute at the output shaft.

2. What are the common applications of a 300 RPM geared motor?

It is widely used in robotics, line-following robots, smart cars, conveyor systems, and DIY automation projects where moderate speed and good torque are required.

3. What is the typical operating voltage of a 300 RPM geared motor?

Most 300 RPM geared motors operate in the range of 6V to 12V DC, depending on the model and design.

4. Why is a gearbox used in this motor?

The gearbox helps reduce the motor’s high speed and increases torque, making it suitable for applications that require more pulling power rather than high speed.

5. What are the advantages of using a 300 RPM geared motor?

It offers a good balance between speed and torque, low cost, easy availability, simple control using motor drivers, and reliable performance for beginner and advanced robotics projects.

View full product details

This is the 300RPM 12V DC Motor, these motors are simple DC Motors featuring gears for the shaft for obtaining the optimal performance characteristics. They are known as Center Shaft DC Gear motors because their shaft extends through the centre of their gearbox assembly.

These standard size DC motors are very easy to use. Also, you don’t have to spend a lot of money to control motors with an Ardunio or compatilble board. TheL298N H-bridge module with onboard voltage regulator motor driver can be used with this motor that has a voltage of between 5 and 35V DC.

This DC gear motor – 300RPM – 12Volts can be used in all-terrain robots and a variety of robotic applications. These motors have a 3 mm threaded drill hole in the middle of the shaft thus making it simple to connect it to the Wheels or any other mechanical assembly.

Nut and threads on the shaft to easily connect and internally threaded shaft for easily connecting it to the wheels. These DC Geared motors with robust metal/Plastic gearbox for heavy-duty applications,  and ideally suited for robotics and industrial applications.

Applications:

  • Toy cars
  • Windmill projects
  • Basic Electronics projects
