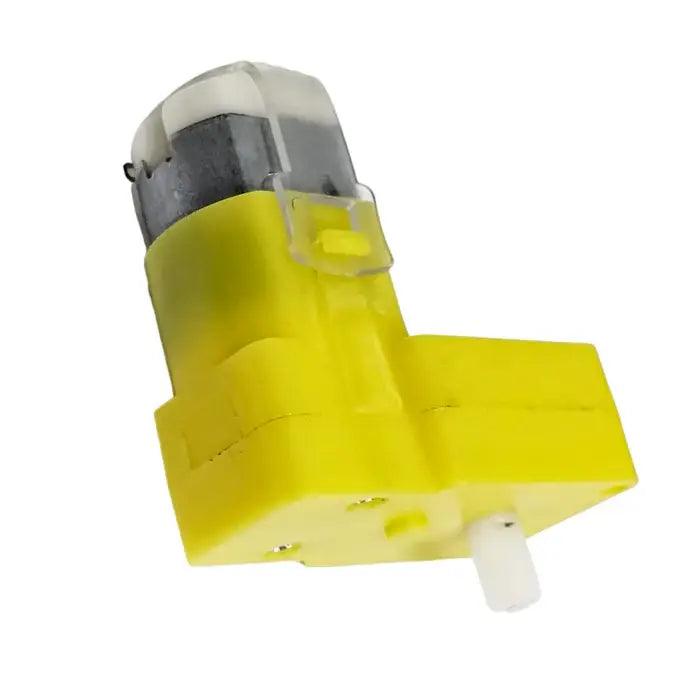

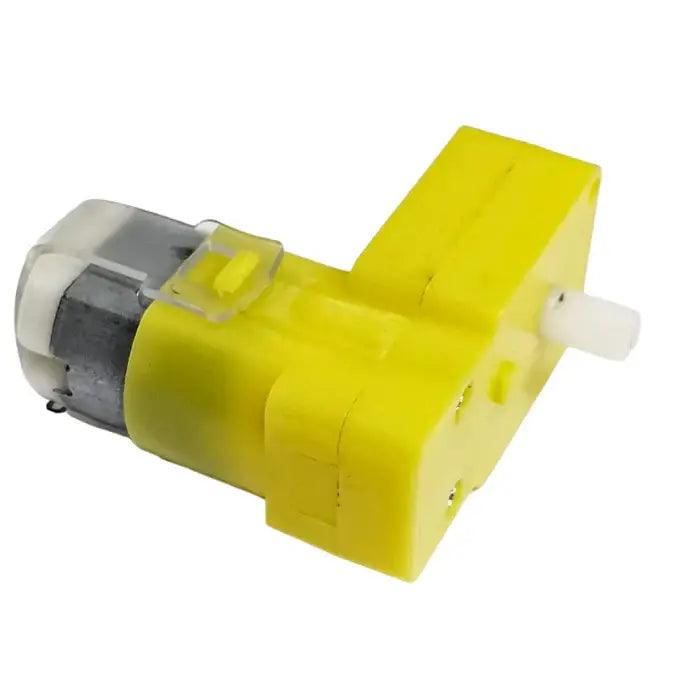

300 RPM L Shape Single Shaft BO Motor

SKU: MH4FY2P35A
This 300 RPM L-shaped single shaft BO motor delivers a balanced combination of torque and speed even at low operating voltages, making it a highly efficient choice for robotics applications. As a cost-effective geared DC motor, it serves as a practical alternative to more expensive metal gear motors. With an operating voltage range of 3–12V, it is well-suited for small...
Rs. 55.00
Rs. 69.00 Rs. 55.00
Save Rs. 14
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Motor Type: BO Geared DC Motor
Design: L-Shaped Configuration
Operating Voltage: 3V – 12V DC
Speed: 300 RPM

Additional Resources

300 RPM L Shape Single Shaft BO Motor.PDF

FAQ

1. What is the operating voltage of the 300 RPM BO motor?

The motor operates within a voltage range of 3V to 12V DC, making it compatible with common battery sources used in robotics projects.

2. What type of projects is this motor suitable for?

This motor is ideal for small to medium DIY robotics projects such as line follower robots, obstacle avoiding robots, and 2WD robot cars.

3. Does the motor provide good torque at low voltage?

Yes, one of the key advantages of this BO motor is that it provides good torque and stable speed even at lower voltages, making it efficient for battery-powered applications.

4. What type of shaft does this motor have?

It features a single shaft with a Double D-type design, which ensures a firm grip when attaching compatible wheels and prevents slipping.

5. Is this motor suitable for beginners and DIY enthusiasts?

Yes, the motor is low-cost, lightweight, and easy to install, making it an excellent choice for beginners, students, and hobbyists working on robotics projects.

View full product details

This 300 RPM L-shaped single shaft BO motor delivers a balanced combination of torque and speed even at low operating voltages, making it a highly efficient choice for robotics applications. As a cost-effective geared DC motor, it serves as a practical alternative to more expensive metal gear motors. With an operating voltage range of 3–12V, it is well-suited for small to medium-sized robot projects.

The motor features a compact shaft design compatible with standard wheels, allowing for an optimized and space-efficient setup. Its lightweight construction and built-in mounting holes make installation simple and convenient, especially for embedded or in-circuit applications. Ideal for DIY enthusiasts, this motor is affordable, easy to use, and widely used in mobile robot platforms.

To use this motor effectively in your DIY projects, you will typically need supporting components such as batteries, switches, connecting wires, soldering tools, and wheels.

Features

  • Operating Voltage: 3–12V DC
  • Rated Speed: 300 RPM (after gear reduction)
  • Rated Torque: 0.35 kg·cm
  • Shaft Length: 8.5 mm
  • Shaft Diameter: 5.5 mm (Double D-type)
  • No Load Current: 40–180 mA
  • Lightweight and Low Inertia: Easy to handle and suitable for compact designs
  • Shock & Vibration Absorption: Absorbs mechanical stress effectively
  • Minimal Lubrication Required: Operates with little to no lubrication
  • Low Friction: Ensures smooth and efficient performance
  • Corrosion Resistant: No additional coating required
  • Quiet Operation: Designed for low noise output

Applications

  • Smart robot cars
  • DIY train models
  • Obstacle avoiding robots
  • 2WD robotic platforms
