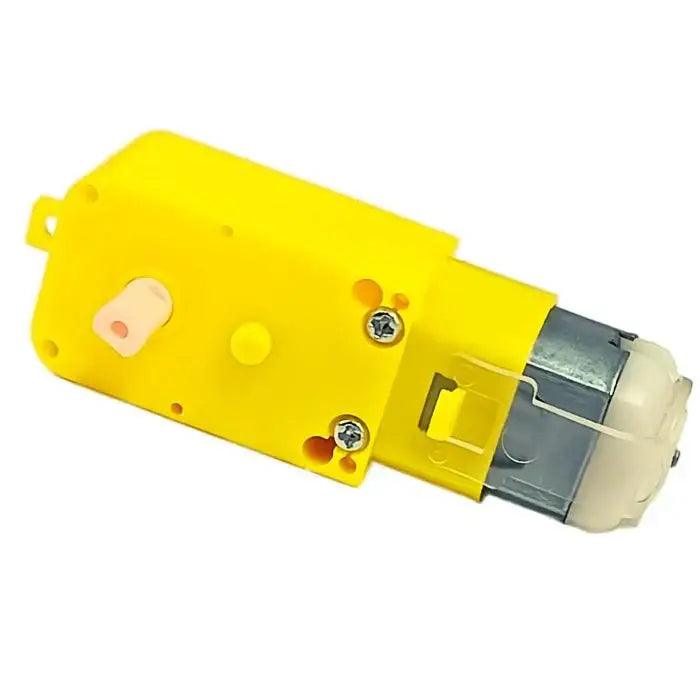

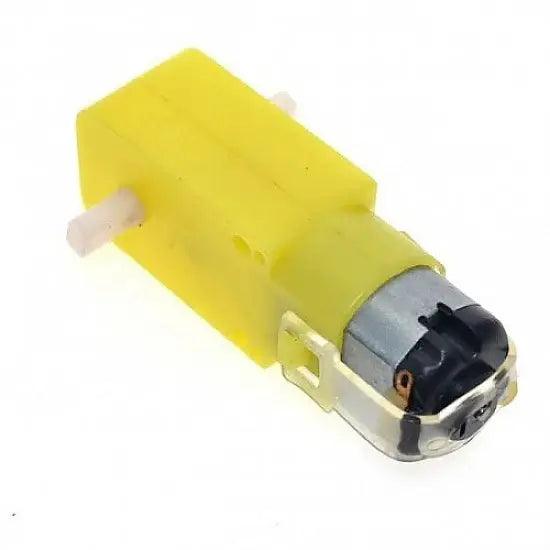

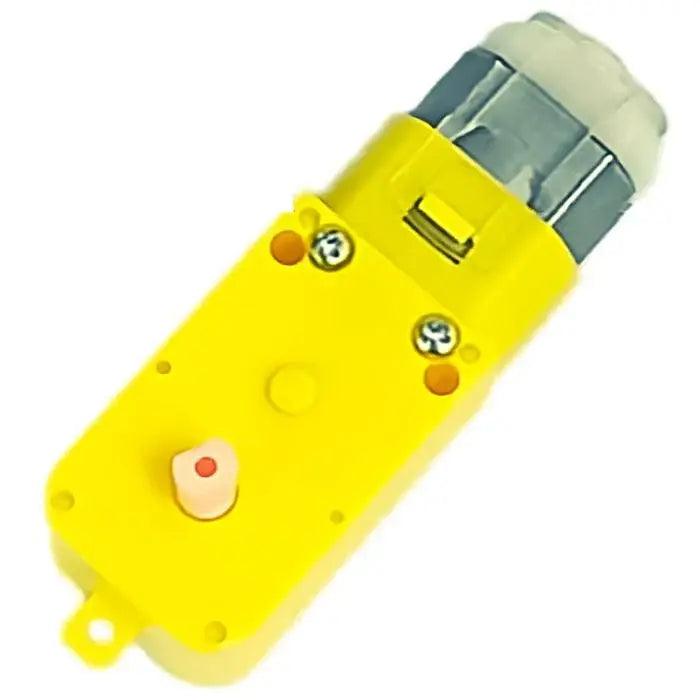

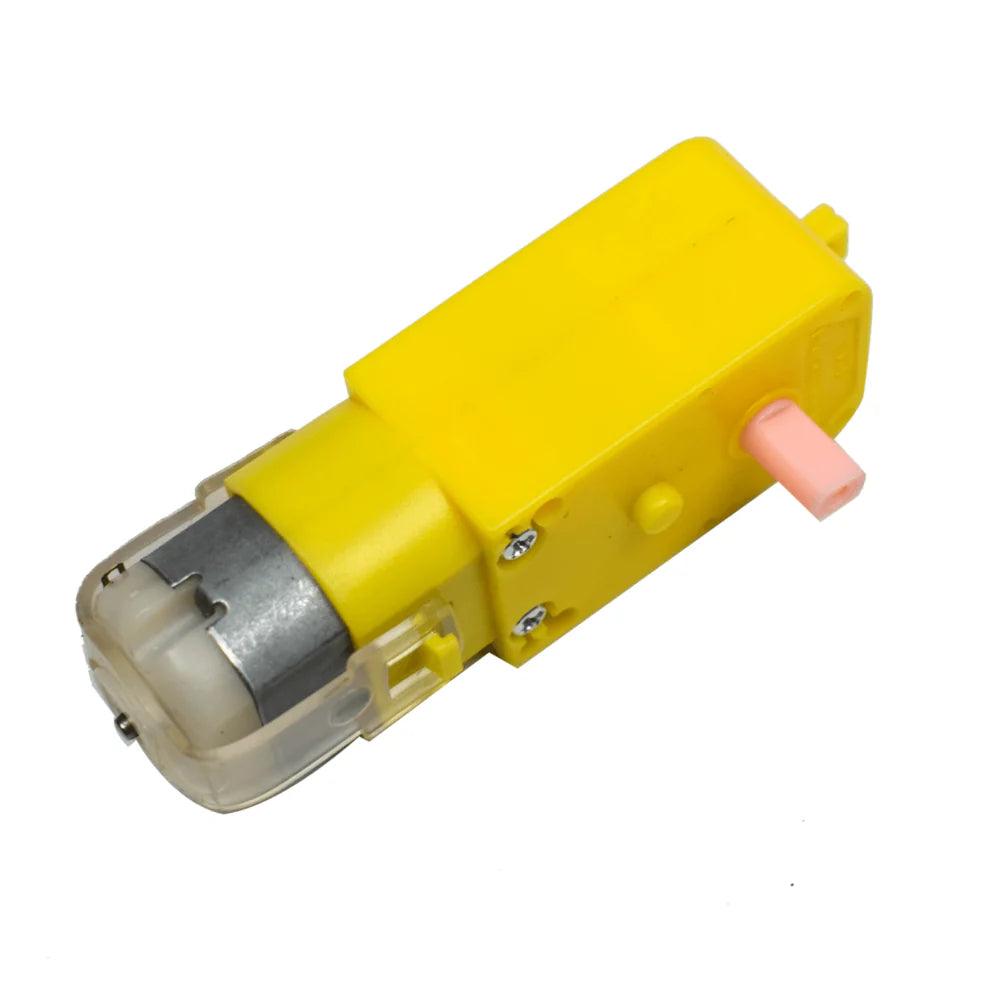

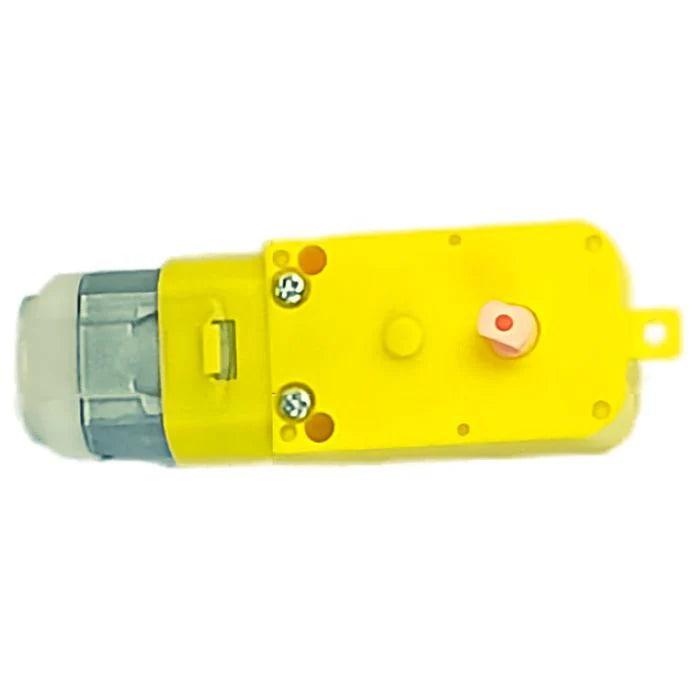

300 RPM Single Shaft BO Motor- Straight

SKU: M2KIDEL81Z
This is the 300 rpm straight single shaft BO motor, which gives good torque and rpm at lower operating voltages, It is the biggest advantage of these BO motors. Small shaft with matching wheels gives an optimized design for your application or robot. Mounting holes on the body & light weight makes it suitable for in-circuit placement. This BO motor...
Rs. 49.00
Rs. 59.00 Rs. 49.00
Save Rs. 10
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Type: Single Shaft BO Motor
Colour: Yellow
Speed: 300 RPM
Operating Voltage: 3V to 12V DC
Weight: 28 g
Dimensions (L × W × H): 65 × 23 × 27 mm

Additional Resources

300 RPM STRAIGHT SINGLE SHAFT

FAQ

1. What is a BO motor?

The Bo motor is a lightweight DC-geared motor that produces high torque and rpm at low voltages.

2. What is single shaft Bo motor?

Single shaft BO motor is a BO motor which has only one shaft to mount wheels or gear.

3. What is the operating voltage range for this motor?

The operating voltage range for this motor is 3-12V.

4. What type of applications is this motor suitable for?

This motor is ideal for DIY projects, small robots, and other applications requiring a reliable and low-cost geared DC motor.

5. What are the dimensions of the motor shaft?

The motor shaft has a length of 8.5mm and a diameter of 5.5mm (Double D-type).

View full product details

This is the 300 rpm straight single shaft BO motor, which gives good torque and rpm at lower operating voltages, It is the biggest advantage of these BO motors. Small shaft with matching wheels gives an optimized design for your application or robot. Mounting holes on the body & light weight makes it suitable for in-circuit placement.

This BO motor is the low-cost geared DC Motor. It is an alternative to our metal gear DC motors. It comes with an operating voltage of 3-12V and is perfect for building small and medium robots. This BO motor is ideal for DIY enthusiasts. This motor set is inexpensive, small, easy to install, and ideally suited for use in a mobile robot car

  • Cost-effectiveness of the injection-molding process.
  • Elimination of machining operations.
  • Low density: lightweight, low inertia.
  • Uniformity of parts.
  • Capability to absorb shock and vibration as a result of elastic compliance.
  • Ability to operate with minimum or no lubrication, due to inherent lubricity.
