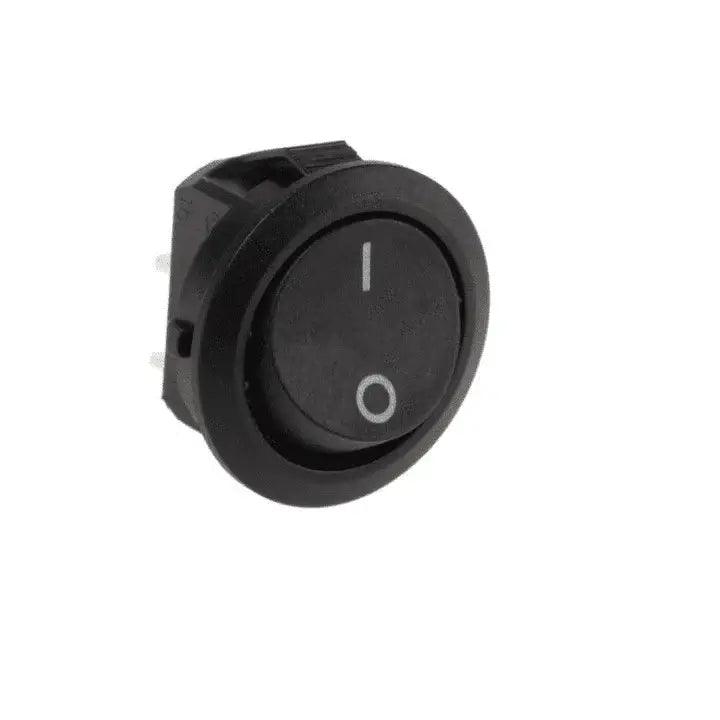

3A 250V AC SPST ON-OFF Round Rocker Switch

SKU: 5QC6IK7S3D
This is a basic SPST (Single Pole Single Throw) On/Off rocker switch designed for a variety of electronic projects. It features a convenient snap-in design, allowing it to be easily mounted without the need for screws. With its simple 2-pin configuration, installation is straightforward—just cut one of the power wires and connect both ends to the switch terminals. The KCD1-108...
Rs. 29.00
Rs. 39.00 Rs. 29.00
Save Rs. 10
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Electrical Rating: Up to 3A at 250V AC
Switching Mode: ON–OFF
Switch Type: SPST
Actuator Shape: Round
Panel Cut-Out Size: 15 × 13 mm (Diameter × Height)
Color: Black
Material: Plastic and metal
Switching Life: 50,000 to 100,000 cycles
Contact Resistance: ≤ 50 mΩ
Insulation Resistance: ≥ 100 MΩ
Withstand Voltage: 1500V AC
Dimensions: 16.3 × 15 mm
Weight: 3 grams

Additional Resources

3A 250V AC SPST ON-OFF Round Rocker Switch.PDF

FAQ

1. What is a 3A 250V AC SPST rocker switch?

It is a Single Pole Single Throw (SPST) rocker switch designed to control a single circuit with simple ON and OFF functionality, rated for up to 3A current at 250V AC.

2. How does this rocker switch operate?

The switch has two stable positions—ON and OFF. When switched ON, it completes the circuit and allows current to flow; when switched OFF, it breaks the circuit and stops the flow.

3. What are the common applications of this switch?

This switch is commonly used in:

  • Electronics and DIY projects
  • Household appliances
  • Power control circuits
  • Robotics and automation systems
  • Lighting control

4. What are the key features of this rocker switch?

  • Round actuator design
  • Snap-in panel mounting
  • Easy ON/OFF operation
  • Durable construction with long switching life
  • Compact and user-friendly design

5. What should be considered before using this switch?

Ensure the operating voltage and current do not exceed 3A at 250V AC. Proper installation, insulation, and secure connections are important for safe and reliable operation.

View full product details

This is a basic SPST (Single Pole Single Throw) On/Off rocker switch designed for a variety of electronic projects. It features a convenient snap-in design, allowing it to be easily mounted without the need for screws. With its simple 2-pin configuration, installation is straightforward—just cut one of the power wires and connect both ends to the switch terminals.

The KCD1-108 On/Off Rocker Switch (3A, 250V AC) is ideal for controlling power in electronic circuits, robotics, and other general-purpose applications. It offers a reliable switching mechanism with two stable positions—ON and OFF—and remains in the selected position until toggled.

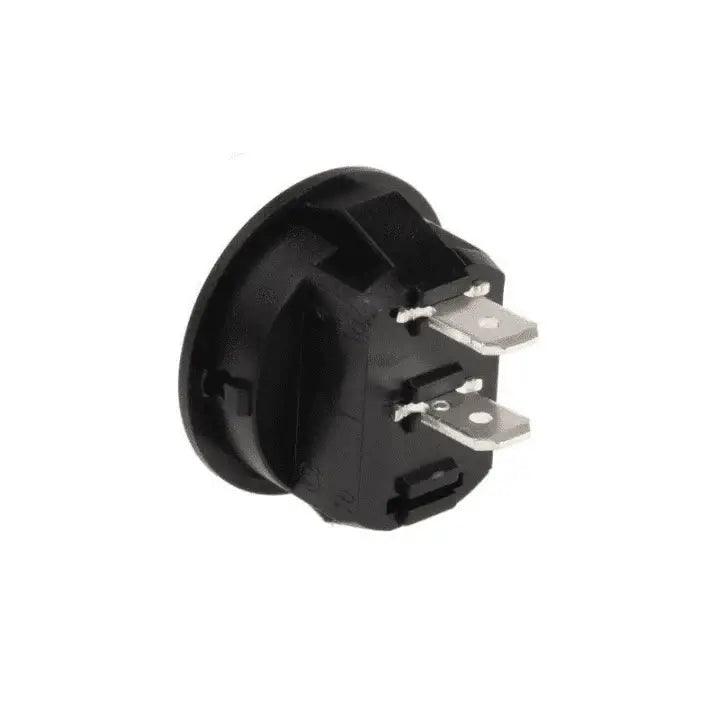

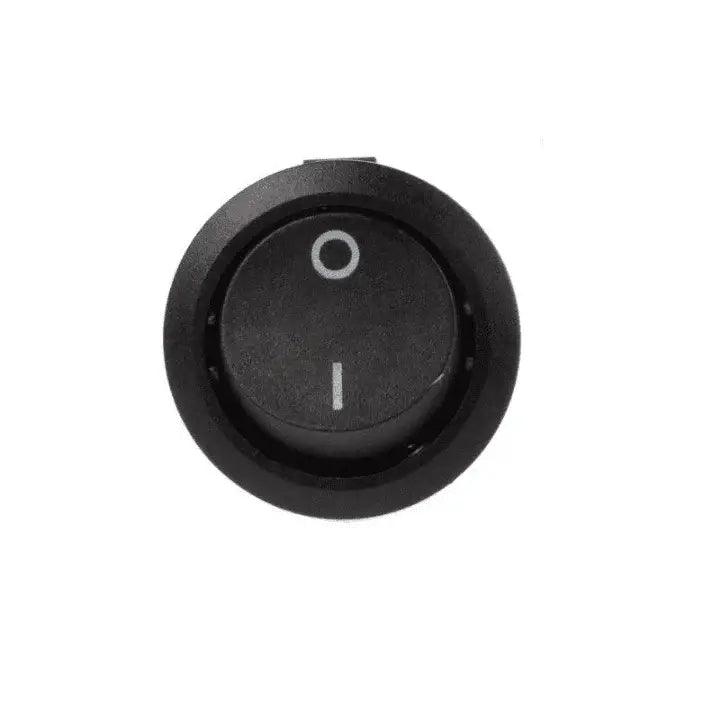

Equipped with two sturdy rear terminals, the switch allows easy soldering and secure connections. The built-in mounting clips on the top and bottom ensure a firm fit in panels or enclosures without additional hardware. Clear ON/OFF markings make it easy to identify the current state during operation.

This rocker switch is well-suited for controlling DC motors in robotics, automotive applications such as cars and motorcycles, industrial machinery, water dispensers, and more. With a rated capacity of 3A at 250V AC, it is suitable for most standard applications.

Switching Mode: ON–OFF
Structure: SPST
