Specifications:

Brand: EVERLIGHT
Type: Infrared Transmitter
Forward voltage range: 2.8V to 5V
Reverse current: up to 50 µA
Continuous forward current: 20 mA
Peak forward current: 75 mA
Maximum power dissipation: 100 mW
LED size: 3 mm diameter
Number of pins: 2
Operating temperature range: -40°C to +85°C
Mounting style: Through-hole installation

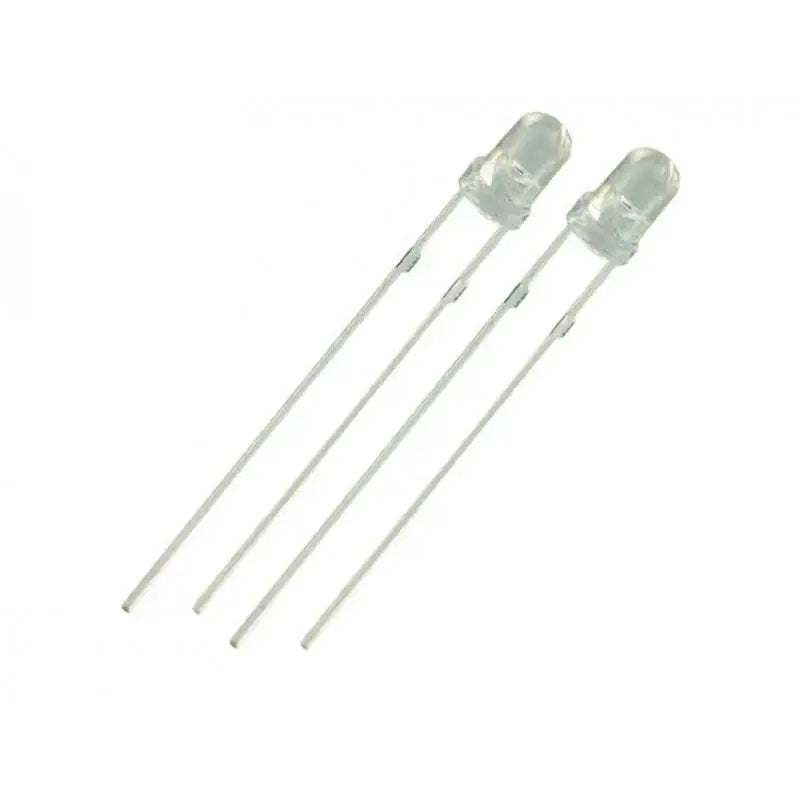

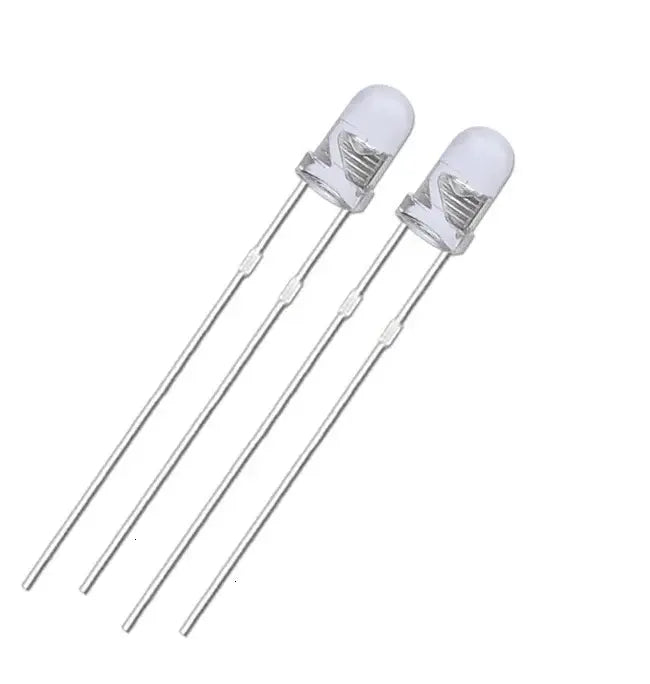

1. What is a 3mm IR Transmitter LED?

A 3mm IR Transmitter LED is a small electronic component that emits infrared (IR) light when current flows through it. The emitted light is invisible to the human eye and is commonly used for wireless signal transmission.

2. Where is a 3mm IR Transmitter LED used?

It is widely used in applications such as TV remote controls, IR communication systems, obstacle detection sensors, line-following robots, and security systems.

3. How does a 3mm IR Transmitter LED work?

When a forward voltage is applied across the LED, it emits infrared radiation. This IR light can then be detected by a receiver such as a photodiode or an IR module like TSOP1738, enabling communication between devices.

4. What is the typical operating voltage of a 3mm IR Transmitter LED?

A 3mm IR LED typically operates at a forward voltage of around 1.2V to 1.5V, with a forward current of about 10–20 mA, depending on the model and manufacturer.

5. What is the difference between a 3mm IR Transmitter LED and a normal LED?

A 3mm IR Transmitter LED emits infrared light (invisible), whereas a normal LED emits visible light. IR LEDs are mainly used for communication and sensing, while regular LEDs are used for indication and lighting.
