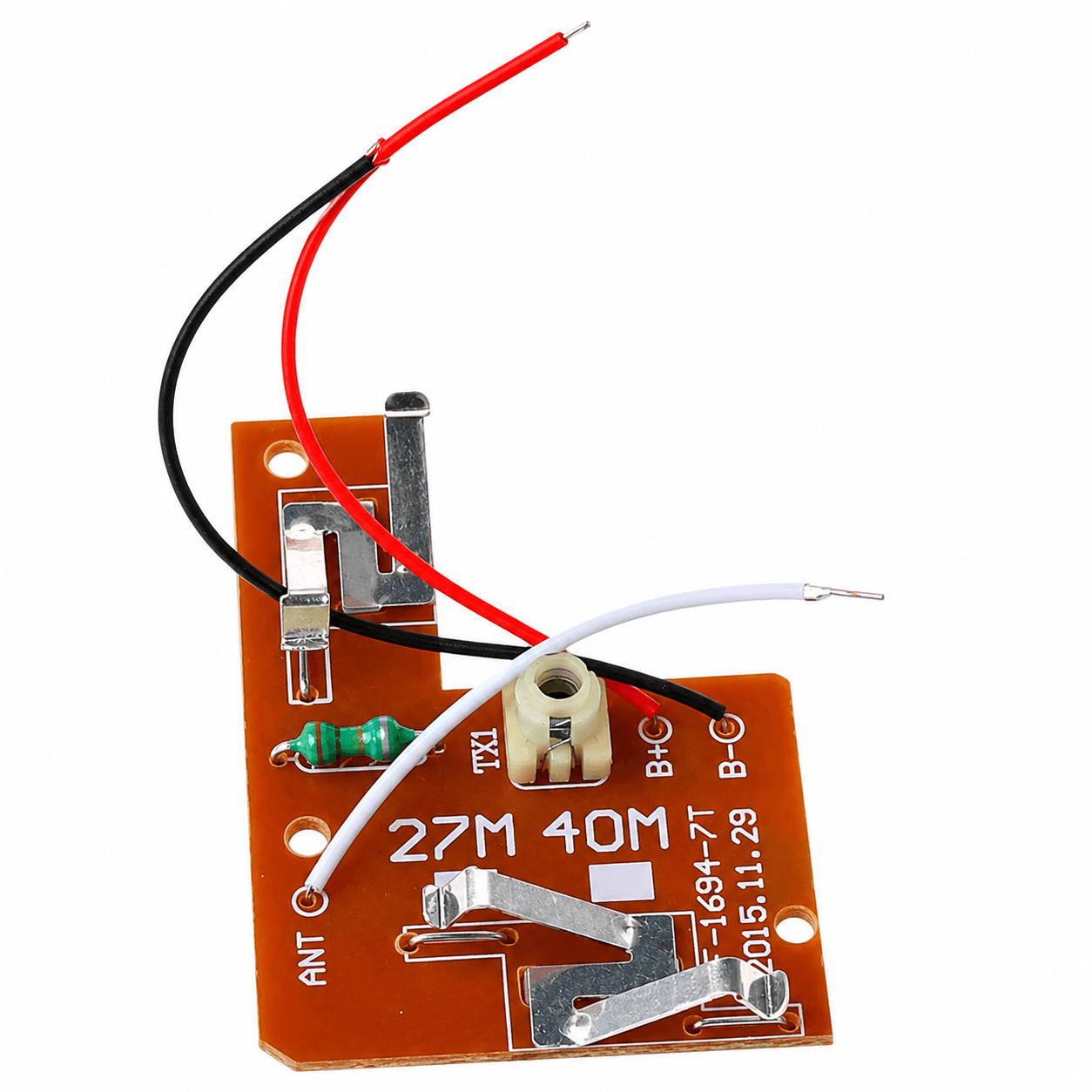

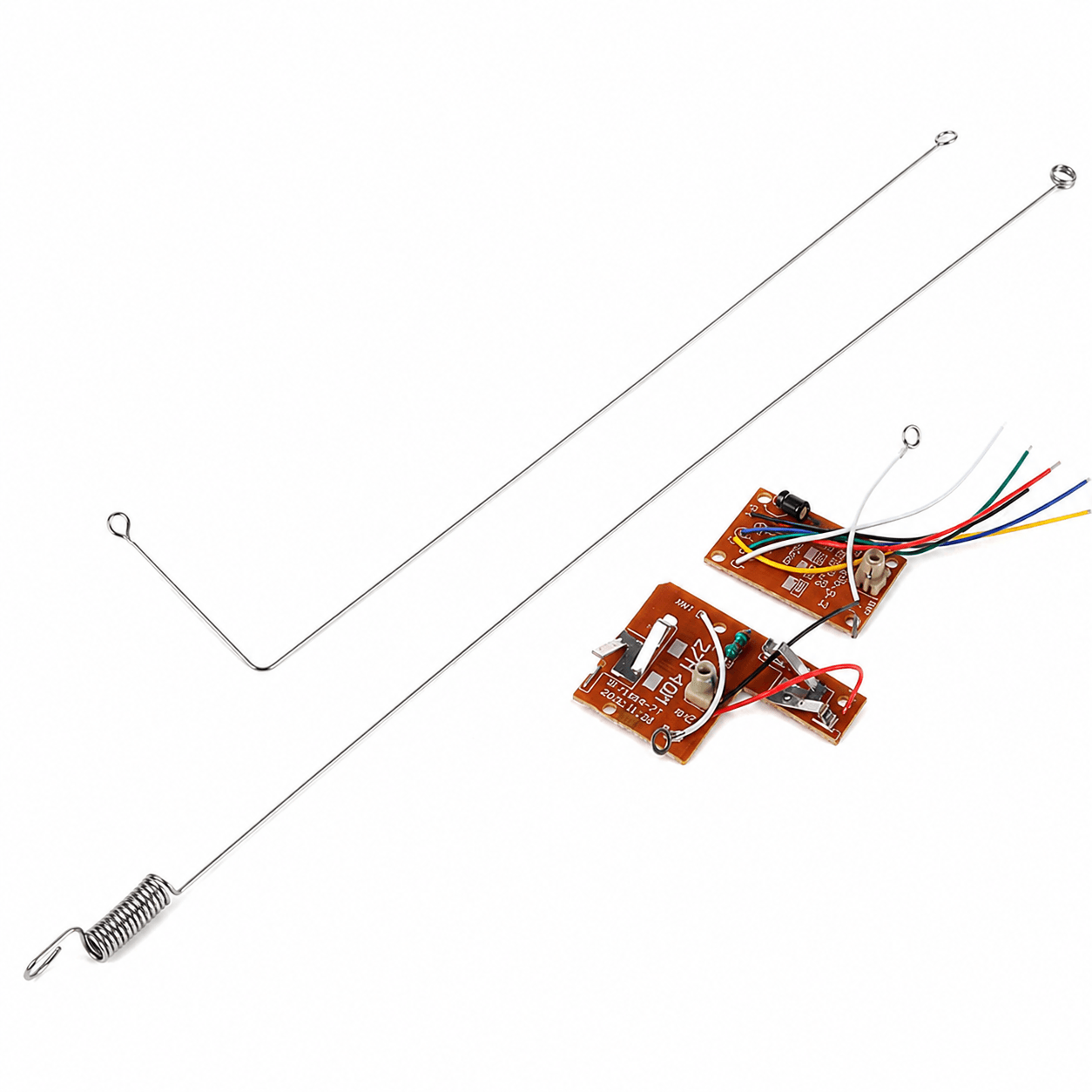

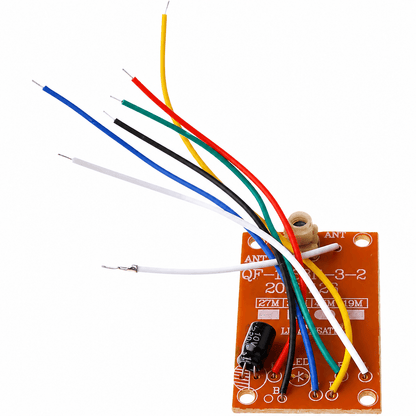

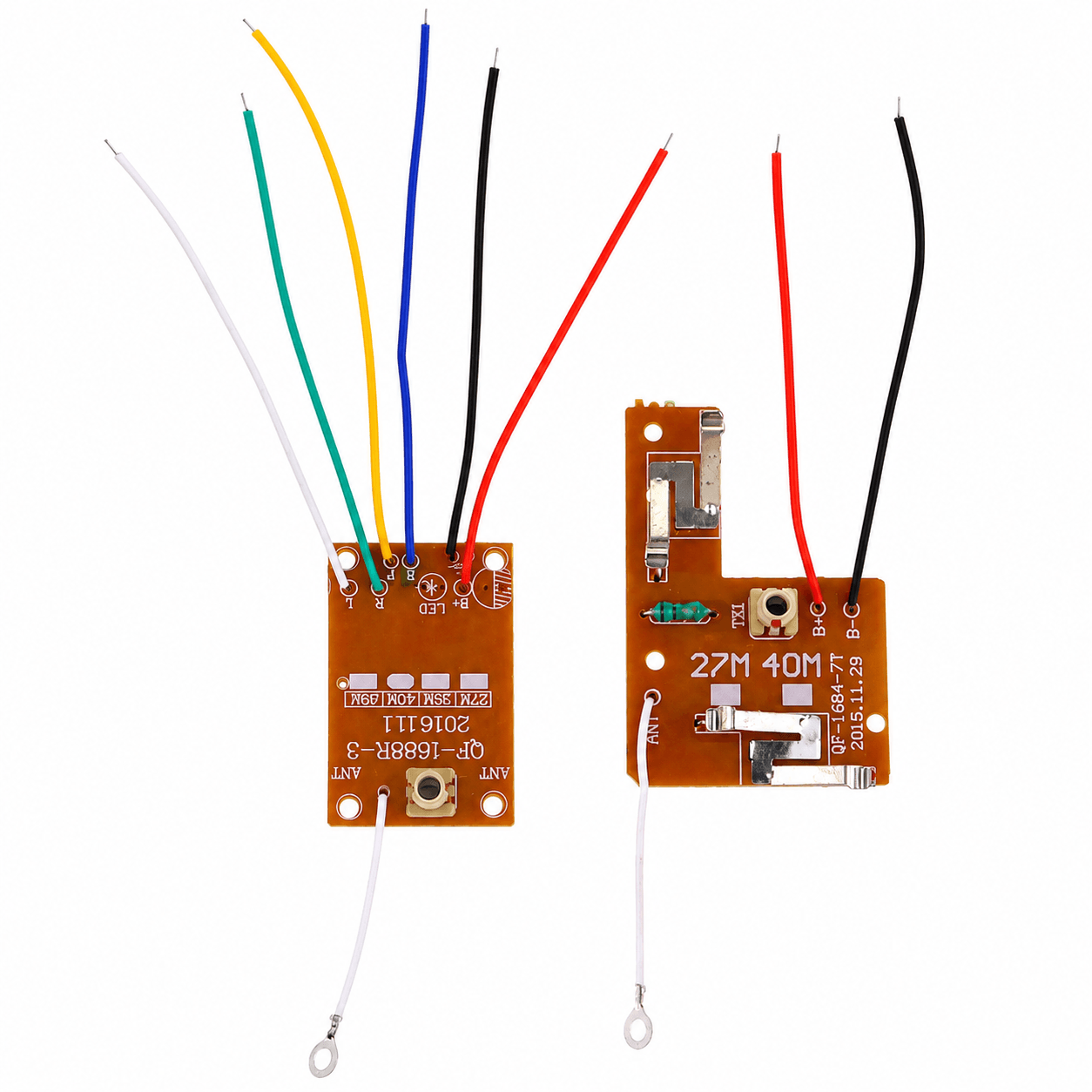

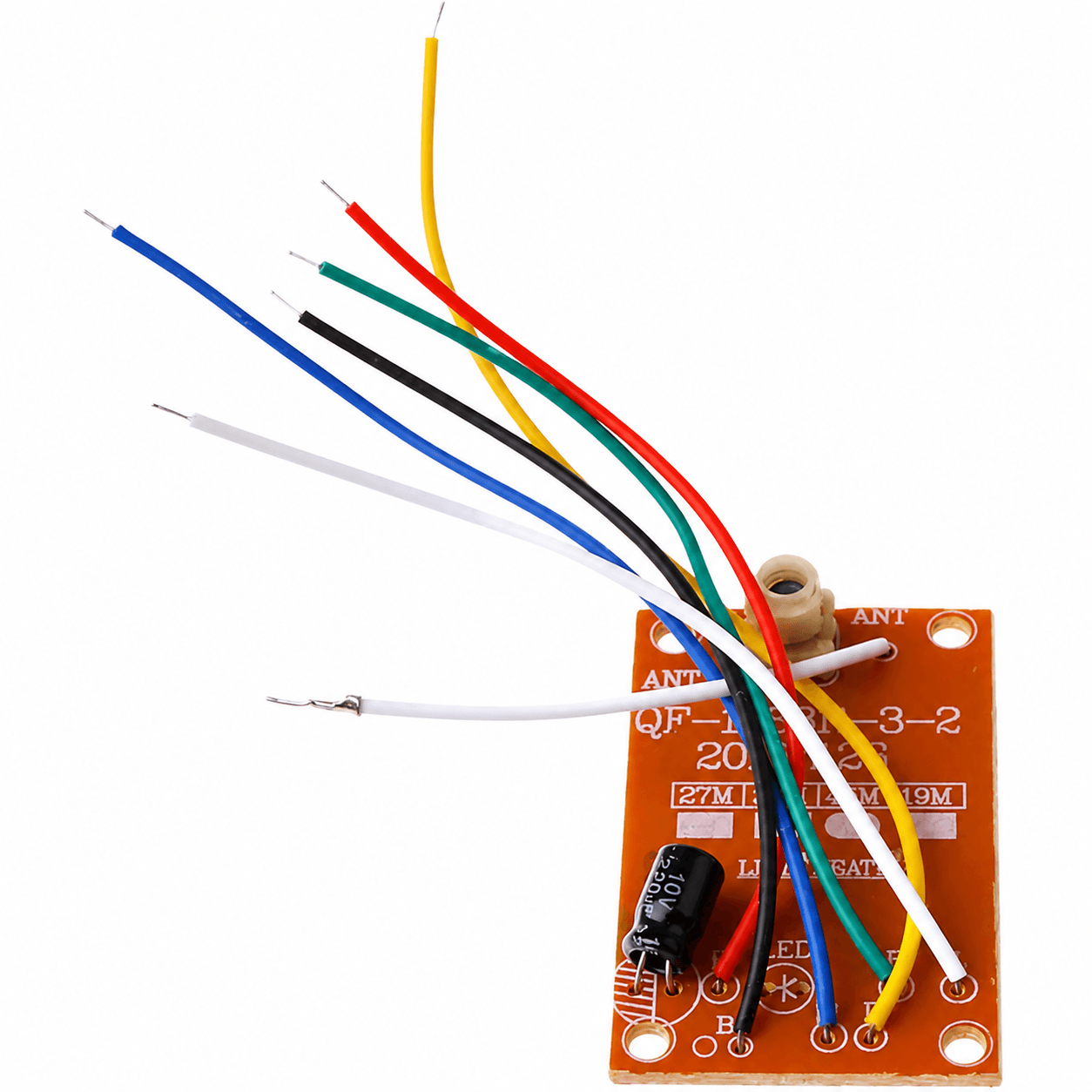

The 4 Channel Remote Control Transmitter Receiver Circuit is a wireless RF control module designed to remotely operate up to four independent electrical devices or functions. The system consists of a handheld RF transmitter and a matching receiver module, allowing users to control loads wirelessly over a considerable distance. It is widely used in home automation, robotics, industrial control systems, wireless switching, security systems, lighting control, motor control, and various DIY electronics projects.

The transmitter uses radio frequency (RF) communication to send encoded control signals to the receiver module. Upon receiving a valid signal, the receiver decodes the transmitted data and activates the corresponding output channel. Each of the four channels can be controlled independently, making the module suitable for operating multiple relays, LEDs, motors, pumps, solenoids, or other electronic devices from a single remote controller.

Most versions of this module operate in the license-free 433MHz ISM frequency band and utilize reliable RF encoder/decoder ICs or learning-code technology for stable wireless communication. Depending on the module version, the receiver may support momentary, toggle (latching), or interlock operating modes. The receiver board typically includes onboard relay outputs, status LEDs, and an antenna for improved communication range, while the transmitter is powered by a compact battery for convenient portable operation.

Designed for easy integration, the 4 Channel Remote Control Transmitter Receiver Circuit requires minimal wiring and can be connected directly to compatible electronic circuits or relay-controlled loads. Its long wireless operating range, low power consumption, stable RF communication, and simple installation make it an excellent solution for students, hobbyists, engineers, automation developers, and professionals building wireless control systems.

Key Features

• Four independent wireless control channels
• Complete transmitter and receiver set
• Operates using RF wireless communication
• Commonly operates at 433MHz ISM frequency
• Long wireless operating range
• Reliable digital signal transmission
• Independent control of four outputs
• Compact handheld remote transmitter
• Receiver with onboard decoding circuitry
• Supports multiple operating modes depending on version
• Low power consumption
• Quick response time
• Easy pairing and operation
• Simple installation and wiring
• Suitable for relay control applications
• Compatible with home automation systems
• Ideal for robotics and automation projects
• Suitable for wireless lighting control
• Can control motors, pumps, and other electrical devices
• Stable and reliable communication
• Compact PCB design
• Ideal for DIY and industrial control applications
