Tactile Push Button Switch 6X6X12mm

SKU: WI3ANOBAEV
★★★★ ★ ★
4.3 (42 reviews)
The 6×6×12mm Tactile Push Button Switch is a compact momentary contact switch designed for reliable user input in electronic circuits. It operates as a normally open (NO) switch, meaning the circuit is completed only when the button is pressed and immediately breaks when released. With its standard 6mm × 6mm footprint and 12mm height, this switch is ideal for PCB...
Rs. 5.00
Rs. 11.00 Rs. 5.00
Save Rs. 6 Incl. GST (No Hidden Charges)
Sold out
Tax included. Shipping calculated at checkout.
COD Available
Easy Return
Quality Assured
12 people are viewing this right now
Secure Checkout With
Bulk Orders Available
Special Pricing for Schools, Colleges & Businesses
Contact Us
Free Delivery for all orders above ₹999
Shop for ₹999 or more and get FREE delivery
across India.
FREE
View full product details
Same Day Dispatch Order before 2PM
Pan India Delivery Shipping in 24-48H
Secure Packaging Safe & Damage Free
Dedicated Support Expert Assistance

The 6×6×12mm Tactile Push Button Switch is a compact momentary contact switch designed for reliable user input in electronic circuits. It operates as a normally open (NO) switch, meaning the circuit is completed only when the button is pressed and immediately breaks when released.

With its standard 6mm × 6mm footprint and 12mm height, this switch is ideal for PCB mounting in applications where a taller actuator is required for better accessibility through panels or enclosures. It provides a crisp tactile feedback, ensuring accurate and responsive operation in consumer electronics, embedded systems, DIY projects, and industrial control interfaces.

Key Features

  • Standard 6×6mm PCB footprint with 12mm actuator height
  • Momentary ON (Normally Open) switching action
  • Strong tactile feedback for reliable operation
  • Suitable for PCB through-hole mounting
  • Long mechanical life for repeated usage
  • Ideal for panel-mounted or enclosure-based designs
  • Stable electrical performance with low contact resistance
  • Compatible with Arduino, IoT, and embedded systems

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Switch Type: Tactile Push Button (Momentary)
Operation: Normally Open (NO)

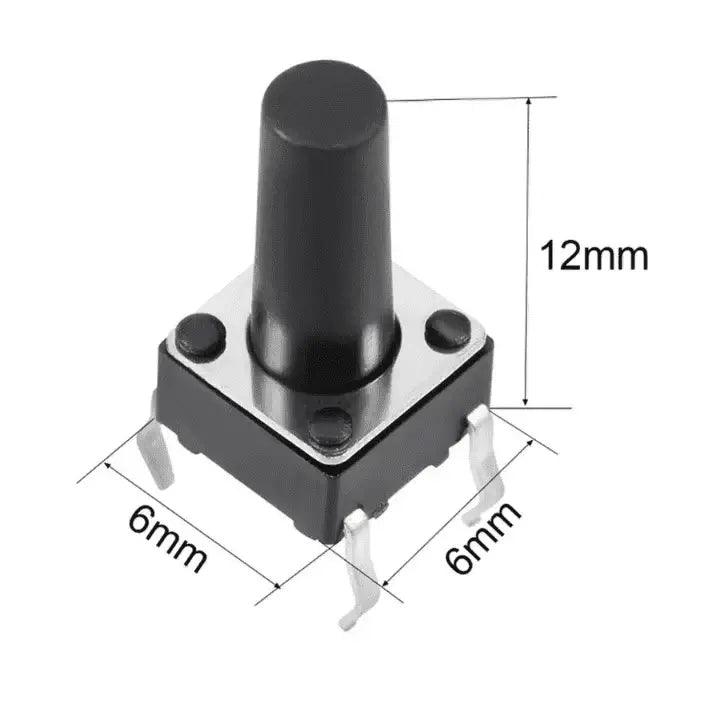

Dimensions: 6mm × 6mm × 12mm
Mounting Type: Through-hole PCB mount
Number of Pins: 4 (internally connected pairs)
Operating Voltage: 12V DC (typical)
Operating Current: 50mA max
Contact Resistance: ≤ 50 mΩ
Insulation Resistance: ≥ 100 MΩ
Actuation Force: 1.6N – 3.5N (approx.)
Travel Distance: ~0.25mm – 1.0mm
Mechanical Life: 100,000 – 300,000 cycles
Body Material: Thermoplastic (PA/Nylon)
Contact Material: Metal alloy

Additional Resources

Tactile Push Button.PDF

FAQ

1. What is a 4-pin long push button switch?

It is a momentary tactile switch with four pins, designed to complete a circuit only while being pressed, providing reliable ON/OFF control for electronic circuits.

2. How does this push button switch operate?

This switch is momentary (normally open), meaning the circuit is only closed while the button is pressed. Once released, it returns to its default OFF state.

3. Where can this switch be used?

It is suitable for:

  • Arduino, Raspberry Pi, and other microcontroller projects
  • DIY electronics kits
  • Control panels and embedded systems
  • Prototyping and testing circuits

4. What are the mounting options for this switch?

The switch features through-hole (THT) pins for stable and secure placement on PCBs, ensuring easy soldering and reliable connections.

5. What are the advantages of using this switch?

  • Long actuator for easy pressing
  • Provides crisp tactile feedback
  • Compact and durable design

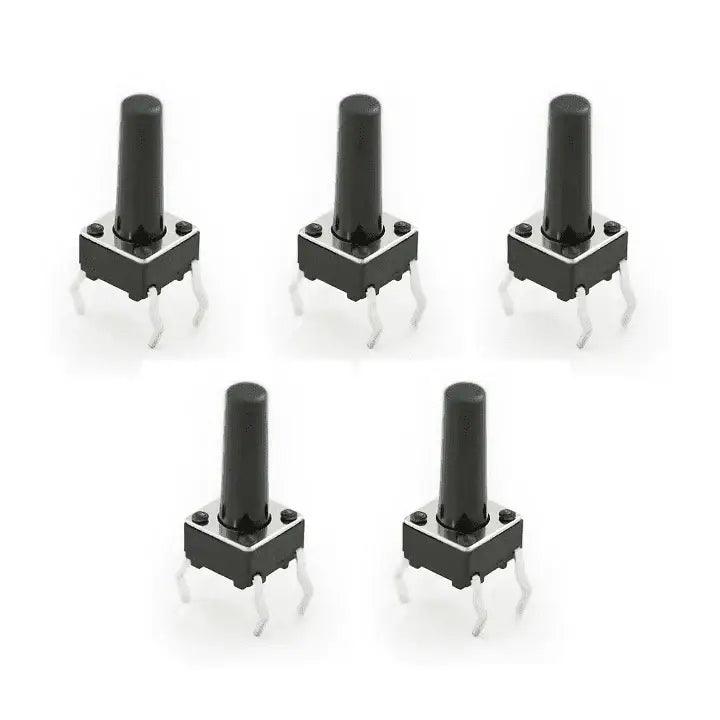

  • Pack of 5 for multiple projects or replacements
